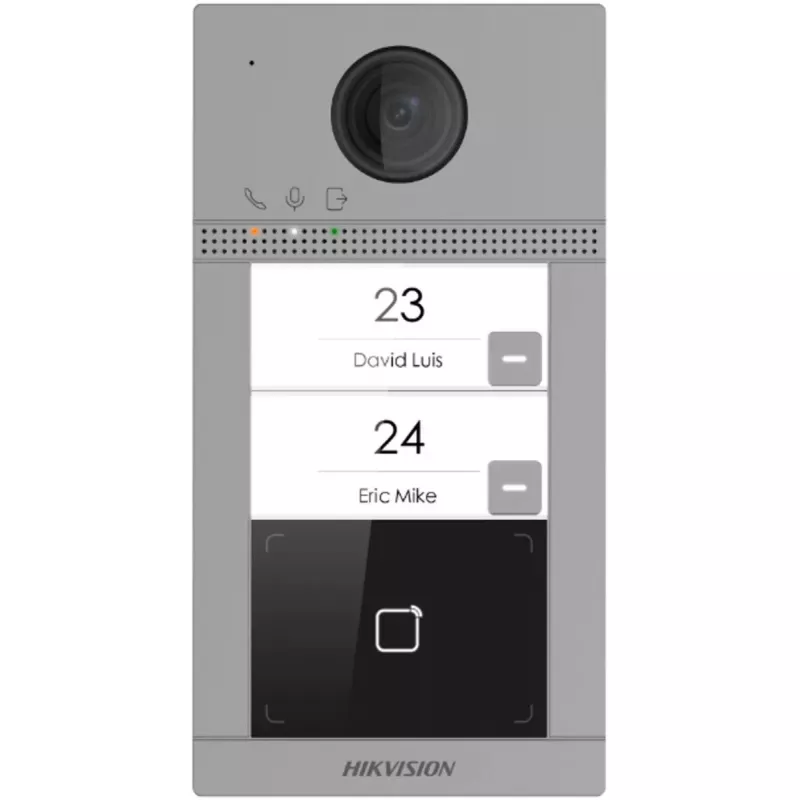

Videoporteiro Hikvision DS-KV8213-WME1(C) 2 MP cinzento

Hikvision DS-KV8213-WME1(C) 2 MP Grey is an IP video intercom panel designed for entry control in residential and small commercial environments. The unit captures video at a maximum resolution of 1920 x 1080 pixels (2 MP) and supports 1080p and 480p video modes. Integrated IR LEDs provide night vision up to approximately 3 meters. Built to withstand outdoor conditions, the device carries an IP65 ingress protection rating and IK08 impact resistance, and offers Fast Ethernet plus optional Wi‑Fi (802.11b/g/n) connectivity for integration with networked access and monitoring systems.

Advantages

The DS-KV8213-WME1(C) combines high-definition image capture with compact, durable construction suitable for exterior mounting. Its support for both wired Fast Ethernet and wireless 802.11b/g/n enables flexible installation where cabling options vary. Night vision enhances identification in low-light conditions while IP65 and IK08 ratings ensure reliable operation in outdoor weather and against mechanical impact. The device’s video modes and network compatibility allow straightforward integration with Hikvision IP intercom systems and common access control workflows.

Suitable for

• Residential apartment entry panels and multi-tenant buildings
• Suburban villas and single-family homes requiring video door communication
• Small office or retail entrance control points
• Locations where weather resistance and vandal resistance are important

Key specifications

• Image sensor: 2 MP resolution, maximum 1920 x 1080 pixels
• Supported video modes: 1080p and 480p
• Night vision: IR LEDs with effective range up to ~3 meters
• Ingress protection: IP65 (dust and water resistant)
• Impact resistance: IK08
• Network interfaces: Fast Ethernet (RJ‑45); wireless support 802.11b/g/n
• Form factor: Outdoor door station designed for flush-mount installation

How to use

Mount the Hikvision DS-KV8213-WME1(C) at a suitable height near the entry point and connect it to the building network via Fast Ethernet or configure the Wi‑Fi settings if using a wireless connection. Integrate the unit with compatible Hikvision IP indoor stations, NVRs or software platforms according to the system design. Configure video mode, network parameters, and any user accounts through the intercom’s management interface or central management software. Ensure night vision and exposure settings are adjusted for the specific mounting location to obtain clear identification images in low light.

Recommendations

For reliable outdoor performance, install the panel under a small protective overhang if possible and use shielded Ethernet cabling for PoE or wired connections. Regularly check seals and mounting hardware to maintain IP65 and IK08 protection. When integrating into multi-unit systems, plan network bandwidth and firmware updates to keep video streams and connectivity stable.
