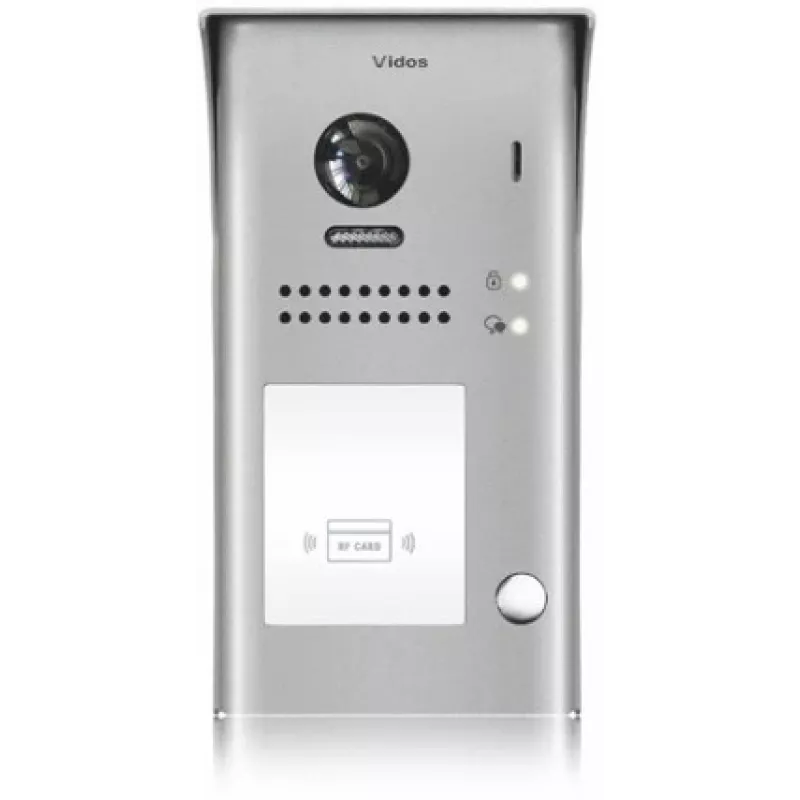

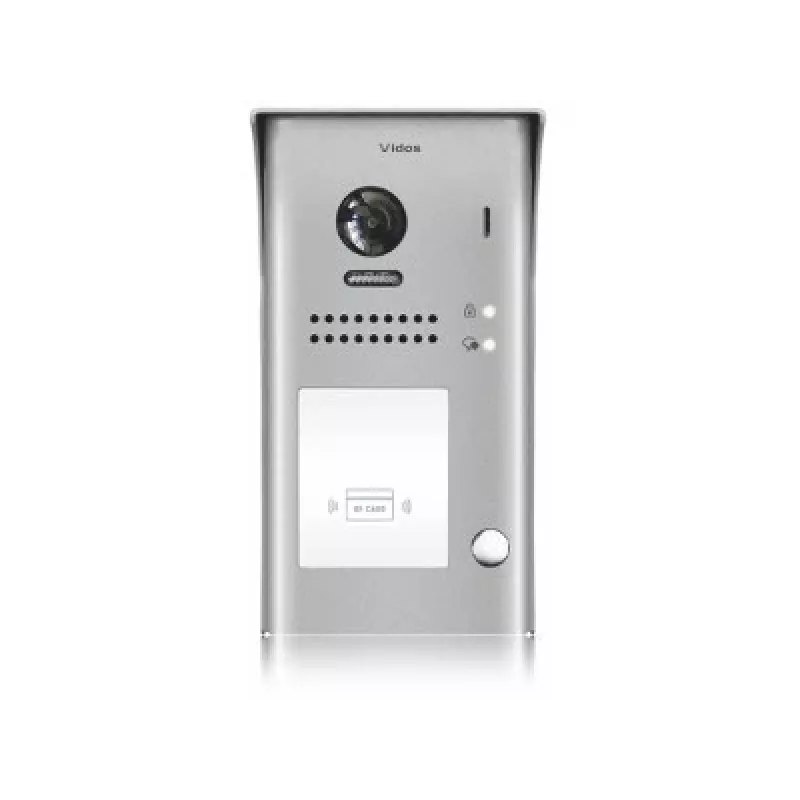

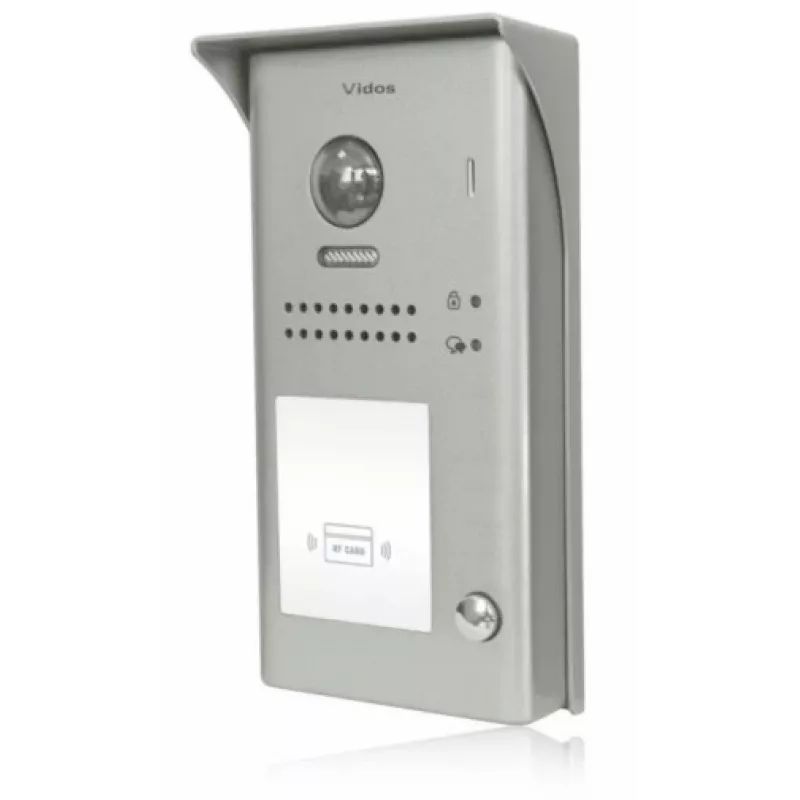

VIDOS DUO S1101A Posto de porta - 1 botão de chamada, prateado, montagem à superfície, 2 fios, IP65

The VIDOS DUO S1101A door station is a high-quality, surface-mount video door entry unit designed for the VIDOS DUO 2-wire system. Featuring a 1/3" CMOS camera with 1000 TVL resolution and a 110° horizontal viewing angle, it provides clear two-way audio communication and night vision via IR LEDs. The aluminum alloy front panel ensures durability, while the backlit nameplate and white LED illumination enhance usability. With IP65 rating, it is suitable for outdoor use in temperatures from -30°C to +50°C.

Advantages

Easy 2-wire non-polarized installation, robust metal housing, integrated relay for door release, and reliable performance in harsh weather conditions.

Suitable for

• Residential and commercial video door entry systems
• Outdoor installations requiring weatherproof design
• Integration with VIDOS DUO 2-wire intercom systems

Key specifications

• Camera: 1/3" CMOS, 1000 TVL, 110° horizontal angle
• Night vision: IR LEDs
• Illumination: White LED for nameplate
• Material: Aluminum alloy front panel
• Installation: Surface mount
• Call buttons: 1
• Door release: 1x relay (NO/NC), 1x 12V DC (max 300mA)

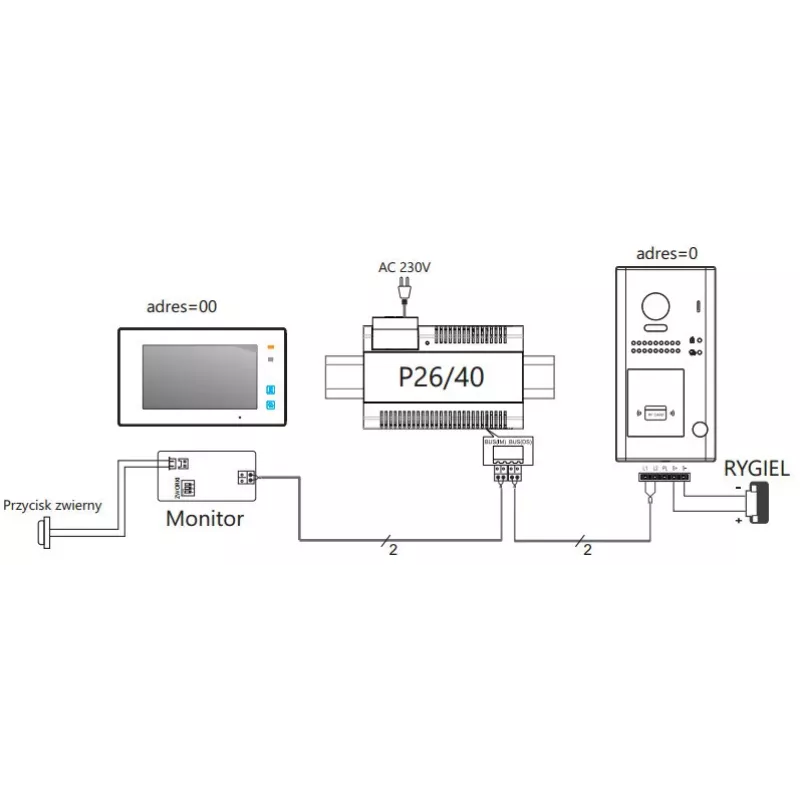

• Wiring: 2-wire non-polarized
• Power: DC 24V from VIDOS DUO system
• Protection: IP65
• Temperature: -30°C to +50°C
• Audio: Two-way duplex
• Backlight: Backlit nameplate
• Colour: Silver
• Housing material: Metal

Recommendations

For optimal performance, use with VIDOS DUO compatible indoor stations and power supplies. Ensure proper surface mounting for weather sealing.
