Vivolink VLHDMISP2X8 divisor de vídeo HDMI 8x HDMI

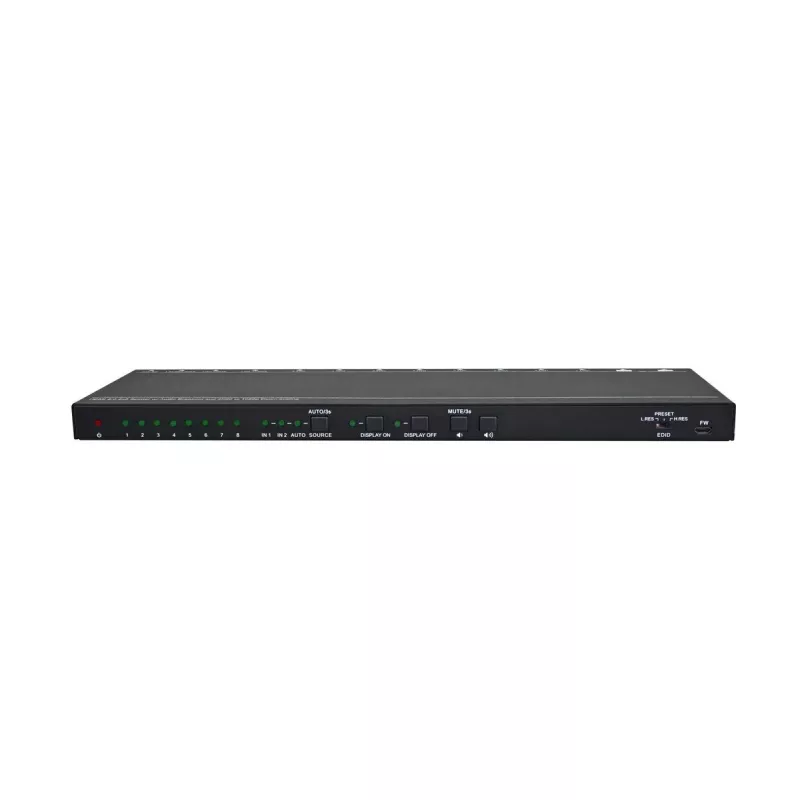

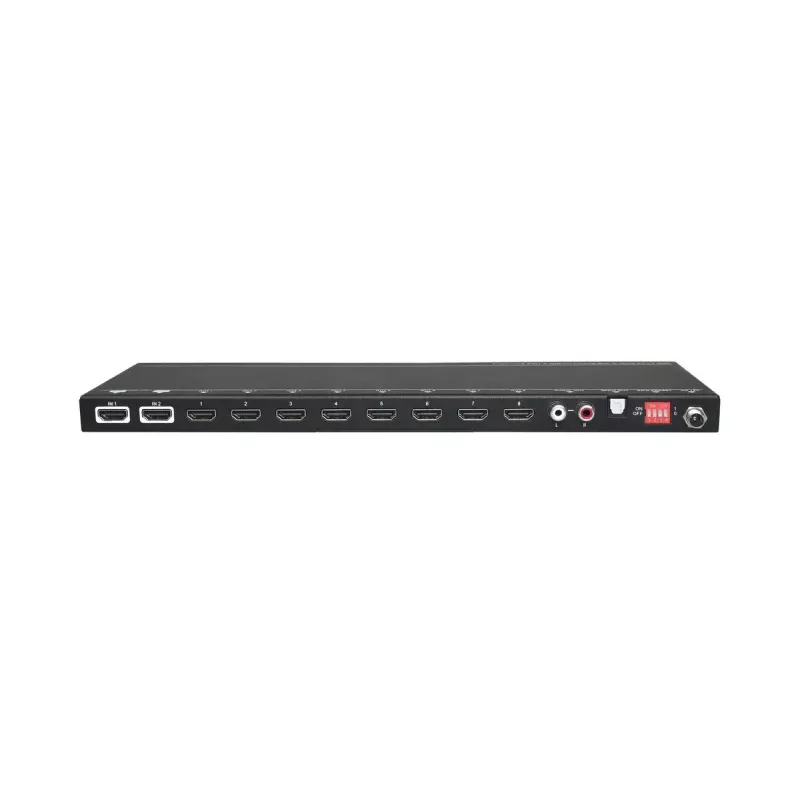

The Vivolink VLHDMISP2X8 is a 2x8 HDMI video splitter that distributes two HDMI sources to up to eight HDMI displays. It supports resolutions up to 4K@60Hz with 4:4:4 chroma, HDR10 and Dolby Vision, features an 18 Gbps bandwidth and HDCP 2.2 compliance, and includes 4K-to-1080p downscaling on all outputs. Housed in a compact metal case and powered from 110–230 V AC, the unit is designed for stable signal distribution in retail, corporate and AV installations.

Advantages

The splitter provides high-quality video distribution with support for 4K@60Hz 4:4:4, HDR10 and Dolby Vision, while 18 Gbps bandwidth and HDCP 2.2 ensure compatibility with modern sources. Built-in signal equalisation and EDID/CEC management improve transmission stability and device communication. Downscaling on every output and both digital (Toslink) and analog (L+R) audio de-embedding offer flexible integration with mixed-resolution displays and external audio systems.

Suitable for

• Retail displays and shopfront TV demonstrations
• Corporate meeting rooms and presentation setups
• Small-scale AV distribution where multiple screens require the same sources
• Environments combining 4K and 1080p displays

Key specifications

• Model: Vivolink VLHDMISP2X8
• Inputs: 2 × HDMI
• Outputs: 8 × HDMI
• Max resolution: 3840 × 2160 @ 60 Hz (4:4:4)
• Supported HDR: HDR10, Dolby Vision
• Bandwidth: 18 Gbps
• HDCP: 2.2 compliant
• Audio de-embed: Toslink (digital) and L+R (analog)
• Downscaling: 4K to 1080p on all outputs
• Power: AC 110–230 V
• Construction: Metal chassis, colour: black
• Dimensions (W×D×H): 324 × 100 × 20 mm
• Weight: 0.9 kg

How to use

Place the VLHDMISP2X8 in a ventilated location and connect two HDMI source devices to the HDMI input ports. Connect up to eight HDMI displays to the output ports with standard HDMI cables. Connect the unit to mains power (110–230 V AC). Use the front-panel or web/remote controls (if provided) to select input routing and configure EDID and downscaling options. If needed, connect Toslink or analog L+R outputs to an audio system to extract audio separately from the HDMI signal.

Recommendations

For stable long runs use high-quality HDMI cables and verify each display’s EDID when mixing 4K and 1080p screens; enable downscaling on outputs connected to 1080p displays to avoid resolution conflicts. Keep the unit in a dry, ventilated environment and allow clearance for airflow.
