Volante base para simuladores de corrida PXN VD10 DS – Pacote PXN VD10 DS

PXN VD10 DS Base Steering Wheel

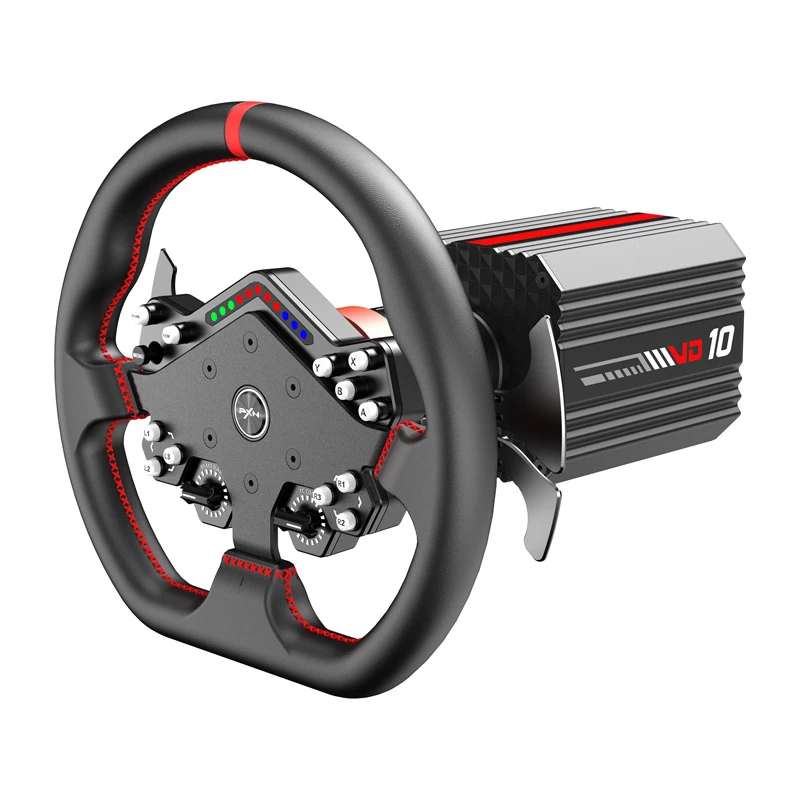

The PXN VD10 DS is a complete racing simulation kit that combines a powerful Direct Drive base with the compact WDS R2 steering wheel. The constant 10 Nm of torque, precise reproduction of the pavement and state-of-the-art technology inside the base make every drive a realistic experience. On the other hand, the ergonomic 300 mm DS steering wheel with solid paddles and programmable buttons offers full control of the vehicle - both on and off the track. The steering wheel uses a Quick Release system for easy tool-free replacement. Thanks to an aircraft-grade conductive ring, power and data are transmitted stably and without interference - even under heavy load.

Power and accuracy hidden in the VD10 base

At the heart of the kit is the PXN VD10 base with Direct Drive. The proprietary 20-pole motor with low inertia provides 50% faster response time and up to 95% higher energy efficiency. A constant torque of 10 Nm allows the vehicle to feel turning forces and overloads with high precision, regardless of driving style or road surface. All of this is supported by a 24-bit magnetic encoder that generates more than 46,000 pulses per degree of rotation, eliminating delays and ensuring high accuracy in motion mapping. In addition, an aluminum housing with an intelligent cooling system allows the VD10 base to maintain an optimal operating temperature for a long time. Internal sensors and active cooling reduce the operating temperature by up to 30°C compared to older models, which has a direct impact on the stability of operation and durability of the equipment.

Thoughtful details and total control

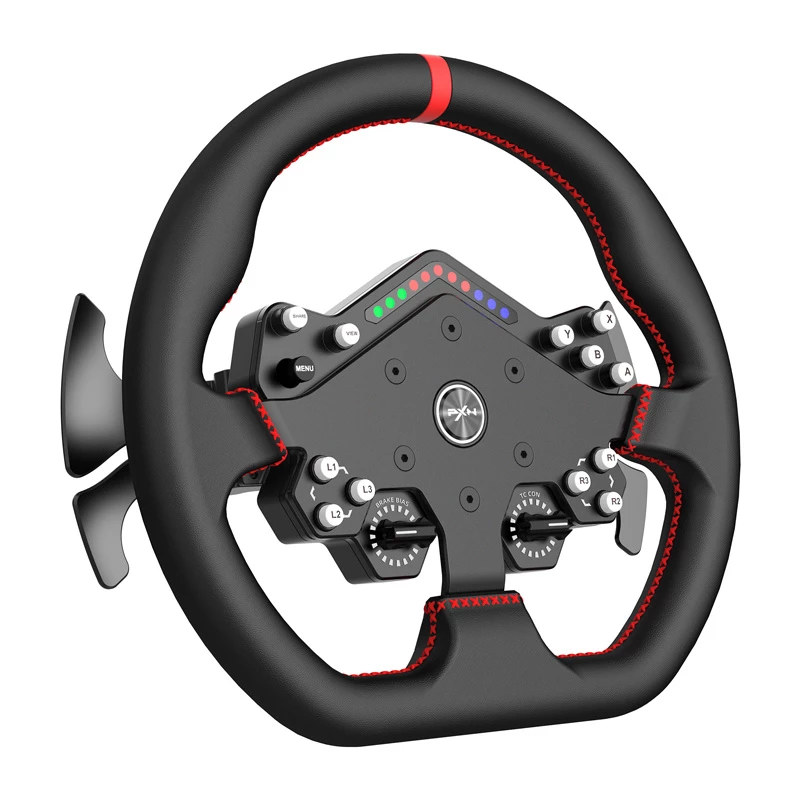

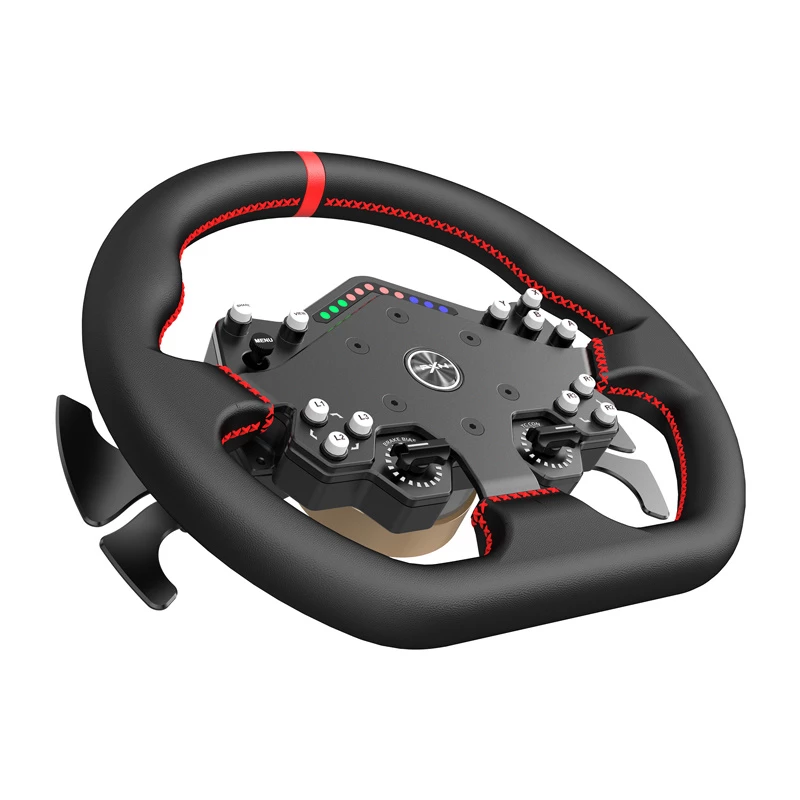

The DS steering wheel is equipped with 13 programmable buttons (including 12 function + 1 system PXN), 11 customizable RGB LEDs, and a rotary encoder with 20 positions and button function for quick access to settings such as traction control or brake balance. Precision-engineered aluminum shift paddles based on Hall sensors ensure fast, lightweight and trouble-free gear shifting even during intense driving.

Full immersion

The PXN VD10 DS uses a proprietary Sense+ algorithm that processes telemetry data from the game in real time. As a result, the user feels not only the forces resulting from cornering or braking, but also the nuances of the road surface, suspension behavior, etc.

Wide compatibility

The PXN VD10 DS kit is fully compatible with a wide range of PC racing games, including Assetto Corsa, Forza Horizon 5, DiRT Rally 2.0 or Le Mans Ultimate. Combined with PXN's SimRacing software, which allows you to quickly adjust pedal, clutch or force feed settings, installation and hardware setup are quick and hassle-free.

Included

• VD10 base
• power supply
• user manual
• accessory kit
• WDS R2 steering wheel
• USB-A to USB-C cable
• key
• black silicone pads x4

How to use

Mount the VD10 base to a compatible wheel stand or cockpit using the supplied accessory kit and secure the WDS R2 steering wheel with the Quick Release system. Connect the VD10 base to power (DC 24 V) and to your PC via the USB cable. Install PXN SimRacing software if you want to fine-tune force feedback, pedals and clutch settings. Use the programmable buttons, rotary encoder and paddles on the WDS R2 to adjust in-game settings and control vehicle functions. Allow the base time to run active cooling under heavy use; the intelligent cooling reduces internal temperature to maintain stable performance.

Recommendations

For best results, mount the base on a rigid cockpit or wheel stand, keep the operating environment within the specified temperature and humidity ranges, and update firmware via PXN software. Use compatible PC racing titles (for example Assetto Corsa, Forza Horizon 5, DiRT Rally 2.0 and Le Mans Ultimate) and calibrate controls in-game for optimal feedback and accuracy.
