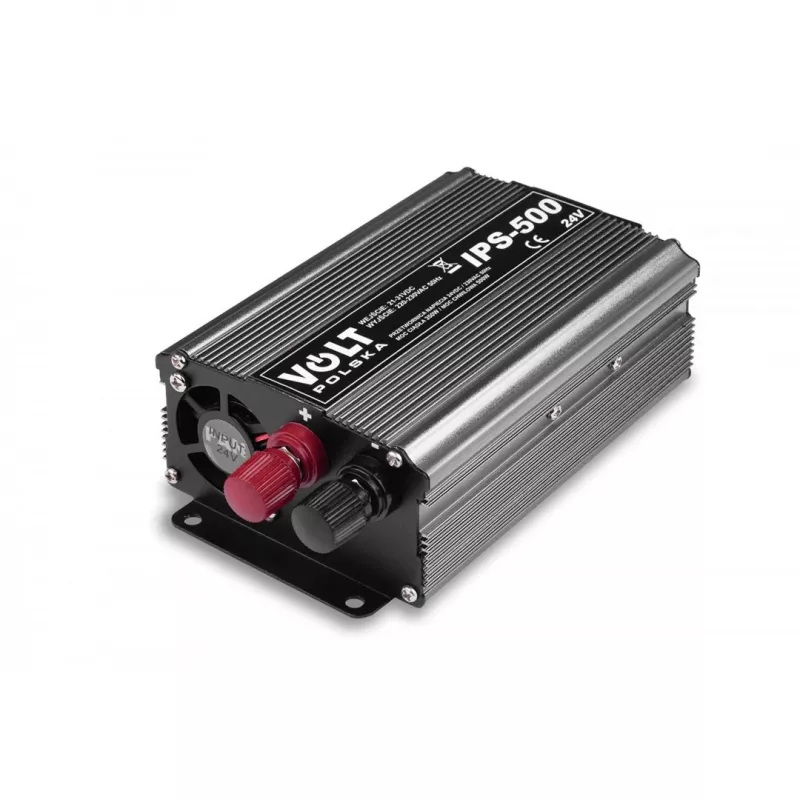

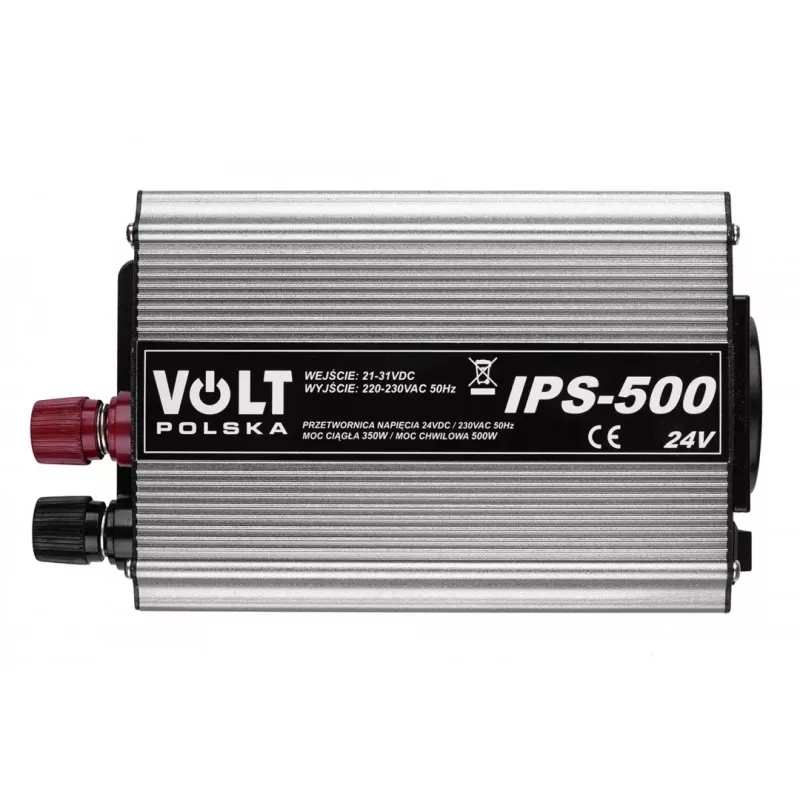

Inversor AZO 350/500W 24V para 230V modelo 4PRZ24230IPS500, 350W potência contínua / 500W potência de pico

The AZO power inverter model 4PRZ24230IPS500 converts 24V DC battery power to 230V AC mains voltage, providing a continuous output of 350W and a peak capacity of 500W. It is designed to supply household appliances and electronic devices where a 230V source is required, enabling operation of tools, chargers, small kitchen appliances and mobile equipment from automotive, marine or off-grid 24V battery systems. The inverter produces a stable AC output suitable for resistive and many electronic loads and includes protection features to safeguard connected devices and the inverter itself.

Advantages

The inverter offers a compact and robust design that fits vehicle and mobile installations while delivering a reliable 350W continuous power output and short-term peaks up to 500W. Built-in protection circuits guard against overload, over-temperature and short-circuit conditions, reducing the risk of damage to devices and the unit. Low-voltage operation from a 24V battery makes it suitable for trucks, boats and off-grid systems, and the unit provides a convenient way to run AC-powered devices where mains supply is not available.

Suitable for

• Powering laptop chargers and small consumer electronics
• Running small kitchen appliances such as kettles and toasters with low power ratings
• Operating power tools and chargers for batteries and cordless devices within the inverter’s power limits
• Providing temporary AC power in vehicles, boats and mobile workstations

Key specifications

• Input voltage: 24V DC
• Output voltage: 230V AC
• Continuous output power: 350W
• Peak (surge) power: 500W
• Suitable load types: resistive and many electronic loads
• Protection features: overload, over-temperature, short-circuit protection

How to use

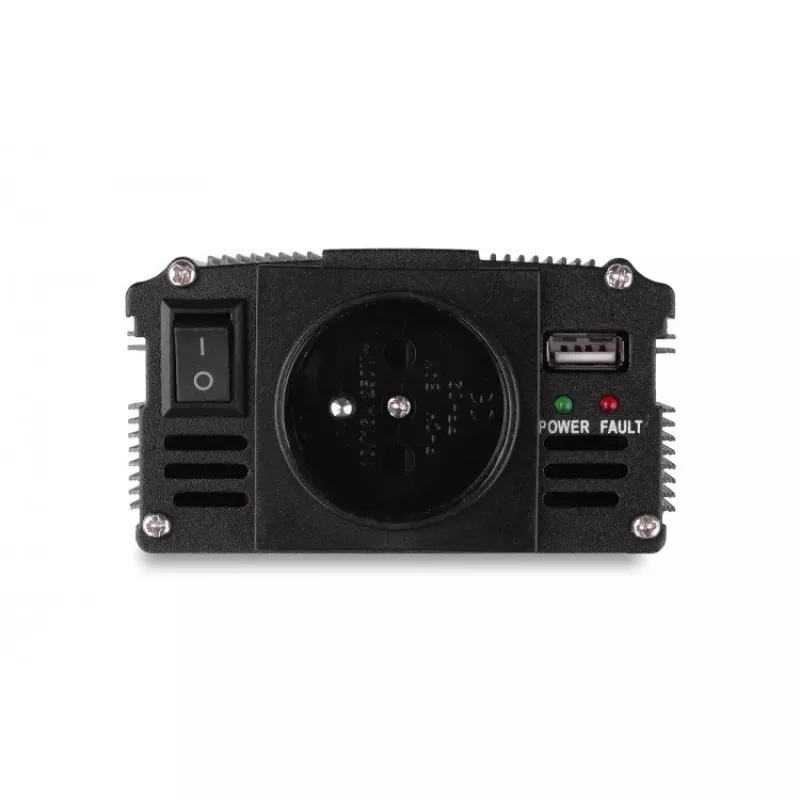

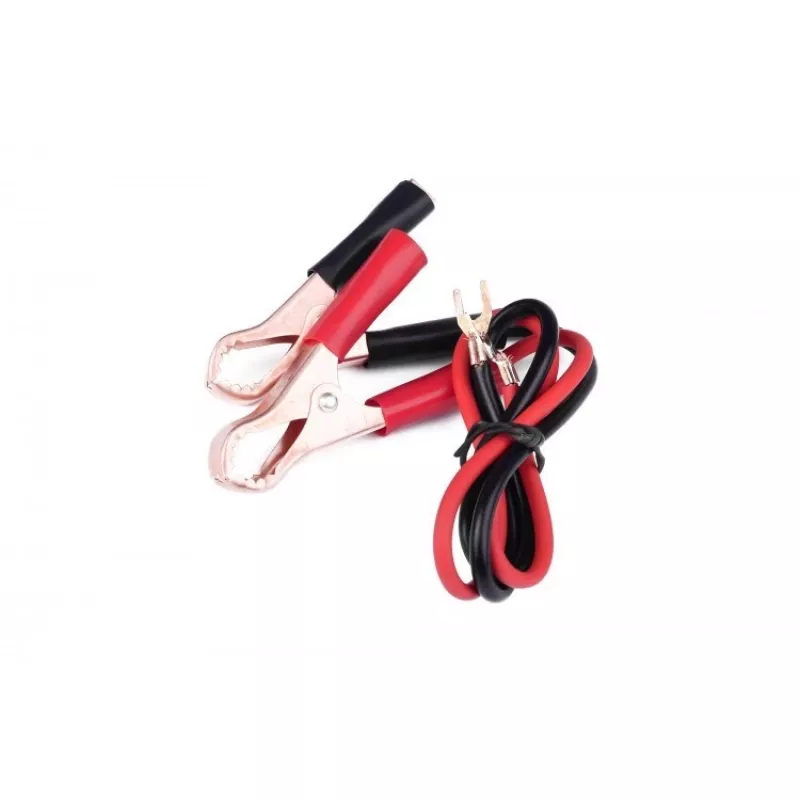

Connect the inverter to a 24V DC battery using appropriate gauge cables and secure terminals, observing polarity. Place the inverter in a well-ventilated location away from heat sources and moisture. Plug the 230V AC appliance into the inverter’s output socket and switch the inverter on. Monitor the load to ensure the combined power draw does not exceed the continuous 350W rating; allow for short-term surges up to 500W for motor-start or charging peaks. If protection circuits trigger, switch the inverter off, reduce the load and follow the manufacturer’s guidance before attempting restart.

Recommendations

The inverter is intended for intermittent and continuous use within its rated power limits. Use appropriately sized battery capacity and wiring to minimise voltage drop and heat. For inductive loads (motors, compressors) check starting currents and avoid prolonged operation near the inverter’s maximum rating. Ensure proper ventilation and periodically inspect connections and mounting for secure installation.
