VOLTCRAFT Cabo de medição de segurança altamente flexível [ficha de lâminas de 4 mm - ficha de lâminas de 4 mm] 0,5 m verde MSB-501 10 A (VC-8063525)

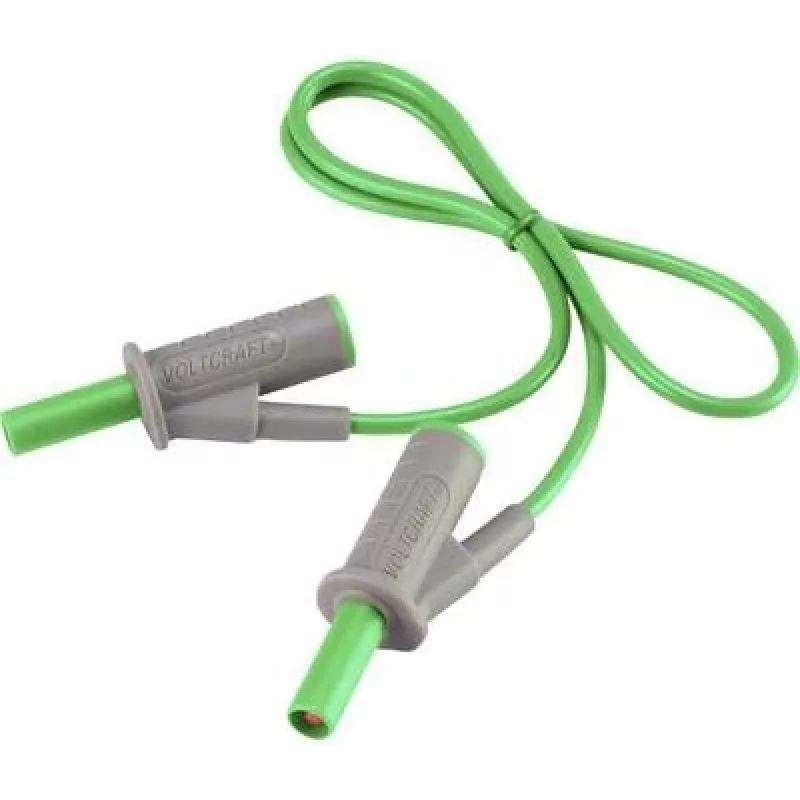

Safety test lead with 4 mm lamella plugs on both ends, engineered for highly flexible operation and reliable measurements in CAT III and CAT IV environments. The 0.5 m green silicone cable offers exceptional flexibility and double insulation, making it ideal for tight spaces and frequent handling.

Advantages

The highly flexible silicone insulation remains supple even at low temperatures, preventing kinks and breaks. Nickel-plated brass contacts ensure low contact resistance and long-term durability. Double insulation and compliance with IEC/EN 61010-031 guarantee safe operation up to 1000 V CAT III and 600 V CAT IV.

Suitable for

• Electrical testing and measurement in laboratory and field environments
• Connecting multimeters and test instruments to devices under test
• Applications requiring frequent bending and movement of test leads
• CAT III and CAT IV measurement categories

Key specifications

• Connector type: 4 mm lamella plug to 4 mm lamella plug
• Cable length: 0.5 m
• Colour: Green
• Maximum current: 10 A
• Maximum voltage: 1000 V CAT III / 600 V CAT IV
• Safety standard: IEC/EN 61010-031
• Insulation: Double insulated
• Cable material: Silicone
• Contact material: Nickel-plated brass
• Cable cross-section: 1 mm²
• Operating temperature: -15 to +70 °C
• Contact resistance: < 30 mΩ
• Plug design: Straight
• Quantity: 1 piece

Recommendations

Pair with VOLTCRAFT multimeters and test instruments for reliable, safe measurements. Keep spare leads on hand to avoid downtime during critical testing.
