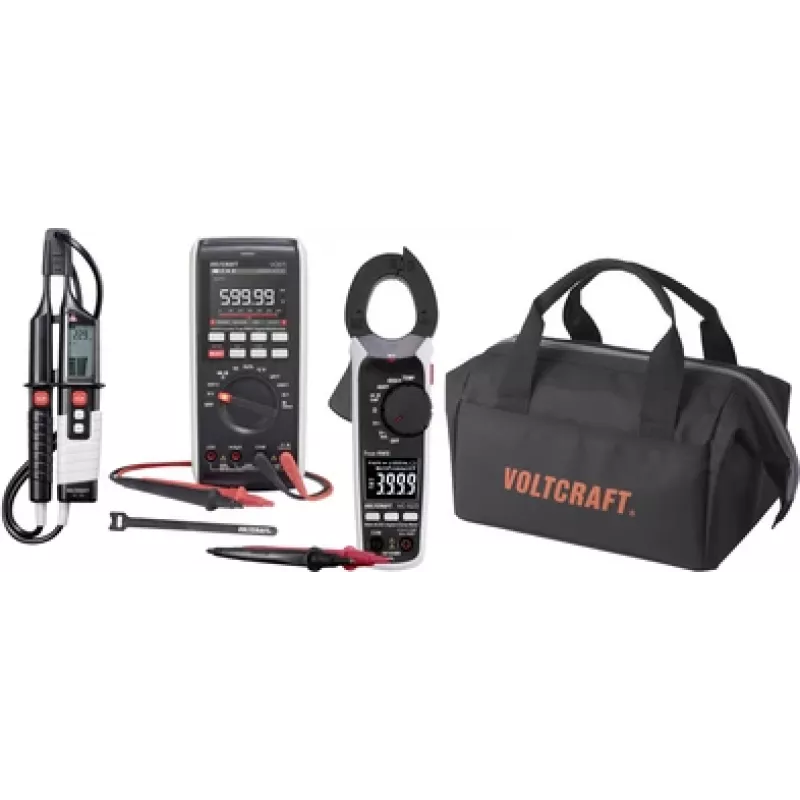

Voltcraft Conjunto de multímetro para eletricistas e pinça amperimétrica VC-12884335-VC-8466760-Set CAT III 1000V CAT IV 600V

For electricians and field service technicians who need reliable measurement on industrial and building installations, this Voltcraft set combines a digital multimeter and a clamp meter, both with Bluetooth connectivity and true RMS measurement. The devices are rated CAT III 1000 V and CAT IV 600 V, making them suitable for work on distribution boards and fixed installations.

Key specifications

• Digital multimeter and clamp meter set
• Safety rating: CAT III 1000 V, CAT IV 600 V
• True RMS measurement on both devices
• 6000-count digital display
• Bluetooth connectivity for data transfer
• DC voltage range: 0.1 mV to 1000 V
• AC voltage range: 0.1 mV to 750 V
• DC current range (multimeter): 0.1 µA to 10 A
• AC current range (multimeter): 0.1 µA to 10 A
• AC/DC current range (clamp meter): 0.1 A to 1000 A
• Resistance range: 0.1 Ω to 60 MΩ
• Capacitance range: 1 nF to 60 mF
• Frequency range: 1 Hz to 10 MHz
• Temperature measurement range: -40 to +1000 °C
• Clamp jaw opening: approx. 40 mm
• Non-contact voltage detection (NCV)
• Inrush current measurement (clamp meter)
• Diode and continuity test
• Data hold and auto-ranging
• Power supply: 3x AAA batteries per device (6x AAA total)

Why choose it

Both instruments provide true RMS readings for accurate measurement on non-sinusoidal waveforms. Bluetooth connectivity allows you to log and review data on a mobile device, reducing manual recording. The high CAT ratings ensure safe use in demanding electrical environments.

Ideal use cases

• Electrical installation testing and troubleshooting
• Maintenance of industrial equipment and switchgear
• HVAC and motor current measurements
• Field service and commissioning

Good to know

The clamp meter's jaw opening accommodates conductors up to 40 mm, enabling current measurement without breaking the circuit. Each device runs on three AAA batteries, so you can easily replace them in the field.
