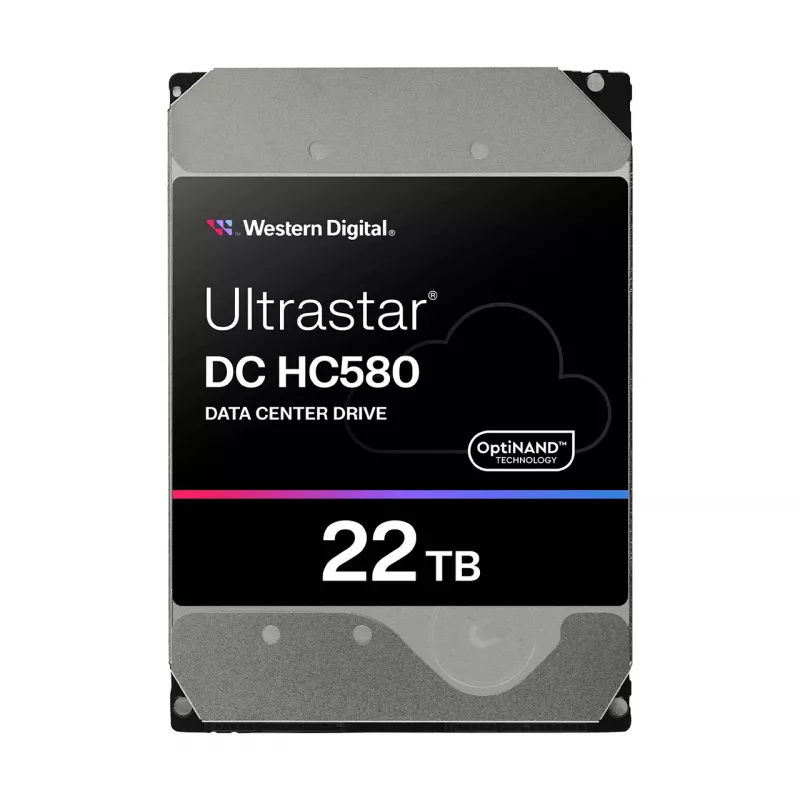

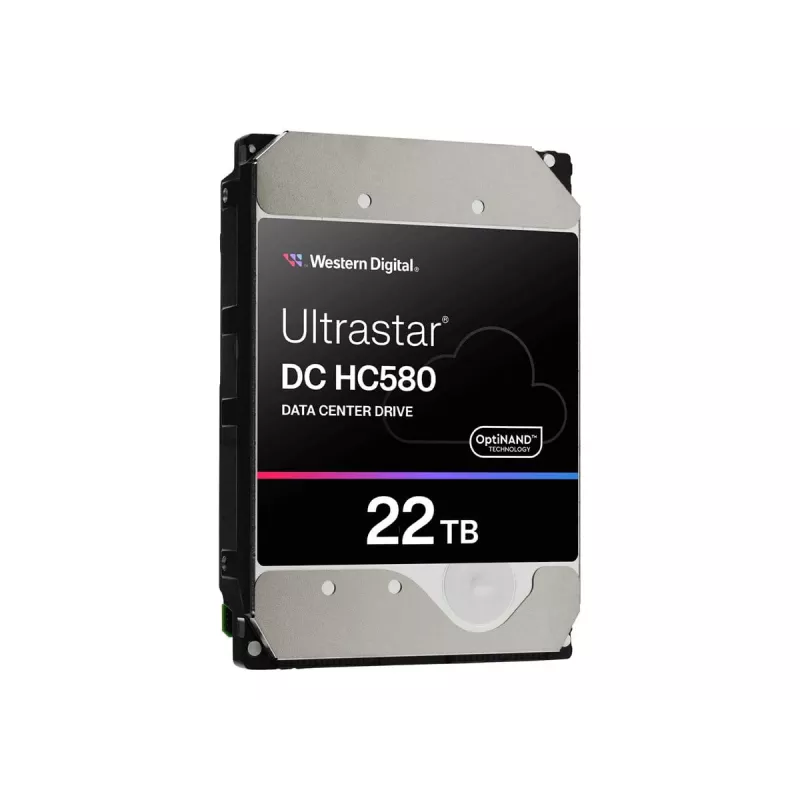

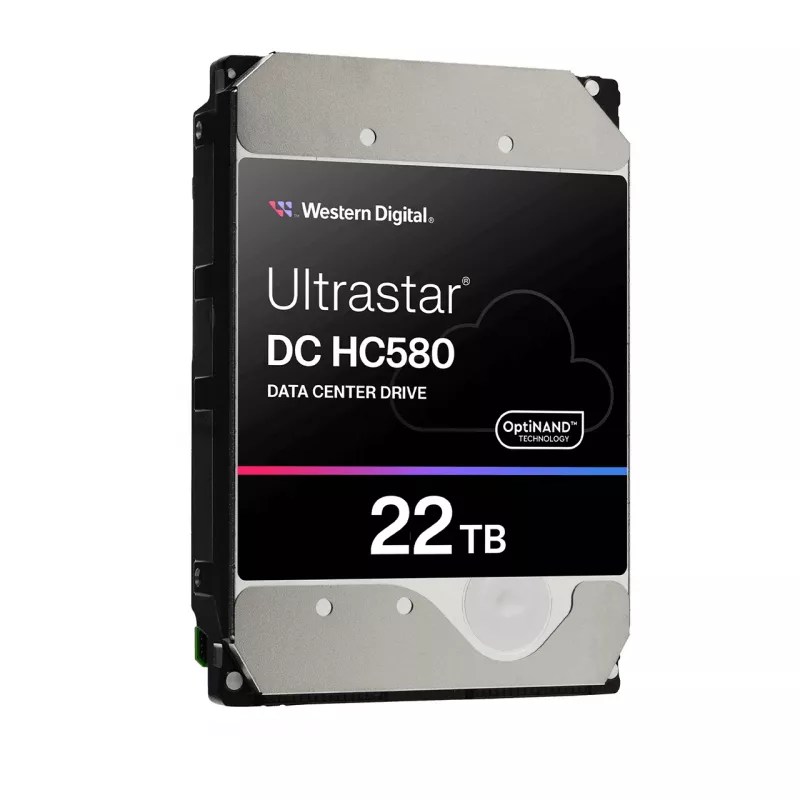

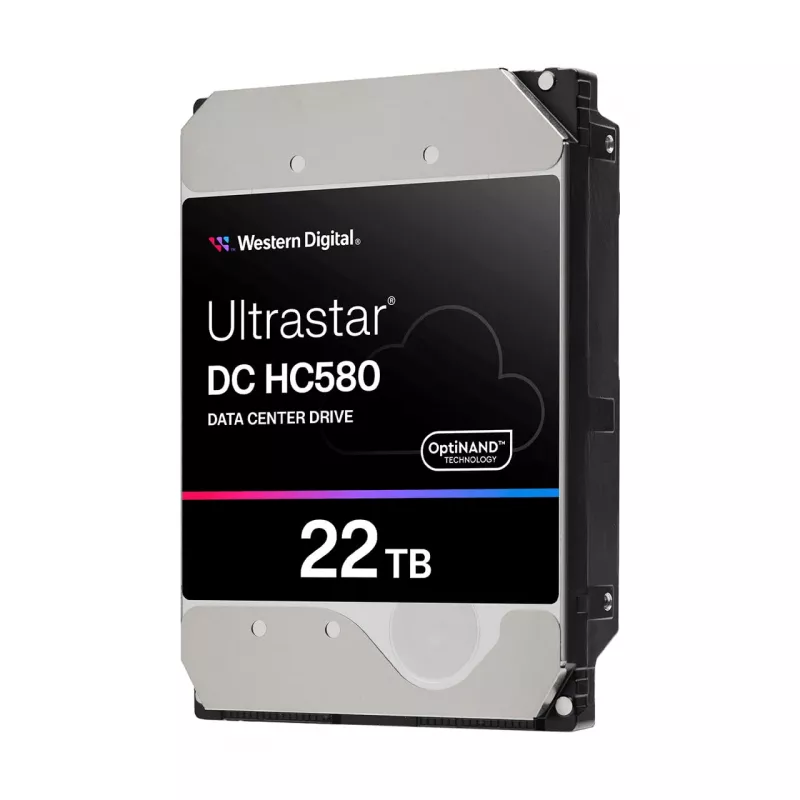

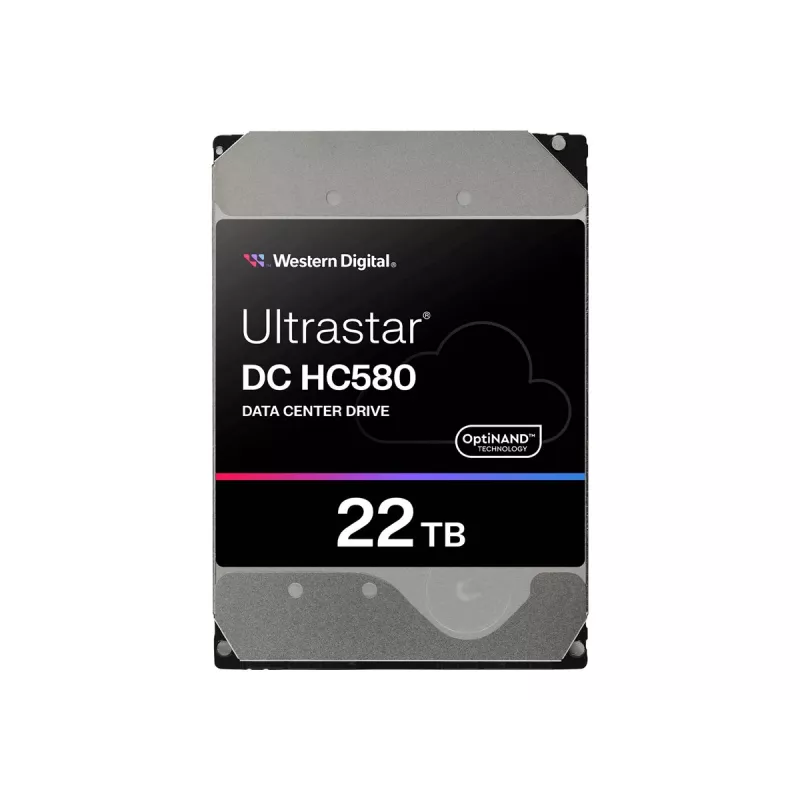

Western Digital Ultrastar DC HC580 WUH722422ALE6L1 Disco Interno 22 TB 7200 RPM 512 MB 3,5" SATA III SED

The Western Digital Ultrastar DC HC580 (WUH722422ALE6L1, 0F62784) is a 22 TB enterprise-class 3.5-inch hard drive engineered for the relentless growth of data in hyperscale and traditional data centres. Built on Western Digital's energy-assisted PMR platform with enhanced OptiNAND technology and a HelioSeal helium-filled design, it lets organisations maximise storage density even in space- and power-constrained environments.

Advantages

OptiNAND integration improves capacity, performance and reliability, while Conventional Magnetic Recording (CMR) guarantees consistent throughput without the write penalties of SMR drives. The drive is a Self-Encrypting Drive (SED) supporting TCG hardware encryption, delivering secure data-at-rest protection. With a projected 2.5 million hours MTBF and a 550 TB/year workload rating, the HC580 is purpose-built for 24/7 always-on operation.

Suitable for

• Cloud and hyperscale storage infrastructure
• Enterprise servers, JBOD and storage arrays
• High-capacity NAS and backup/archival systems
• Big-data, surveillance and bulk content repositories

Key specifications

• Brand: Western Digital (Ultrastar)
• Model: Ultrastar DC HC580 WUH722422ALE6L1
• MPN: 0F62784
• EAN: 829686008847
• Capacity: 22 TB
• Form factor: 3.5-inch internal
• Interface: SATA 6 Gb/s (SATA III-600)
• Rotational speed: 7200 RPM
• Cache: 512 MB
• Recording technology: CMR (energy-assisted PMR with OptiNAND)
• Sealing: HelioSeal helium-filled
• Sustained transfer rate: up to 284 MB/s
• Security: Self-Encrypting Drive (SED, TCG)
• Format: Advanced Format 512e
• Reliability: 2,500,000 hours MTBF (projected); 1 in 10^15 non-recoverable read errors
• Workload rating: 550 TB/year
• Power supply: 5 V and 12 V
• Operating temperature: 5 °C to 60 °C
• Warranty: 5-year limited

How to use

Mount the drive in a standard 3.5-inch bay or enterprise drive carrier, connect the SATA data and power cables, then initialise and format it through your operating system, RAID controller or NAS interface. For data-at-rest security, enable the drive's TCG self-encryption via a compatible host or controller.

Recommendations

For maximum reliability, deploy the Ultrastar DC HC580 in vibration-tolerant enterprise enclosures and pair it with RAID or erasure-coding for redundancy. Its CMR design and high workload rating make it an excellent choice wherever capacity, endurance and round-the-clock availability matter most.
