WEIß WHA5018HQ Suporte de parede em alumínio 180mm para mastro de 50mm 39024

180 mm wall clearance gives your antenna the distance it needs to clear roof overhangs and gutters, while the aluminium construction keeps the bracket light enough for easy one-person installation yet strong enough to hold up to 20 kg.

Overview

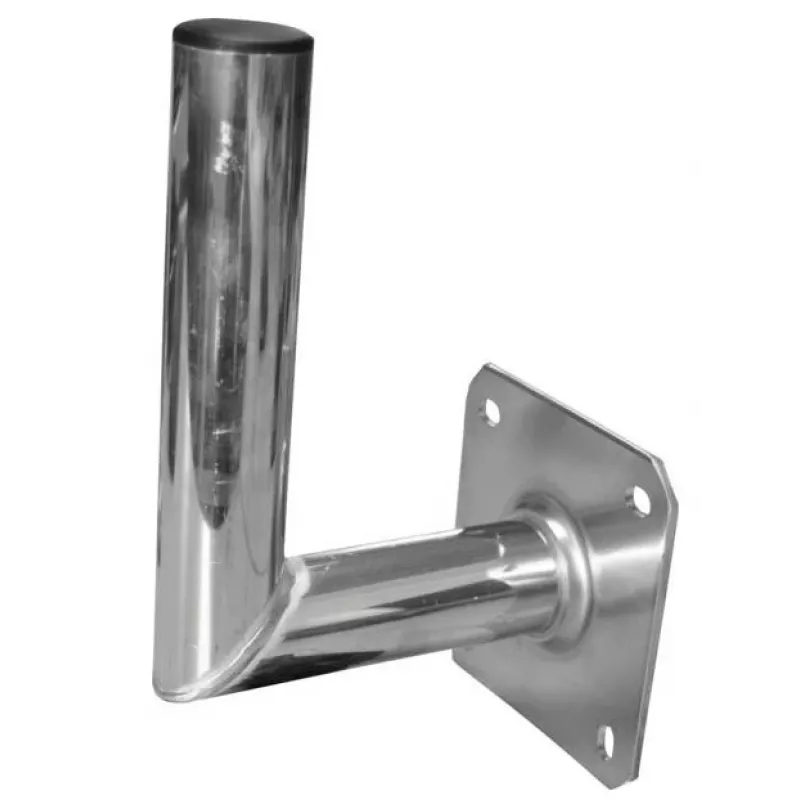

The WEIß WHA5018HQ is a wall mount bracket for satellite dishes, DVB-T antennas and general antenna masts. It is made from aluminium, which resists corrosion in outdoor conditions, and provides a 180 mm projection from the wall. The bracket fits a mast or tube with a diameter of 50 mm and mounts to the wall via a 150 x 150 mm plate with four 10 mm holes.

What stands out

• 180 mm wall clearance for optimal signal positioning
• Aluminium body for corrosion resistance and low weight
• Fits standard 50 mm antenna masts
• Four-hole wall plate for secure attachment

Technical details

• Material: Aluminium
• Wall clearance: 180 mm
• Mast diameter: 50 mm
• Wall plate dimensions: 150 x 150 mm
• Mounting holes: 4 x 10 mm
• Maximum load capacity: 20 kg
• Colour: Silver
• Outdoor use: Yes

Our verdict

A straightforward, weather-resistant wall mount that gives your antenna the clearance and stability it needs. The aluminium build keeps it light and rust-free, and the 20 kg capacity covers most residential antenna setups.
