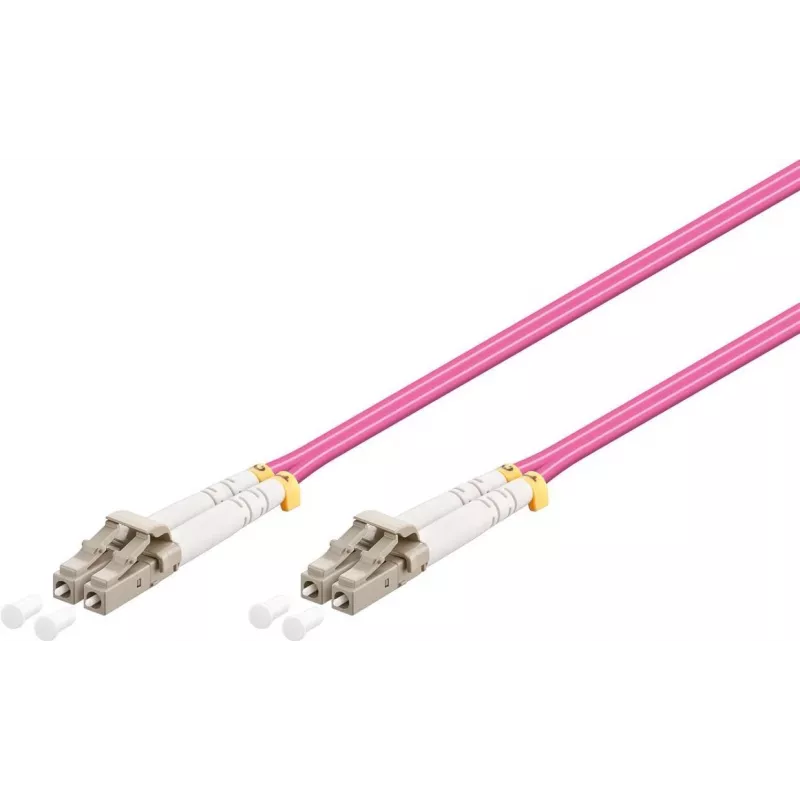

Cabo de fibra ótica GOOBAY LC–LC OM4 5 m, 50 µm, duplex integral, rosa

GOOBAY LC–LC OM4 5 m fibre optic cable is a multimode 50 µm core duplex cable designed for short- to medium-range high-speed data links. Fitted with LC duplex connectors on both ends and supplied in pink for easy identification, this cable is intended for use in server rooms, network racks, switches and SAN interconnects. The halogen-free, flame-retardant sheath and integrated bend protection provide reliable mechanical protection, and each cable is delivered with a test protocol to verify optical performance.

Advantages

The OM4 multimode construction supports high bandwidth and reliable signal transmission for 10 Gbit/s and lower rates across typical data centre distances. LC duplex connectors with removable dust caps ensure secure, low-loss connections and simple handling during installation. The LSZH (halogen-free) jacket reduces toxic gas emissions in case of fire and the polyurethane sheath adds flexibility and abrasion resistance for routing in racks and conduits. Supplied with a test report, the cable meets quality verification requirements for professional installations.

Suitable for

• Server room and data centre patching between switches and servers
• SAN interconnects and storage networking
• High-speed multimode Ethernet links (InfiniBand links and fibre networks)
• Office and industrial network backbones requiring identifiable cabling

Key specifications

• Fibre type: Multimode OM4, 50 µm core diameter
• Length: 5 m
• Connector type: LC duplex on both ends (LC–LC)
• Transmission mode: Full duplex multimode
• Jacket material: Polyurethane (PUR), halogen-free, flame-retardant
• Colour: Pink for easy identification
• Bend protection and abrasion-resistant sheathing
• Delivered with individual test protocol
• Indicative maximum ranges: 100 Mbit/s up to 500 m; 1 Gbit/s up to 1100 m; 10 Gbit/s up to 550 m

How to use

Before installation, check the supplied test protocol to confirm the cable meets required insertion loss and return loss values. Remove dust caps from the LC duplex connectors just before connecting to active equipment to avoid contamination. Plug each LC connector into the corresponding LC adapter or transceiver in the switch, server or patch panel, ensuring correct duplex orientation. Route the cable through cable management paths, respecting minimum bend radius and avoiding tight kinks or crushing to preserve optical performance.

Recommendations

Store and handle the cable by the connectors or jacket; avoid pulling on the fibre itself. Maintain the specified minimum bend radius during installation and use dust caps when ports are idle to protect connector endfaces. For critical links, verify optical performance after installation and keep the test report with infrastructure documentation.
