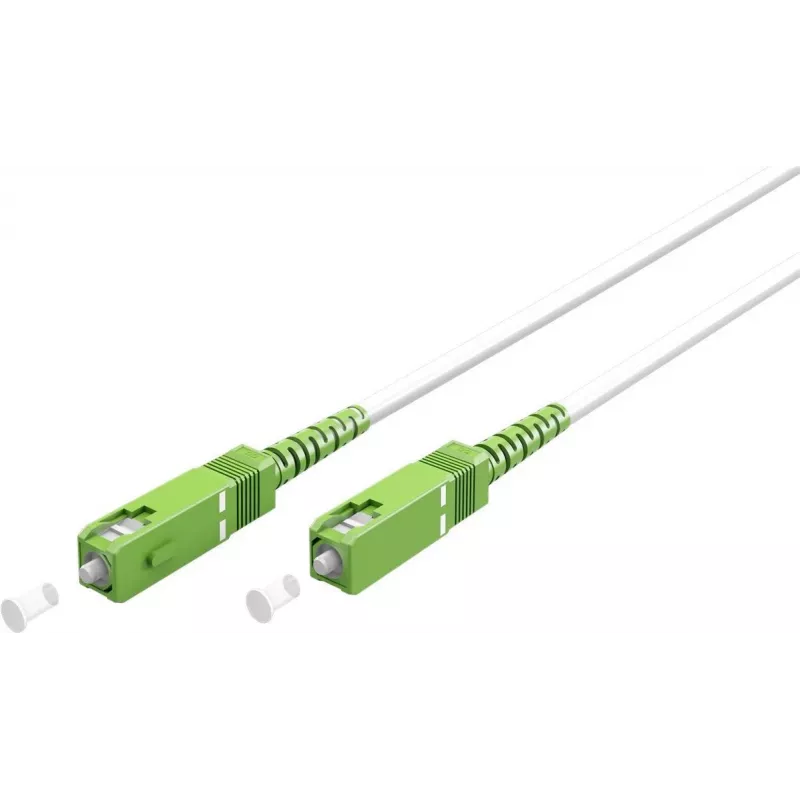

WENTRONIC Goobay 59599 Cabo de patch de fibra ótica OS2 Single-Mode SC/APC para SC/APC, 15 m, LSZH, branco

This 15-meter OS2 single-mode fiber optic patch cable stands out with its SC/APC connectors on both ends, engineered for FTTH (Fiber To The Home) installations where low back reflection and stable signal integrity are critical. The angled polish (APC) reduces return loss to ≥60 dB, making it a reliable choice for high-speed broadband networks, CATV, and PON architectures.

Highlights

• Single-mode OS2 fiber with 9/125 µm core/cladding for long-distance transmission
• SC/APC to SC/APC connectors with zirconia ceramic ferrules for precise alignment
• Low insertion loss ≤0.3 dB and high return loss ≥60 dB
• LSZH (Low Smoke Zero Halogen) white jacket for safety in enclosed spaces
• Simplex construction with 3 mm outer diameter for easy routing
• Compliant with RoHS and CE standards

In daily use

Whether you're connecting an ONT (Optical Network Terminal) to a wall outlet or patching between fiber distribution panels, this cable delivers consistent performance. The white LSZH jacket is not only flame-retardant and low-smoke but also blends discreetly into residential or office environments. The 15-meter length offers flexibility for installations where equipment is not adjacent to the termination point.

Full specifications

• Brand: WENTRONIC
• Model: 59599
• MPN: 59599
• EAN: 4040849595998
• Cable type: Fiber optic patch cable, simplex
• Fiber mode: Single-mode OS2
• Connector A: SC/APC
• Connector B: SC/APC
• Cable length: 15 m
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Insertion loss (typical): ≤0.3 dB
• Return loss (typical): ≥60 dB
• Jacket material: LSZH
• Jacket color: White
• Cable diameter: 3 mm
• Ferrule material: Zirconia ceramic
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, CE

Final note

For FTTH deployments that demand minimal signal loss and maximum reliability, this Goobay patch cable is a professional-grade solution that meets stringent performance standards.
