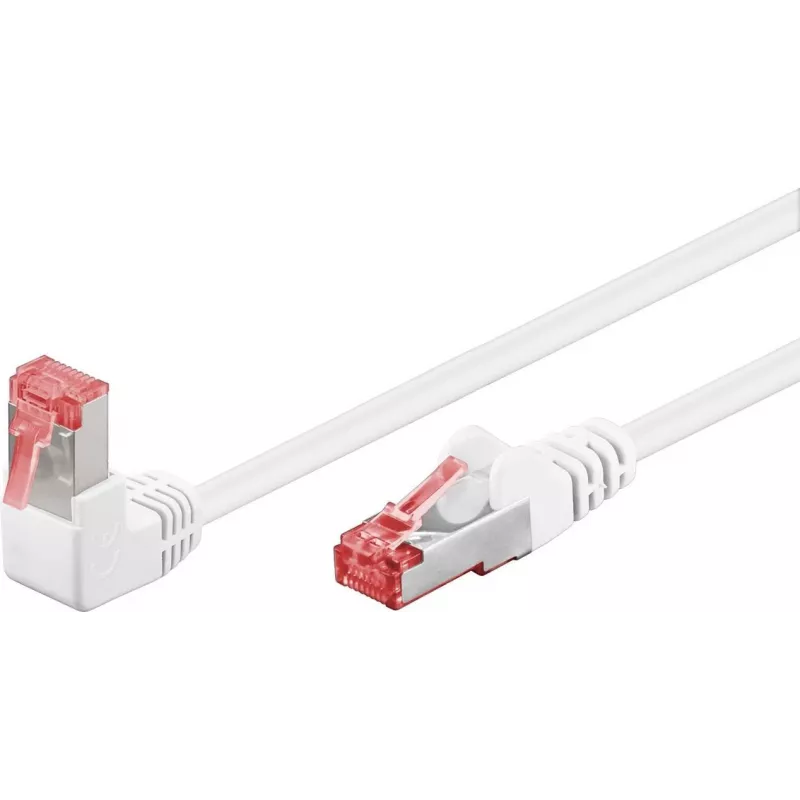

WENTRONIC Goobay cabo patch CAT 6, 1x angular 90°, S/FTP (PiMF), branco, 0,25 m - Latch Up, LSZH sem halogéneos, cobre (51548)

In tight spaces behind desks or inside cable ducts, a standard straight connector can make routing a patch cable nearly impossible. This Goobay CAT 6 patch cable solves that with one RJ45 plug angled at 90°, letting the cable exit immediately downward or upward while the latch sits on top for secure retention. The 0.25 m length keeps connections short and tidy, and the white LSZH jacket blends into modern interiors while meeting strict fire safety requirements.

Highlights

• One straight and one 90° angled RJ45 connector (latch up) for easy installation in confined areas
• S/FTP (PiMF) shielding: each pair individually foil-wrapped plus overall braid for maximum interference rejection
• Pure copper stranded conductors ensure reliable Gigabit Ethernet performance
• LSZH (Low Smoke Zero Halogen) jacket emits little smoke and no corrosive halogens in case of fire
• CAT 6 rated up to 250 MHz, supporting 10/100/1000BASE-T networks
• Short 0.25 m length reduces clutter and signal loss in high-density patching

In daily use

Whether connecting a wall outlet to a switch mounted flush against a cabinet, or linking a patch panel to a router in a shallow enclosure, the angled plug prevents excessive bending and strain on the cable. The latch-up orientation keeps the release tab accessible even when ports are stacked closely together. The white jacket is easy to label and identify in crowded racks, and the halogen-free material makes it suitable for public buildings, offices, and home use where safety is a priority.

Full specifications

• Cable standard: CAT 6
• Shielding: S/FTP (PiMF)
• Length: 0.25 m
• Colour: White
• Connector A: RJ45 male, straight
• Connector B: RJ45 male, 90° angled, latch up
• Conductor material: Copper (stranded)
• Jacket material: LSZH (halogen-free)
• Bandwidth: 250 MHz
• Data rate: 1 Gbps
• Wiring standard: TIA/EIA 568B
• Number of conductors: 8 (4 twisted pairs)

Final note

For installations where space is at a premium and safety standards demand halogen-free cabling, this angled CAT 6 patch cable delivers both performance and practicality in a compact, clean white design.
