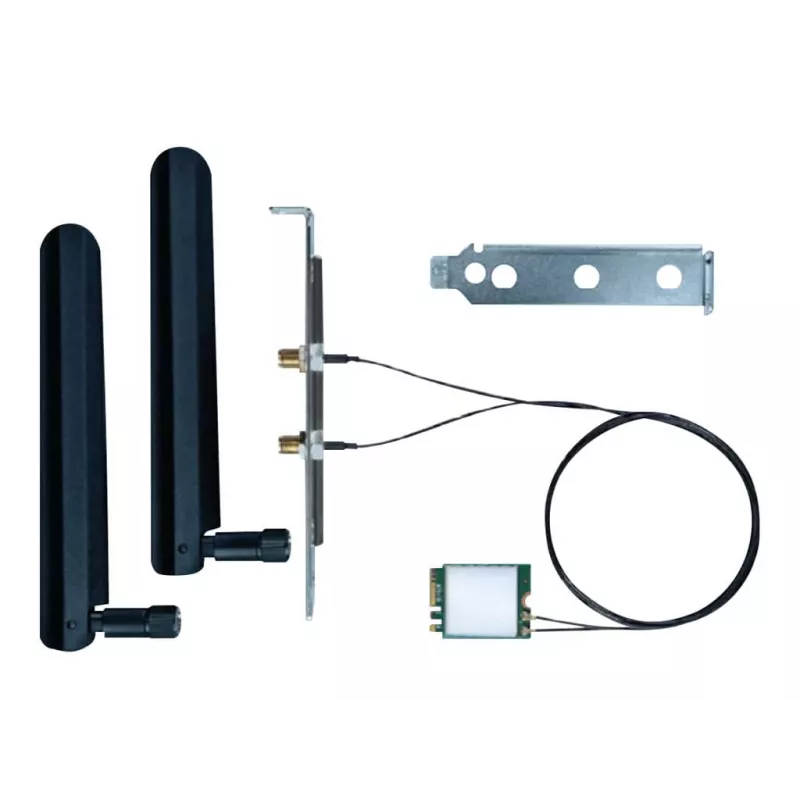

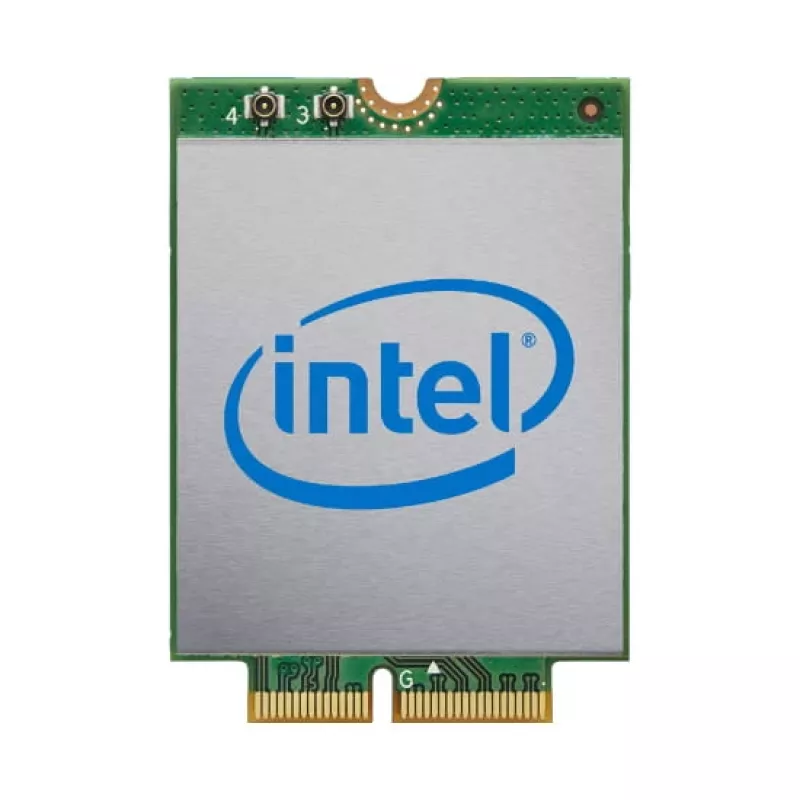

Placa Wi-Fi interna Intel Wi-Fi 6E AX210

The Internal WLAN Intel Wi‑Fi 6E AX210 is a PCI Express network card that provides high‑speed wireless connectivity up to 2400 Mbit/s. It supports tri‑band operation (2.4 GHz, 5 GHz and 6 GHz) and implements the Wi‑Fi 6E (IEEE 802.11ax) standard with a 2x2 antenna configuration for improved throughput and multi‑user efficiency.

Advantages

The Intel Wi‑Fi 6E AX210 delivers tri‑band support including the 6 GHz band for reduced interference and higher capacity. With OFDMA and other 802.11ax features, it enables more efficient simultaneous transmission for multiple devices. The PCI Express host interface and broad standards compatibility ensure easy integration in compatible systems.

Suitable for

• Desktop PCs and small form‑factor systems with a free PCI Express slot
• Home and office wireless networks requiring higher throughput and lower latency
• Environments with many connected devices where multi‑user efficiency is important

Key specifications

• Brand: INTEL
• Model: Wi‑Fi 6E AX210 (MPN: AX210.NGWGE.NVK)
• Interface: PCI Express
• Max data transfer rate: 2400 Mbit/s
• Frequency bands: 2.4 GHz, 5 GHz, 6 GHz (tri‑band)
• Antenna configuration: 2x2
• Standards: IEEE 802.11ax (Wi‑Fi 6E) and backward compatible with IEEE 802.11a/b/g/n/ac and additional 802.11 extensions
• Weight: 0.0028 kg
• EAN: 5032037235860

How to use

Install the module into an available PCI Express slot on a compatible motherboard. Attach any external antennas if required by your system design and secure the card. Install the appropriate drivers supplied by the system vendor or from Intel to enable Wi‑Fi 6E functionality and configure wireless network settings via your operating system's network manager.

Recommendations

For best results, use the AX210 in systems with operating systems and drivers that support Wi‑Fi 6E and ensure the device firmware is up to date. To take advantage of the 6 GHz band, use a router or access point that also supports Wi‑Fi 6E.
