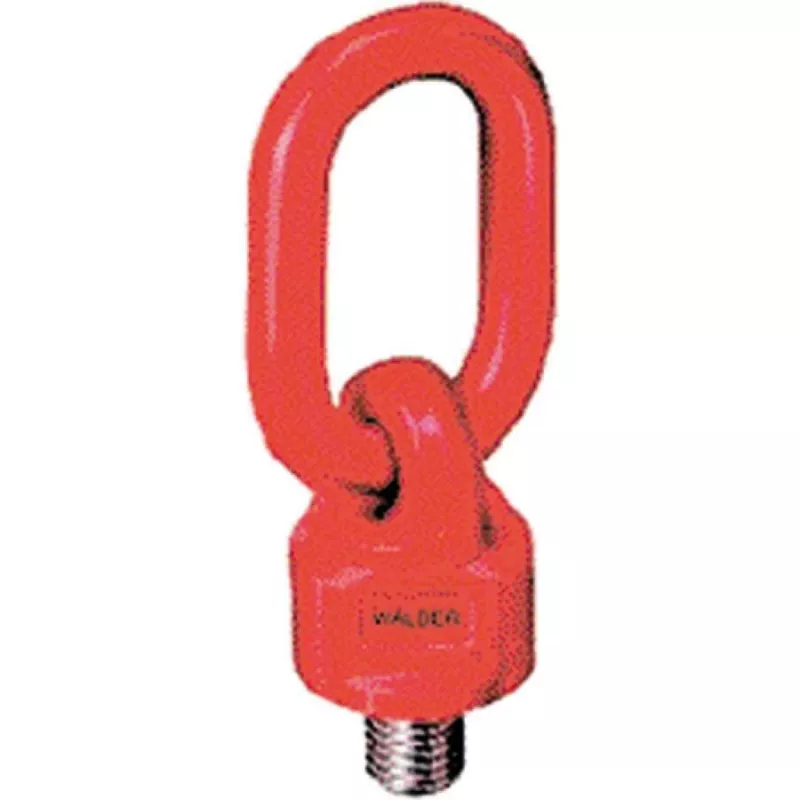

Argola de ancoragem com pino de olhal M16x32 TF 1,5t GÜ8 360° rotativa vermelho 55wawk1500-m16x32

Lifting and rotating heavy loads safely requires a connection point that can handle both the weight and the movement. The Wiedenmann Lifting Swivel Eye Bolt M16x32 provides a secure anchor with a 1.5-tonne working load limit, Grade 8 strength, and full 360° rotation to prevent twisting and stress on lifting slings.

Who is it for

This eye bolt is built for rigging professionals, workshop technicians, and anyone who needs a reliable lifting point for machinery, engines, or heavy components. It screws directly into a metric M16 threaded hole and is rated for loads up to 1.5 tonnes.

Main features

• 360° swivel rotation prevents the lifting sling from twisting or kinking under load
• Grade 8 (GÜ8) high-strength alloy steel for maximum durability and safety
• M16 x 32 mm metric thread fits standard tapped holes
• Working load limit of 1.5 t (1500 kg) for heavy-duty lifting
• Red finish for high visibility and corrosion resistance

Specifications

• Brand: Wiedenmann
• Model: 55wawk1500-m16x32
• MPN: 55wawk1500-m16x32
• EAN: 4061634008301
• Type: Lifting Swivel Eye Bolt
• Thread Size: M16
• Thread Length: 32 mm
• Working Load Limit: 1.5 t (1500 kg)
• Material Grade: Grade 8 (GÜ8)
• Rotation Capability: 360° Swivel
• Pivot Angle: 180°
• Colour: Red
• Connection Type: Metric Thread Bolt
• Material: High-strength Alloy Steel
• Application: Lifting, Rigging, Load Securing
• Installation: Screw-in

Tips

Always check that the thread engagement is sufficient for the load and that the eye bolt is fully screwed in before lifting. Inspect the bolt regularly for wear or deformation, and never exceed the working load limit.
