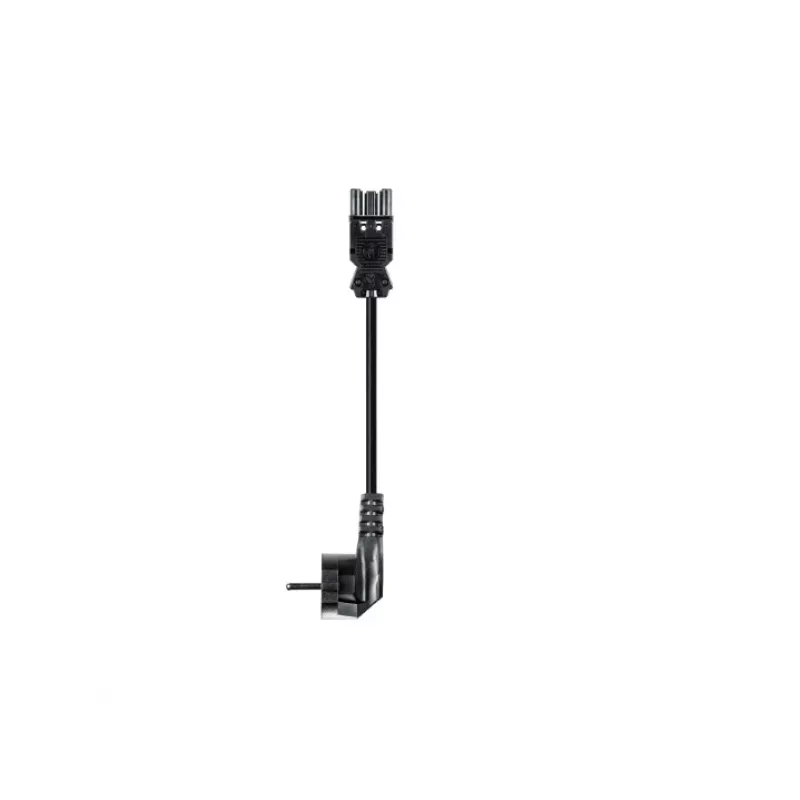

WIELAND ELECTRIC GESIS CLASSIC Cabo de alimentação - ficha CEE 7/4 para conector fêmea GST18i3 - 3m - preto

The WIELAND ELECTRIC GESIS CLASSIC power connection cable is a high-quality, pre-assembled solution for modular power distribution systems. Designed for professional use, this cable features a CEE 7/4 (Schuko) male connector on one end and a Wieland GESIS GST18i3 female connector on the other, providing a secure and reliable connection for a wide range of applications. With a length of 3 meters and a robust PVC jacket, it offers flexibility and durability in demanding environments.

Advantages

This cable ensures a safe and efficient power supply with its VDE and CE certifications. The H05VV-F cable standard guarantees flexibility and resistance to mechanical stress, while the 1.5 mm² conductor cross-section supports a rated current of 16 A at 250 V AC. The black PVC jacket provides protection against wear and tear, making it suitable for industrial and commercial settings.

Suitable for

• Modular power distribution systems
• Industrial machinery and equipment
• Commercial lighting and power networks
• Temporary power installations

Key specifications

• Product Type: Power Connection Cable
• Connector A: CEE 7/4 (Schuko) Male
• Connector B: Wieland GESIS GST18i3 Female
• Cable Length: 3 m
• Cable Standard: H05VV-F
• Number of Conductors: 3
• Conductor Cross-section: 1.5 mm²
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Cable Color: Black
• Jacket Material: PVC
• Ingress Protection: IP20
• Operating Temperature: -5°C to +70°C
• Approvals: VDE, CE

Recommendations

For optimal performance, ensure compatibility with Wieland GESIS CLASSIC systems. This cable is not halogen-free; consider alternative options if required for specific environments.
