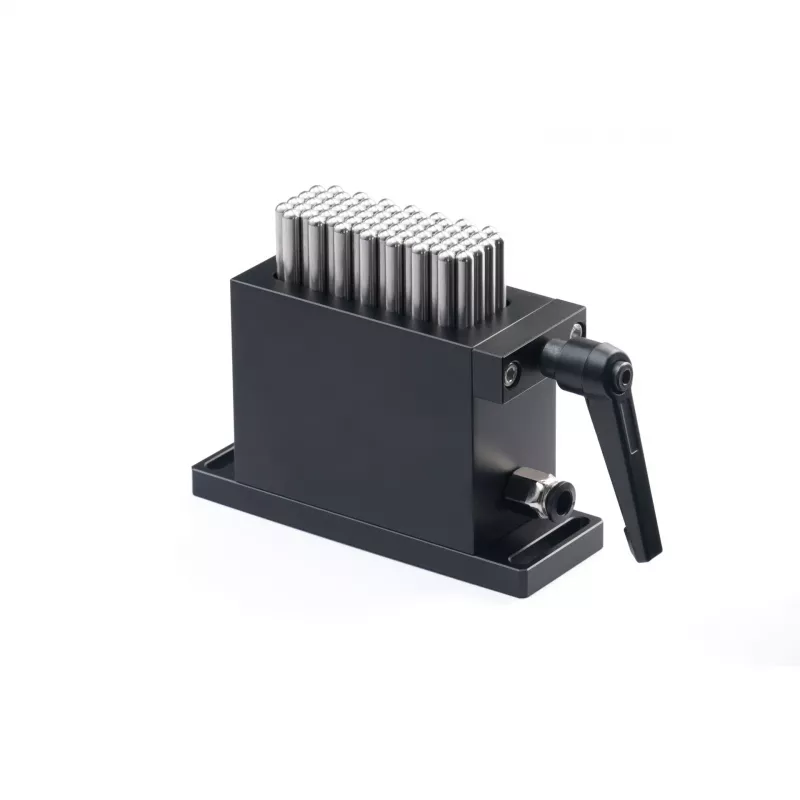

xTool Flexible Fixture for Laser Engravers

The xTool Flexible Fixture is a versatile workholding solution designed to securely hold irregular, small, or thin objects during laser engraving and cutting. Its magnetic base with adjustable metal pins adapts to various shapes, preventing material shifting and ensuring precise, consistent results. Compatible with xTool laser engravers such as D1 Pro, M1, S1, P2, and F1, this fixture enhances accuracy and efficiency for a wide range of projects.

Advantages

This fixture offers tool-free adjustment and setup, saving time and effort. The strong magnetic hold keeps pins and base securely in place, while the high-temperature resistant silicone base withstands laser engraving temperatures. With 28 adjustable pins, it accommodates workpieces up to 15 mm thick, providing flexibility for diverse applications. The 320 x 280 mm effective work area with 10 x 10 mm grid spacing allows precise positioning.

Suitable for

• Securing irregular objects like bottles, spheres, and jewelry
• Holding small items such as keychains, coasters, and tags
• Stabilizing thin materials like paper, cardboard, and fabric
• Repeatable positioning for batch production

Key specifications

• Product Type: Workholding Fixture
• Compatibility: xTool D1 Pro, M1, S1, P2, F1
• Holding Mechanism: Magnetic base with adjustable metal pins
• Base Material: High-temperature resistant silicone
• Pin Material: Stainless Steel / Aluminum Alloy
• Number of Pins: 28
• Pin Height: Approx. 15 mm (adjustable)
• Max Workpiece Thickness: Up to 15 mm
• Effective Work Area: 320 x 280 mm
• Grid Spacing: 10 x 10 mm
• Heat Resistance: Yes
• Magnetic Strength: Strong

Recommendations

For best results, ensure the workpiece is clean and flat against the pins. Adjust pin heights to match the contour of the object for maximum stability. This fixture is an essential accessory for any xTool laser engraver user looking to expand creative possibilities.
