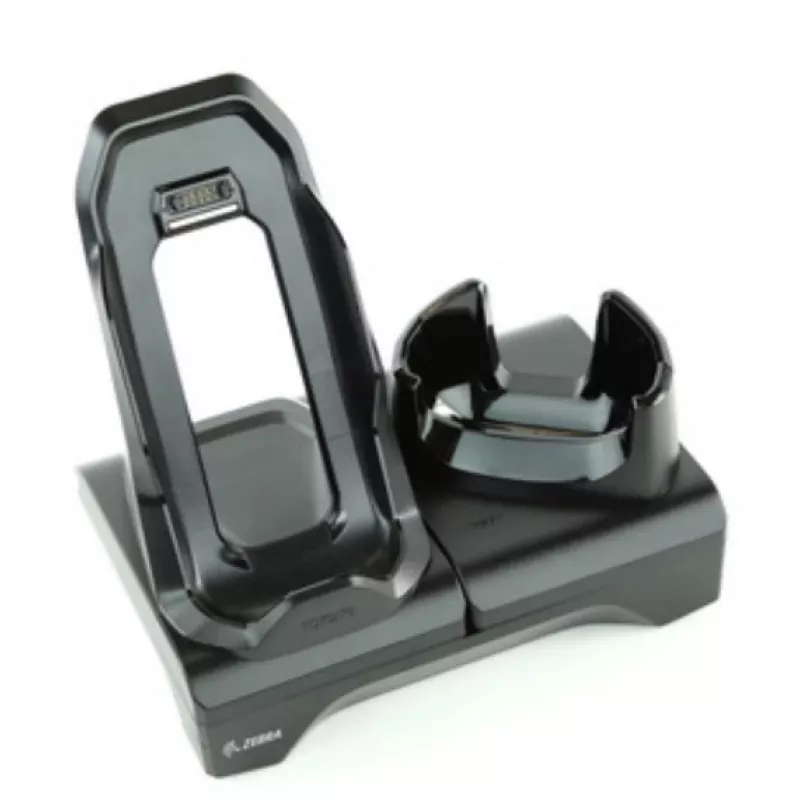

Zebra CRD-TC7X-SE2CO1-01 carregador para dispositivos móveis computador móvel preto AC interior

The Zebra CRD-TC7X-SE2CO1-01 is an indoor mobile device charger designed for Zebra TC7X series mobile computers. It provides dual cradle slots: the left slot supports charging plus data/communication via an integrated USB-to-Ethernet module, while the right slot is charge-only. The unit uses AC power and comes in a black finish suitable for professional environments.

Advantages

This cradle combines charging and wired network connectivity in a single compact base, with a built-in USB-to-Ethernet module offering 10/100/1000 Mbps speeds. An integrated mechanical switch lets you select between the USB-B port and the RJ45 Ethernet jack. LED indicators show module connectivity and link speed. The left and right slots are configured separately so you can charge one device while providing data connectivity to another.

Suitable for

• Desktop charging and wired network connection for Zebra TC7X mobile computers
• Workstations where one device needs both charging and Ethernet access while another only requires charging
• Indoor retail, warehouse, or office environments using AC-powered charging bases

Key specifications

• Model: CRD-TC7X-SE2CO1-01
• Compatibility: Zebra TC7X series mobile computers (supports devices with hand strap and stylus attached)
• Cradle slots: Left — USB/Ethernet + Charging; Right — Charge-only
• Integrated module: USB-to-Ethernet (MOD-MT2-EU1-01) built into cradle bottom
• Network speed: 10/100/1000 Mbps
• Switch: Mechanical selector between USB-B port and RJ45 Ethernet jack
• LEDs: Connectivity and speed indicators on module
• Power source: AC
• Color: Black

How to use

Place a TC7X device into the appropriate cradle slot: use the left slot when you require both charging and wired communication, and use the right slot for charge-only. Ensure the TC7X is oriented so that its back-side communication port aligns with the left cradle contacts; note that the left slot is not compatible with TC7X devices that have Snap-On accessories attached (for example, MSR or Trigger Handle). Connect the cradle to AC power and, if network connectivity is needed, connect either a USB-B cable or an RJ45 Ethernet cable to the selected port using the mechanical switch to choose the desired interface. Monitor the module LEDs to confirm link and speed status.

Recommendations

Use the left cradle slot for devices requiring simultaneous data and power; remove Snap-On accessories before docking in the left slot. For stable network performance, use a quality Ethernet cable and verify the mechanical switch is set to the intended interface.
