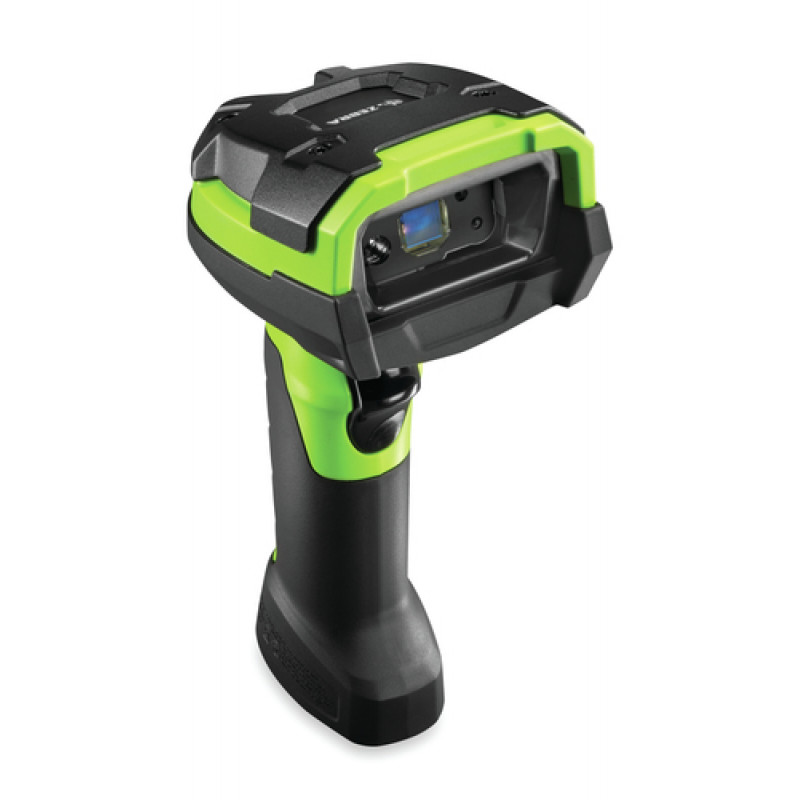

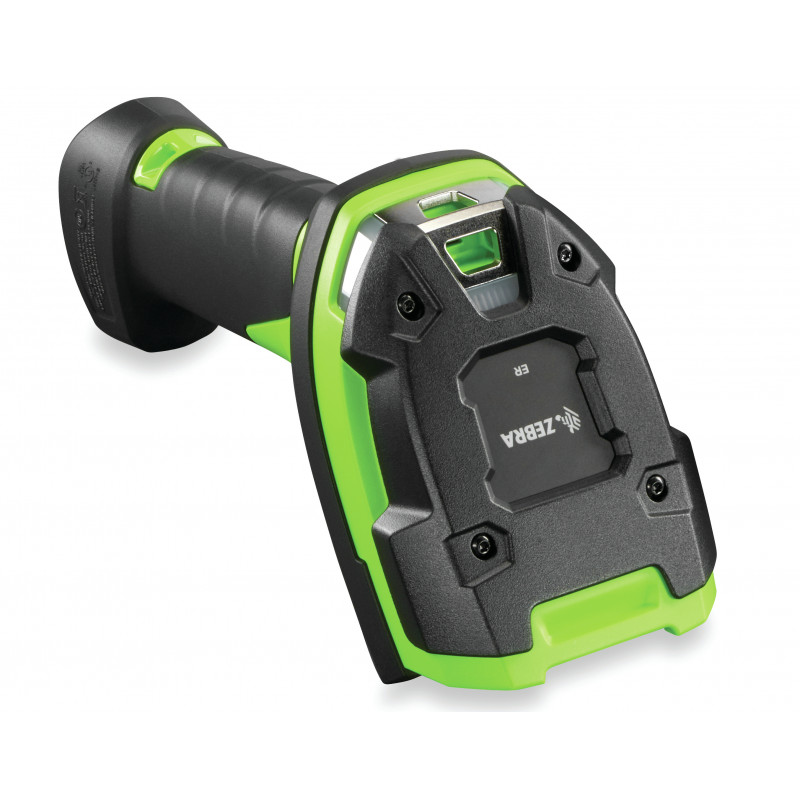

Zebra DS3608-DP - leitor de códigos de barras - portátil

Industrial handheld DPM imager engineered for the toughest scanning challenges, the Zebra DS3608-DP reads direct part marks, 1D and 2D barcodes on virtually any surface—even low-contrast or damaged labels. Its ultra-rugged design withstands 2.4 m drops to concrete and 5,000 tumbles, ensuring uninterrupted performance in manufacturing, warehousing, and field service.

Advantages

Capture DPM codes, standard barcodes, and high-density 2D symbols with a single device, reducing the need for multiple scanners. The IP65/IP67 sealing guards against dust and water immersion, while the industrial green and black housing resists harsh chemicals and repeated impacts. Wired USB, RS-232, and keyboard wedge interfaces provide flexible integration with existing systems.

Suitable for

• Automotive and aerospace part traceability
• Electronics and medical device manufacturing
• Warehouse receiving and shipping docks
• Field service and asset management

Key specifications

• Scanner type: Industrial handheld DPM imager (1D, 2D, DPM)
• Connectivity: Wired (USB, RS-232, Keyboard Wedge, IBM 468x/9x)
• Ruggedness: IP65/IP67, 2.4 m drop, 5,000 tumbles
• Image sensor: 640 x 480 pixels CMOS
• Field of view: Horizontal 31°, Vertical 23°
• Minimum print contrast: 15% MRD
• Operating temperature: -30°C to 50°C
• Feedback: Good decode LEDs, beeper, vibration

Recommendations

For environments where reliability and DPM decoding are non-negotiable, the DS3608-DP delivers Zebra's proven durability and performance. Pair with a rugged mounting stand for hands-free operation in production lines.
