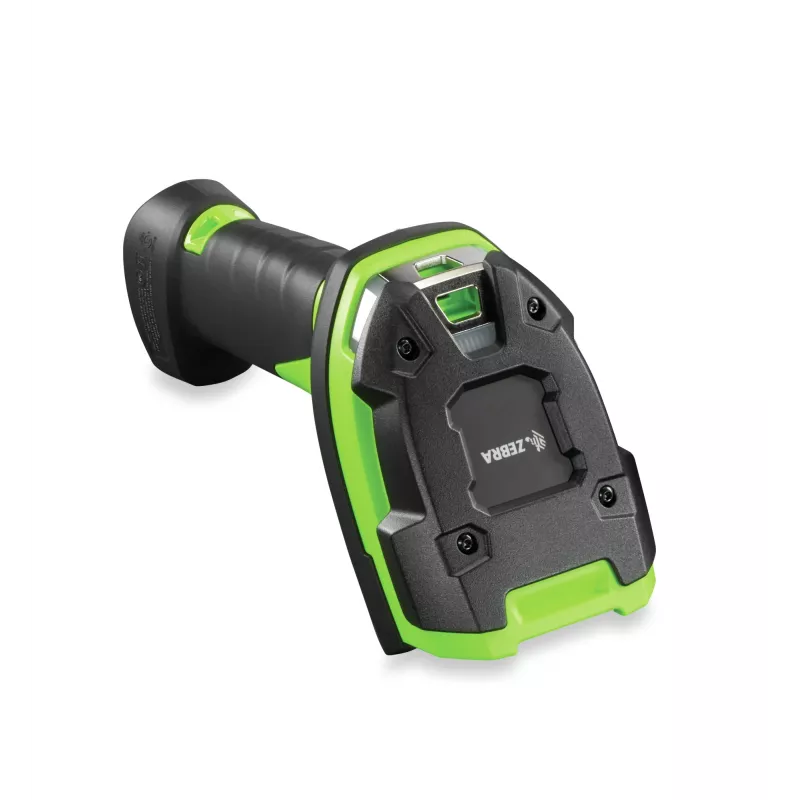

Zebra DS3678-SR leitor de códigos de barras de mão 1D/2D LED preto, verde

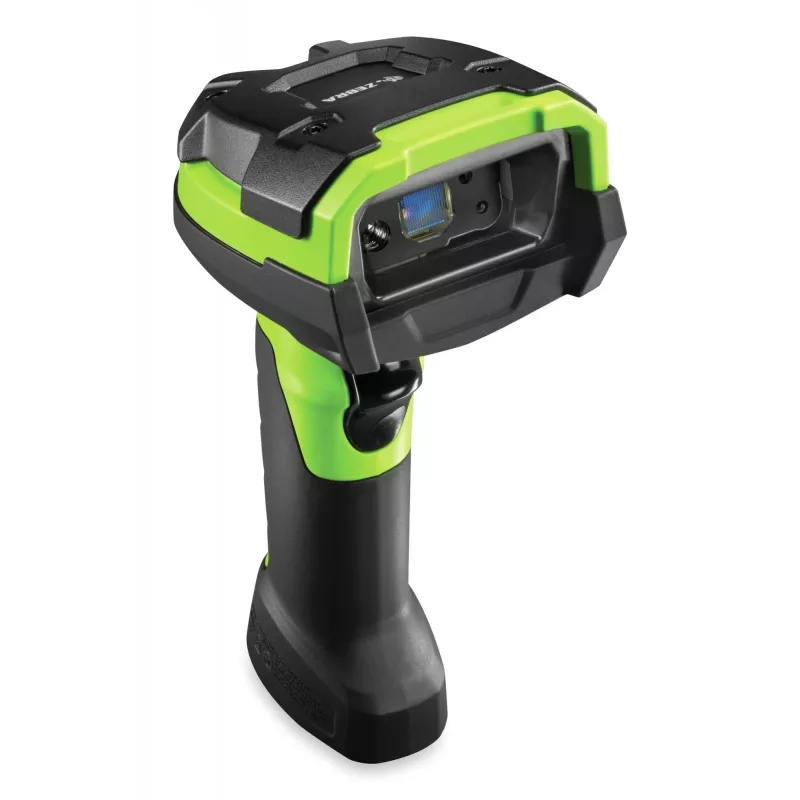

The Zebra DS3678-SR handheld bar code reader delivers ultra-rugged, high-performance scanning for standard range 1D and 2D barcode capture. Designed for use in warehouses and manufacturing floors, the corded DS3608-SR and cordless DS3678-SR models capture barcodes from near contact up to approximately 5 ft (1.5 m). The scanner is built to withstand harsh environments and provides dependable, fast and accurate scanning for both printed and electronic barcodes.

Advantages

The DS3678-SR offers superior scanning performance across virtually any 1D or 2D barcode, including damaged, dirty or poorly printed codes, with extended working range and rapid trigger response. Its ultra-rugged design includes an IP67 rating for dust and water resistance and an IP65-sealed cradle for a fully rugged cordless solution. Built-in management tools enable remote configuration, firmware updates, data formatting and battery monitoring for simplified device administration.

Suitable for

• Warehouse inventory and picking
• Manufacturing floor tracking and work-in-progress
• Receiving and shipping inspection
• Retail backroom and stockroom operations

Key specifications

• Model: Zebra DS3678-SR (corded counterpart: DS3608-SR)
• Scanner type: 1D/2D
• Sensor type: LED
• Working range: up to ~5 ft / 1.5 m for standard range
• Durability: IP67 (scanner); IP65 (cradle)
• Connectivity: Wired & Wireless (USB, RS-232 and cordless options)
• Battery (cordless): 3100 mAh lithium‑ion (long-lasting)
• Weight: 0.407 kg
• Supported 1D codes: Code 93, Code 39, Code 128, Code 11, Codabar, GS1-128 (UCC/EAN-128), U.P.C., Plessey, MSI
• Supported 2D codes: Aztec, MicroPDF417, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR, PDF417, QR Code, TLC-39
• Colors: Black, Green
• MPN: DS3678-SR0F003VZWW

How to use

For cordless use, charge the scanner in its cradle and ensure the cradle is connected to the host via the chosen interface (USB or RS-232). Power on the scanner and aim the imager at the barcode; press the trigger to scan. For corded operation, connect the scanner directly to the host and point the scanner at the barcode, pulling the trigger to capture data. Use the included configuration utility or Zebra management tools to set data formatting, communication parameters and firmware updates.

Recommendations

Store and operate the DS3678-SR within the manufacturer’s specified temperature and humidity ranges. Clean the window regularly to maintain scan performance and inspect the cradle seal if operating in wet or dusty environments. Use Zebra’s configuration and remote management tools to keep firmware current and to monitor battery health for cordless units.
