Zebra FS20, alcance padrão, descodificador rápido, Ethernet, foco automático, iluminação branca

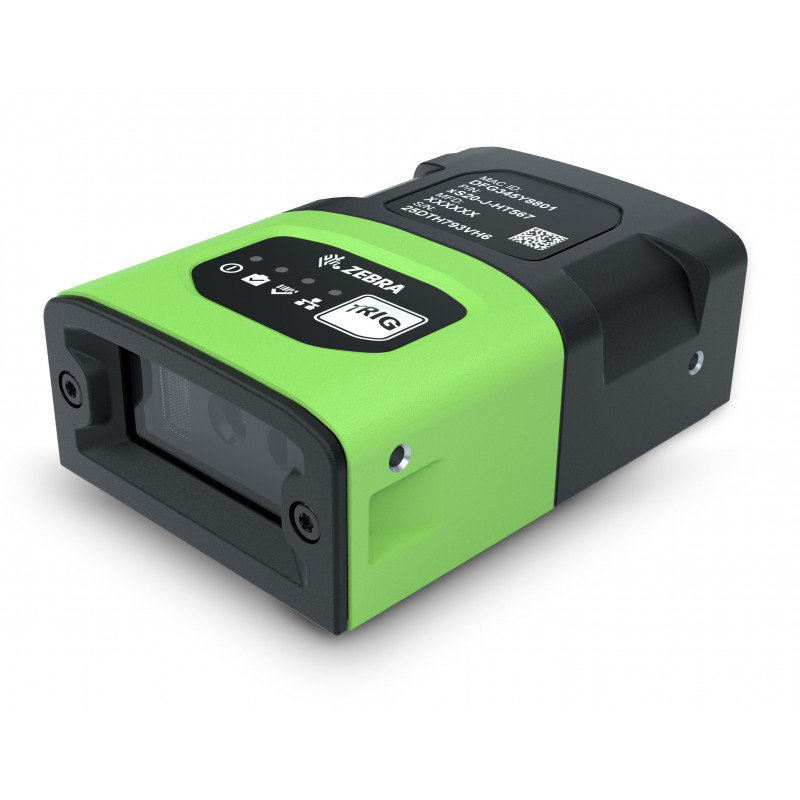

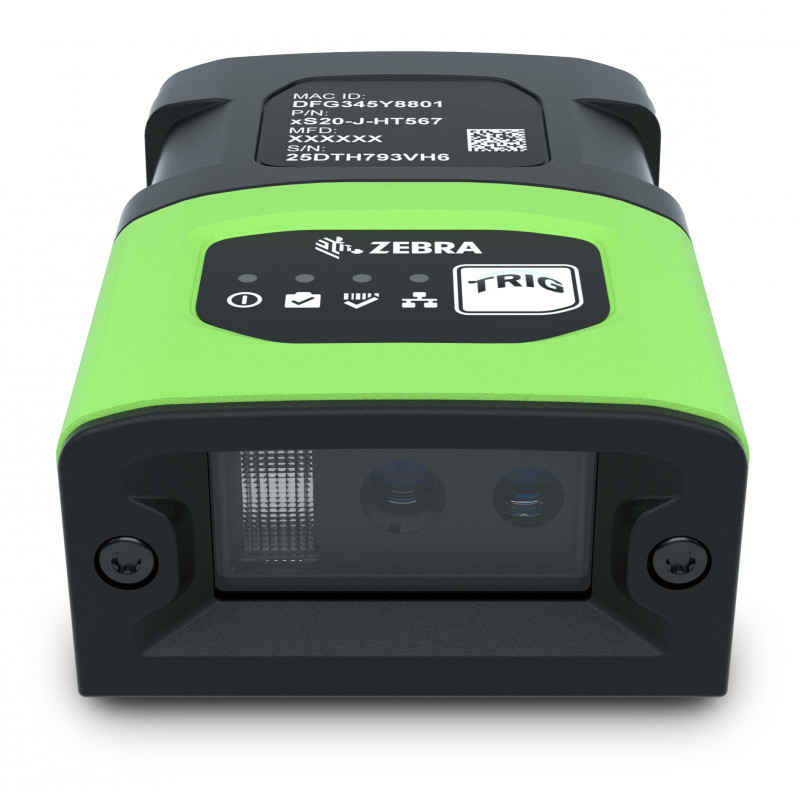

In fast-paced industrial environments, unread barcodes and slow decoding can bottleneck production lines and compromise traceability. The Zebra FS20-SR10Z2-3C00W fixed industrial barcode scanner eliminates these pain points with high-speed decoding and reliable performance, ensuring smooth operations even on challenging codes. This standard-range scanner features a fast decoder and auto focus, capturing 1D and 2D barcodes, OCR, and DPM with exceptional accuracy. Its white LED illumination provides consistent, high-contrast imaging, while the rugged IP65-rated housing withstands dust and water, making it ideal for demanding manufacturing and logistics settings. With Gigabit Ethernet connectivity and Power-over-Ethernet support, integration into existing networks is seamless. The scanner also includes digital I/O for automation and is compatible with Zebra Aurora™ and Savanna™ software, enabling advanced data management and real-time insights.

Who is it for

This scanner is built for manufacturing plants, warehouses, and logistics centers that require reliable, high-speed barcode reading in fixed positions. It suits system integrators and automation engineers seeking a robust, network-ready scanning solution for production lines, sorting systems, and quality control stations.

Main features

• Fast decoder for rapid processing of 1D and 2D barcodes, OCR, and DPM
• Auto focus and standard range for flexible scanning distances
• White LED illumination for clear, high-contrast images
• Gigabit Ethernet and USB-C connectivity for easy integration
• IP65-rated industrial aluminum housing for harsh environments
• Power over Ethernet (PoE) support simplifies installation
• Digital I/O (2 inputs, 2 outputs) for automation control
• Compatible with Zebra Aurora™ HMI and Savanna™ Data Services

Specifications

• Image sensor: 1.2 MP CMOS (1280 x 960)
• Processor: Quad-core 1.3 GHz
• Memory: 1 GB RAM, 4 GB Flash
• Operating temperature: 0°C to 45°C
• Power supply: 24V DC or PoE
• Mounting: M3 threaded holes
• Connectivity: Gigabit Ethernet, USB-C

Tips

Mount the scanner securely using the M3 threaded holes and position it at the optimal distance for your barcode size. For network deployments, use PoE to reduce cabling. Regularly clean the scanner window to maintain scan quality, and leverage Zebra Aurora™ for easy configuration and monitoring.
