Zebra Lind - Fonte de alimentação - Automóvel - DC 12 - 60 V

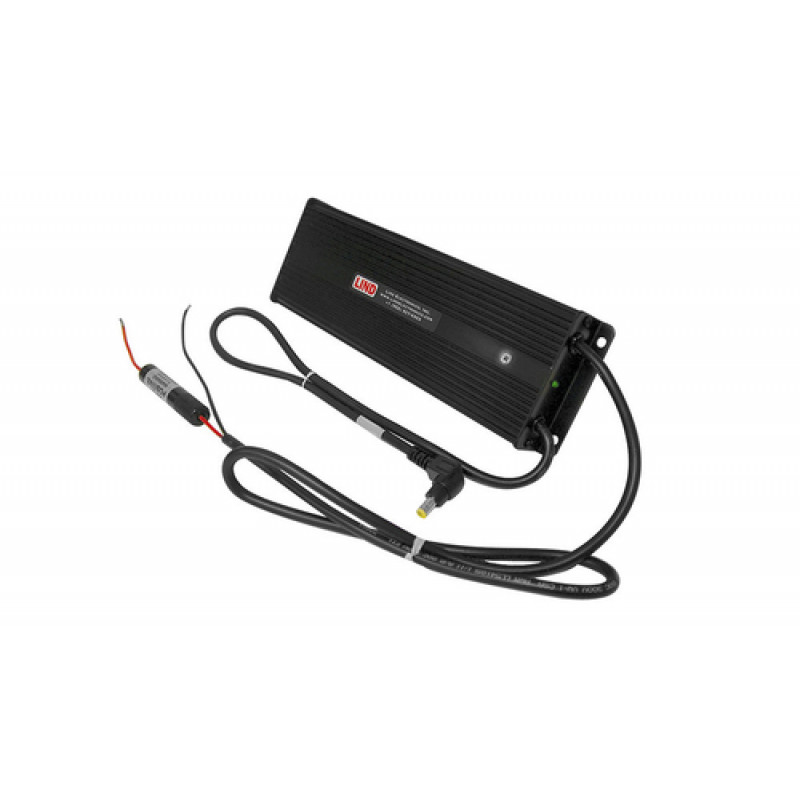

This DC-DC vehicle power adapter converts 12-60 V input to a regulated 15 V / 4.7 A output, delivering up to 70 W for Zebra mobile computers and tablets. With rugged aluminum housing, integrated mounting flanges, and a fused input cable, it provides reliable power in vehicles and forklifts.

Advantages

High efficiency (>90%) minimizes heat and power loss. Over-voltage, over-current, short-circuit, and over-temperature protection safeguard both adapter and device. The internal replaceable fuse and power status LED simplify maintenance and monitoring. Wide input range supports 12 V, 24 V, and 48 V vehicle electrical systems.

Suitable for

• Zebra ET5X series mobile computers
• Xplore XSLATE series tablets
• Forklifts, trucks, and service vehicles
• Industrial and field mobility applications

Key specifications

• Input voltage: DC 12 - 60 V
• Output voltage: DC 15 V
• Output current: 4.7 A
• Output power: 70 W
• Input connector: fused DC input cable (bare wire)
• Output connector: Zebra-compatible barrel connector
• Efficiency: >90%
• Operating temperature: -20°C to 50°C
• Enclosure: rugged aluminum with mounting flanges
• Input cable length: 1.8 m (6 ft)
• Output cable length: 1.2 m (4 ft)
• Certifications: CE, FCC, E-Mark
• Protection: over-voltage, over-current, short-circuit, over-temperature
• LED indicator: power status
• Input fuse: internal replaceable

Recommendations

For permanent installation in vehicles, use the integrated mounting flanges and connect the bare-wire input to a fused circuit. Verify compatibility with your Zebra device's power requirements before use.
