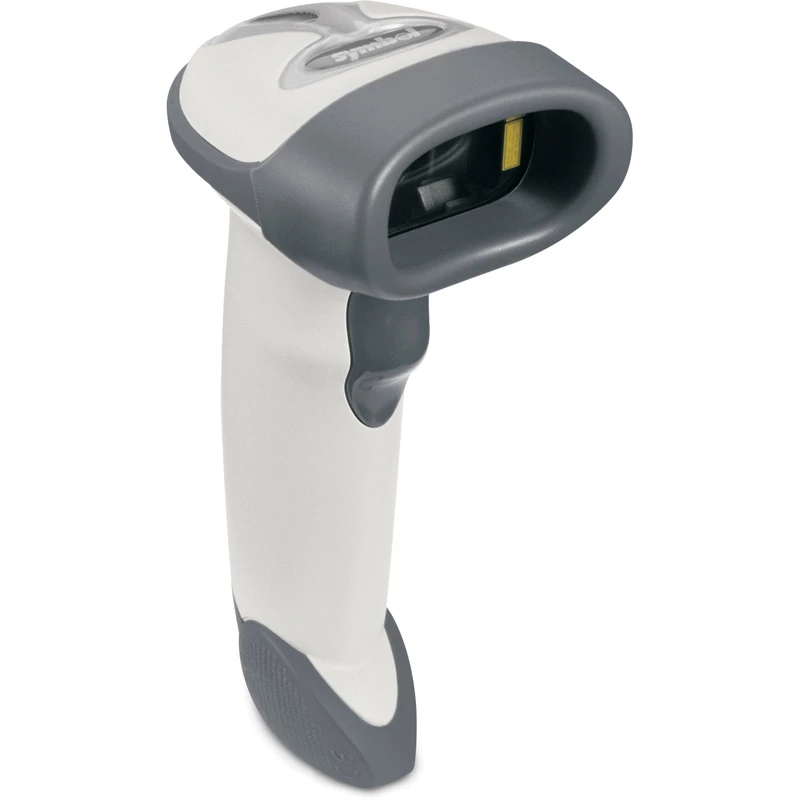

Motorola LS2208 laser branco

The Motorola LS2208 handheld barcode scanner delivers reliable, fast 1D barcode capture in an ergonomic, lightweight form. Its wide working range—from near contact up to 17 in (43 cm)—and durable single-board construction make it suitable for retail, healthcare, education and government environments. The scanner includes multiple on-board interfaces, a scratch-resistant tempered glass exit window and support for plug-and-play installation with a universal cable.

Advantages

The LS2208 offers accurate first-time capture of 1D barcodes and a wide working range that improves throughput at checkout and in inventory tasks. Its durable design meets 5 ft drop specifications and the tempered glass window is built for continuous use. Multiple on-board interfaces and Advanced Data Formatting (ADF) simplify integration and reduce the need for host software changes. The ergonomic, lightweight housing and optional Intellistand for hands-free presentation reduce user fatigue and speed operation.

Suitable for

• Retail point-of-sale scanning
• Inventory and stock management
• Hospital and clinical barcode tracking
• School and campus library circulation
• Government and administrative data capture

Key specifications

• Model: Motorola LS2208 (MPN: LS2208-SR20001R-UR)
• Sensor type: Laser (1D)
• Working range: near contact to 17 in (43 cm)
• Reading angles: skew ±30°, pitch −65° to 65°
• Interface: standard USB (universal cable)
• Operating voltage / current: 5 V DC, 130 mA
• Weight: 0.146 kg
• Colour: White
• EAN: 5711045226632

How to use

Connect the scanner to a host using the supplied universal cable and allow the system to recognize the device. Present a 1D barcode within the scanner's field of view and within the 17 in (43 cm) working range; the laser will read the code on first pass in typical conditions. For hands-free operation, mount the scanner on the Intellistand and place items in front of the window for presentation scanning. Use the scanner's configuration barcodes or setup utility to adjust interface settings and ADF rules if required.

Recommendations

Use the LS2208 in indoor environments free of excessive dust or moisture. Clean the tempered glass exit window regularly with a soft, lint-free cloth and a non-abrasive cleaner. For optimal performance, position barcodes within the recommended working range and avoid extreme angles outside the listed skew and pitch limits.
