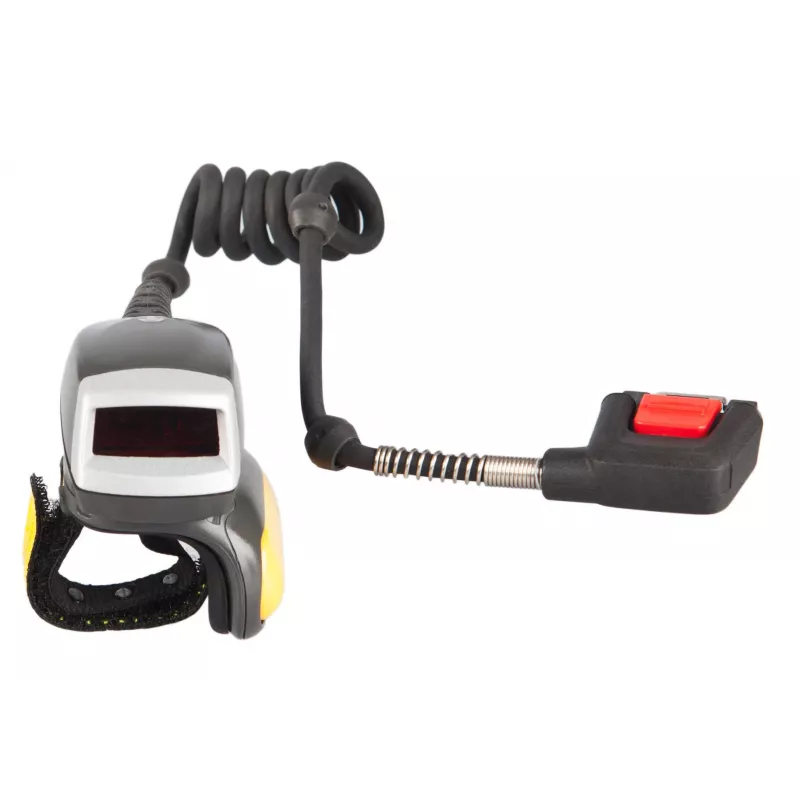

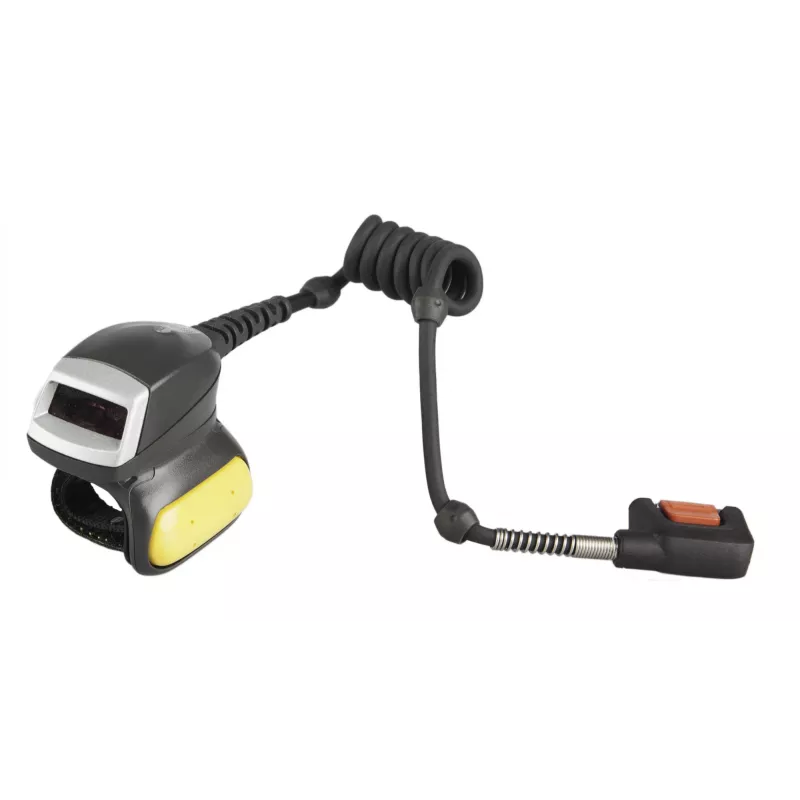

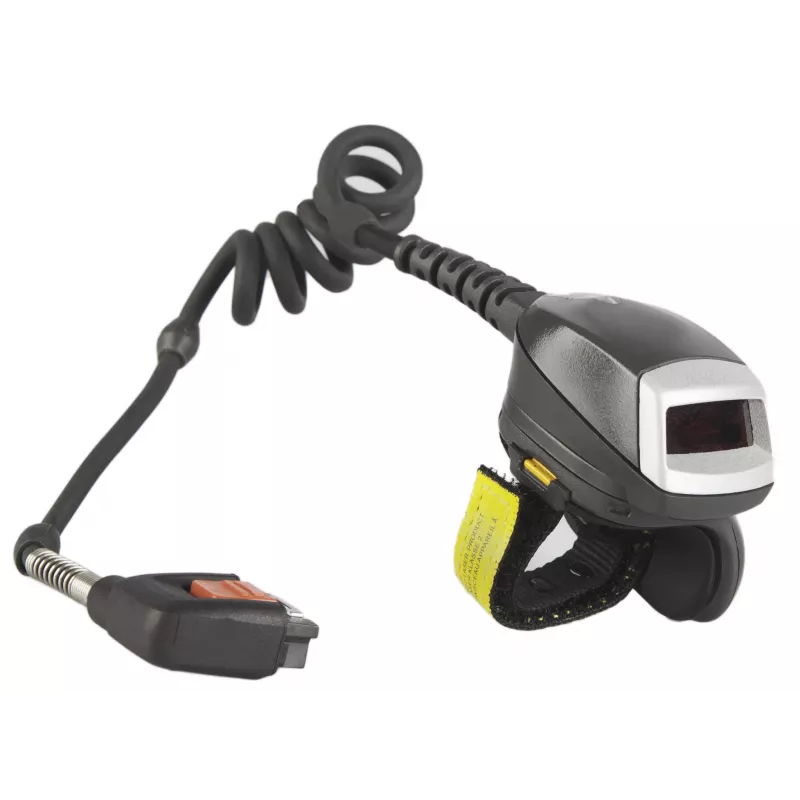

Zebra RS4000 Leitor de códigos de barras portátil 1D Laser Cinzento, Prateado

The Zebra RS4000 wearable bar code reader is a lightweight, wired 1D scanner with a laser sensor designed for hands-free scanning in industrial and commercial environments. With an IP54 rating for dust and water resistance and a compact weight of 56.7 g, the RS4000 is intended to be paired with wearable computers and headsets to provide mobile, continuous scanning while maintaining reliable performance at a maximum read rate of 116 reads/s. The device supports DC power input of 3.1–3.6 V and is available in grey and silver finishes.

Advantages

The RS4000 delivers fast 1D barcode capture via a laser sensor and wired connectivity, offering consistent read performance up to 116 reads per second. Its low weight and compact form factor make it comfortable for extended wear, while the IP54 rating provides protection against dust and splashes. The scanner integrates with Zebra wearable ecosystems to enable multimodal solutions that can increase worker productivity and reduce errors compared with speech-only wearable setups.

Suitable for

• Warehouse picking and packing
• Order fulfillment and sorting
• Inventory counting and cycle counting
• Light manufacturing assembly lines

Key specifications

• Scanner type: 1D
• Sensor type: Laser
• Maximum read rate: 116 reads/s
• Connectivity: Wired
• Ingress protection: IP54
• Weight: 0.0567 kg (56.7 g)
• Power input: DC 3.1–3.6 V
• 2D barcode support: Not supported
• Colour: Grey, Silver

How to use

Mount the RS4000 on the worker’s finger according to the manufacturer’s mounting instructions and connect the scanner to the compatible wearable computer or host via the wired interface. Aim the laser at 1D barcodes and trigger scans as required during normal workflow. Ensure the device is powered by a suitable DC source within the specified 3.1–3.6 V input range. For integration with multimodal solutions, pair the RS4000 with compatible Zebra wearable computers, ring scanners, headsets, and TekSpeech Pro software where applicable.

Recommendations

Use the RS4000 in conjunction with Zebra wearable systems for hands-free workflows; avoid exposing the scanner to heavy water jets or submersion despite its IP54 rating, and perform regular cleaning and inspection to maintain laser window clarity and scanning reliability.
