Zebra SP2002 Leitor de área de plano único apenas cubo alcance padrão meia-noite

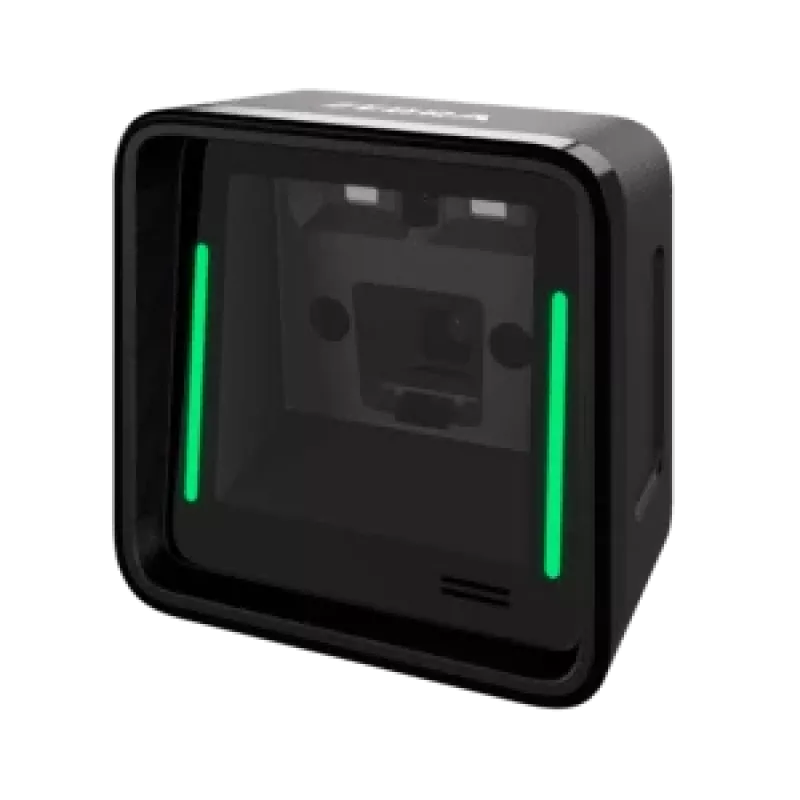

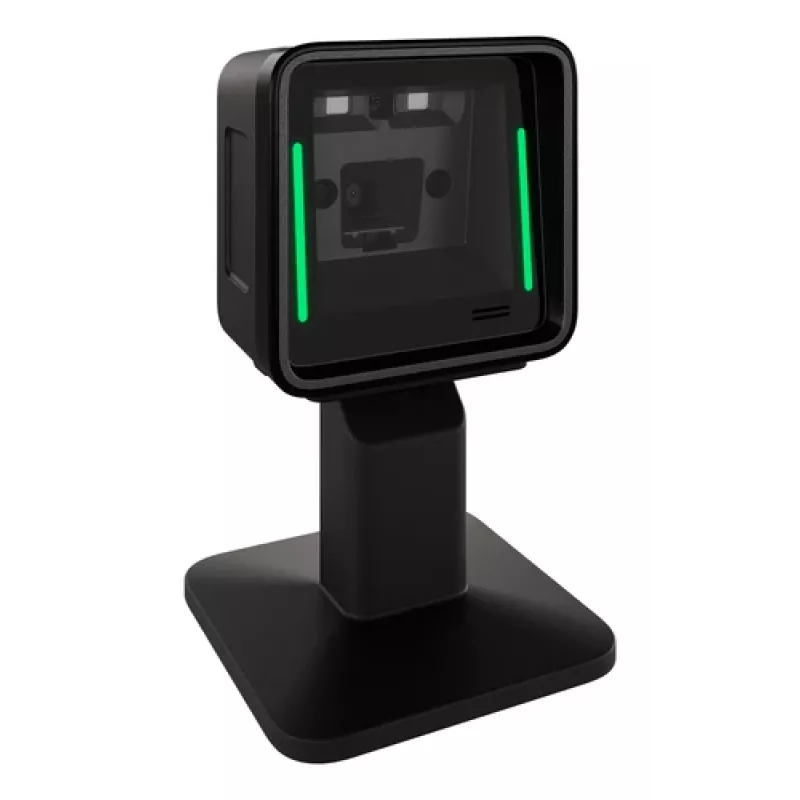

Fixed presentation barcode scanner with a 2D area imager delivering omnidirectional scanning in a compact cube form factor. The high-resolution 1280 x 800 pixel sensor captures 1D and 2D barcodes from printed labels or mobile screens with exceptional speed and accuracy.

Advantages

The SP2002 excels in high-throughput retail and hospitality environments. Its single-plane scan pattern and wide field of view (48° horizontal, 30° vertical) allow intuitive presentation scanning without precise aiming. The red LED illumination and aiming pattern ensure visible targeting, while the 25% minimum print contrast handles faded or damaged barcodes. Motion tolerance of 3.8 m/s captures fast-moving items, and the rugged design withstands multiple 1.2 m drops to concrete with an IP52 sealing against dust and moisture.

Suitable for

• Point-of-sale checkout counters
• Self-service kiosks and ticketing
• Mobile coupon and loyalty card scanning
• Light industrial workstations

Key specifications

• Scanner type: 2D area imager, fixed presentation
• Connectivity: USB (HID Keyboard, HID POS, Serial Emulation), RS-232
• Host interfaces: USB, RS-232
• Decoding capabilities: 1D, 2D, Digimarc
• Imager resolution: 1280 x 800 pixels
• Field of view: 48° horizontal, 30° vertical
• Illumination: Red LED (660 nm)
• Aiming pattern: Red LED (617 nm)
• Minimum print contrast: 25%
• Motion tolerance: 3.8 m/s (150 in./sec) for 13 mil UPC
• Drop specification: Multiple 1.2 m (4 ft.) drops to concrete
• Sealing: IP52
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Colour: Midnight Black
• Input voltage: 5 VDC ± 10%
• Power consumption (operating): 2.5W (typical)
• Mounting options: Flexible (countertop, wall-mount, under-counter with optional accessories)
• Range type: Standard Range

Recommendations

Ideal for retailers and hospitality businesses seeking a reliable, compact fixed scanner for high-volume presentation scanning. The SP2002's omnidirectional reading and durable construction ensure minimal downtime and maximum throughput at the point of sale.
