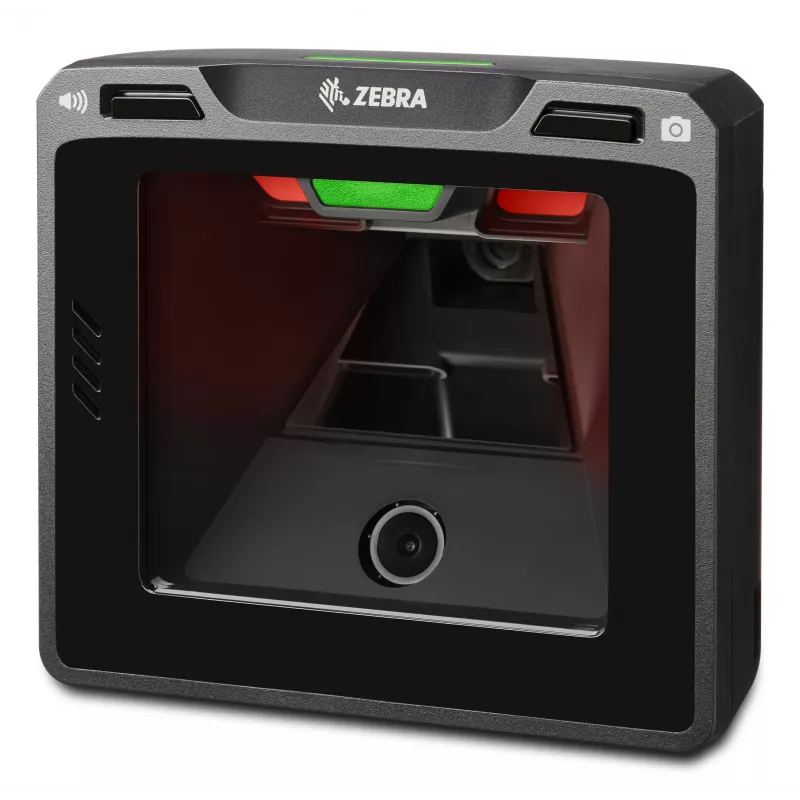

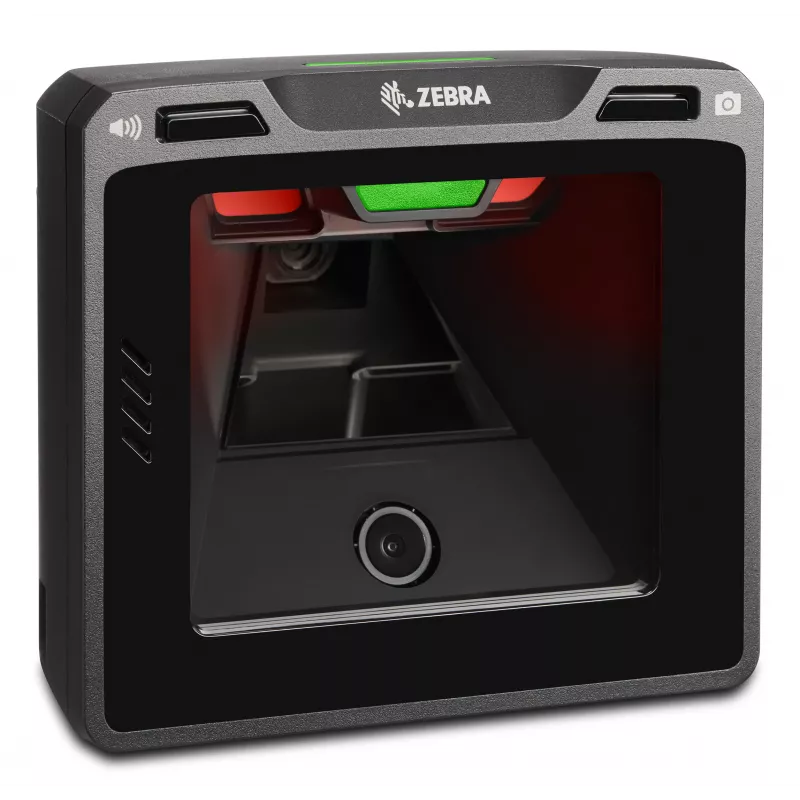

Zebra SP7208-V Kit USB: SP7208-SV00004ZCWW, CBA-U21-S07ZBR

Engineered for high-throughput retail and hospitality environments, the Zebra SP7208-SV4U2100ZCW delivers omnidirectional 2D scanning with a 48° horizontal field of view, capturing 1D, 2D, and PDF417 barcodes from any angle at speeds that keep lines moving.

Overview

This presentation scanner combines a rugged IP52-rated housing with a 1.2 m drop tolerance, ensuring reliable performance in busy checkout lanes and self-service kiosks. The included 7 ft. shielded USB cable (CBA-U21-S07ZBR) provides a secure wired connection, while the red LED aiming dot and illumination enable precise targeting even in challenging lighting conditions.

What stands out

• Omnidirectional scan pattern eliminates the need to orient barcodes, reducing operator fatigue and transaction time.
• Supports a wide range of 1D, 2D, and PDF417 symbologies, including UPC/EAN, Code 39, QR Code, and Data Matrix.
• IP52 sealing protects against dust and dripping water, while the 1.2 m drop specification withstands everyday knocks.
• USB-powered operation simplifies installation—no external power supply required.
• Versatile mounting options for desktop, countertop, or fixed installations adapt to any workspace.

Technical details

• Scanner type: Presentation Scanner
• Scan technology: 2D Imager
• Connectivity: Wired USB
• Host interface: USB
• Scan pattern: Omnidirectional
• Supported symbologies: 1D, 2D, PDF417 (UPC/EAN, Code 39, QR Code, Data Matrix, etc.)
• Colour: Black
• Drop specification: 1.2 m (4 ft.) to concrete
• IP rating: IP52
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Power source: USB powered (5.0 VDC ± 10%)
• Included cable: USB Cable (CBA-U21-S07ZBR, shielded, 7 ft. straight)
• Light source: Aiming pattern single red dot; illumination red LED
• Field of view: Horizontal 48°, Vertical 30°
• Minimum print contrast: 25%

Our verdict

The Zebra SP7208-SV4U2100ZCW is a dependable, high-performance presentation scanner that excels in demanding retail environments. Its rugged design, comprehensive barcode support, and plug-and-play USB connectivity make it a smart investment for businesses seeking efficiency and durability.
