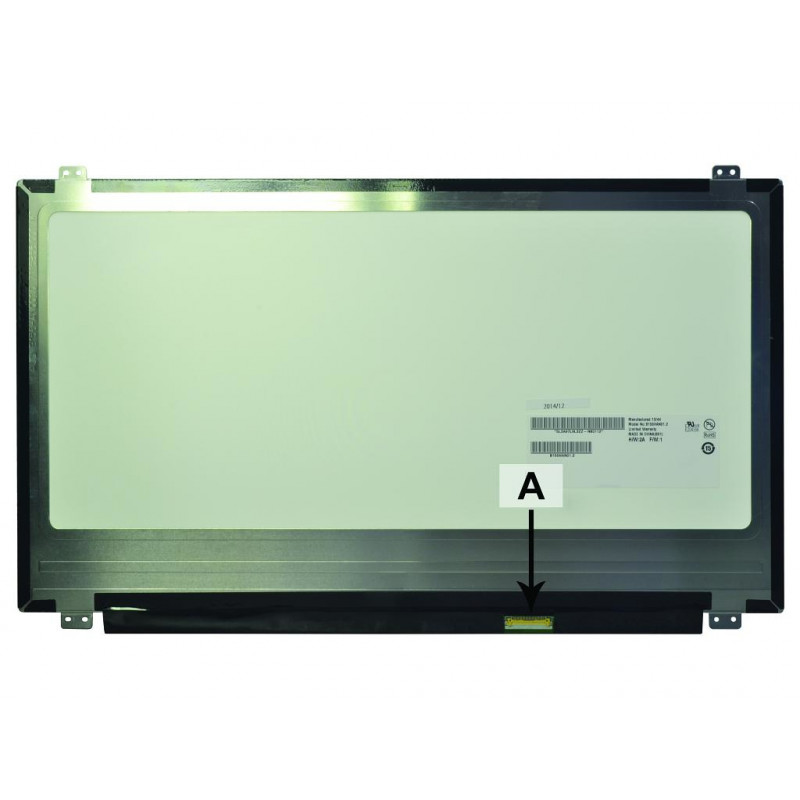

2-power 2P-02DL689 - Ecrã - 39,6 cm (15,6) - Full HD - 2-Power

Experience crisp, vibrant visuals with the 2-Power 2P-02DL689, a 15.6-inch Full HD display panel engineered for laptop replacement or upgrade. Featuring an IPS panel with 1920x1080 resolution, this screen delivers sharp details and accurate colors from wide viewing angles of 85° in all directions. The anti-glare matte finish reduces reflections, making it ideal for bright environments, while the LED backlight ensures consistent brightness of 250 cd/m². With a 60Hz refresh rate and 8ms response time, it handles everyday tasks, streaming, and productivity with ease. The eDP 30-pin connector on the bottom right ensures straightforward installation for compatible laptops. Backed by 2-Power's quality, this display is a reliable choice for restoring your laptop's visual performance.

Overview

The 2-Power 2P-02DL689 is a universal 15.6-inch Full HD IPS display panel designed to replace faulty screens or upgrade your laptop's visual capabilities. It features a 16:9 aspect ratio, LED backlighting, and a matte anti-glare surface that minimizes fingerprints and smudges. The panel's 30-pin eDP connector is positioned at the bottom right, making it compatible with a wide range of laptop models that require this standard configuration. With a typical brightness of 250 cd/m² and a contrast ratio of 700:1, images appear vivid and text remains sharp. The 45% NTSC color gamut ensures adequate color reproduction for general use, while the wide viewing angles allow comfortable viewing from various positions. This display does not include a touchscreen or frame/bezel, so you can reuse your existing bezel or purchase one separately if needed.

What stands out

• Full HD 1920x1080 resolution for crisp, detailed visuals
• IPS technology with 85/85/85/85 viewing angles for consistent colors from any angle
• Anti-glare matte finish reduces reflections for comfortable viewing in bright light
• LED backlight provides energy efficiency and uniform brightness
• Standard 30-pin eDP connector ensures compatibility with many laptop models
• 60Hz refresh rate and 8ms response time for smooth motion
• Universal fit for laptops requiring a 15.6" Full HD eDP 30-pin IPS display

Technical details

• Display diagonal: 39.6 cm (15.6 inches)
• Display resolution: 1920 x 1080 pixels (Full HD)
• Aspect ratio: 16:9
• Panel type: IPS
• Backlight type: LED
• Surface treatment: Anti-glare (matte)
• Connector type: eDP (Embedded DisplayPort)
• Connector pins: 30-pin
• Connector position: Bottom right
• Refresh rate: 60 Hz
• Brightness: 250 cd/m² (typical)
• Color gamut: 45% NTSC (typical)
• Response time: 8 ms (typical)
• Viewing angle: 85° horizontal, 85° vertical (L/R/U/D)
• Contrast ratio: 700:1 (typical)
• Touchscreen: No
• Frame/bezel included: No
• Compatibility: Universal for laptops requiring 15.6" Full HD eDP 30-pin IPS display

Our verdict

The 2-Power 2P-02DL689 is a solid choice for anyone needing a reliable 15.6-inch Full HD IPS display. Its anti-glare coating, wide viewing angles, and standard eDP connector make it a versatile replacement panel that delivers clear, vibrant visuals for everyday computing.
