AUO Ecrã 12,5, 1920x1080, 60Hz, mate, 30 pinos, direita, IPS

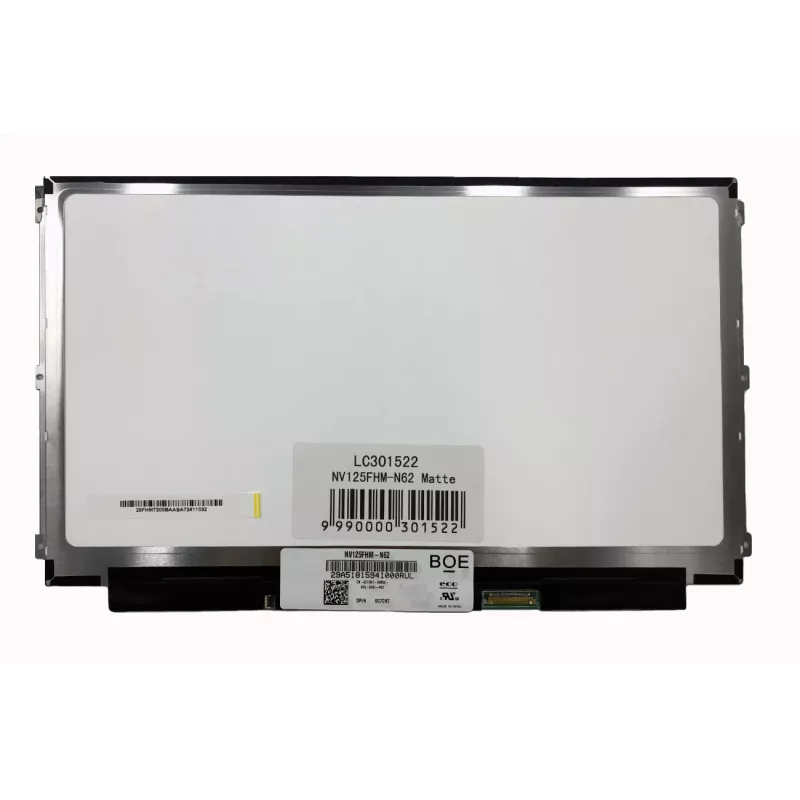

A cracked or dim laptop display can make a perfectly good machine unusable. The AUO LC301522 is a 12.5-inch Full HD IPS panel with a matte anti-glare finish, designed to restore crisp visuals and wide viewing angles to compatible laptops.

Who is it for

This panel is for technicians and DIY users replacing a faulty 12.5-inch 1920x1080 screen. It fits laptops that use a 30-pin eDP connector on the right side (viewed from the rear) and require a slim, standard-mount display.

Main features

• 12.5-inch IPS panel with 1920 x 1080 Full HD resolution
• 60 Hz refresh rate for smooth motion
• Matte (anti-glare) surface reduces reflections
• 30-pin eDP connector positioned on the right
• LED backlight for brightness and efficiency
• Wide viewing angles thanks to IPS technology

Specifications

• Display size: 12.5 inches
• Resolution: 1920 x 1080 (Full HD)
• Refresh rate: 60 Hz
• Panel type: IPS
• Surface finish: Matte (anti-glare)
• Backlight type: LED
• Aspect ratio: 16:9
• Data connector: 30-pin eDP
• Connector position: Right (from panel rear view)
• Technology: TFT Active Matrix
• Pixel configuration: RGB Vertical Stripe
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C

Tips

Before ordering, confirm your laptop's original panel model and connector position. The 30-pin eDP connector is common, but mounting brackets and cable length can vary. Handle the panel by its edges and avoid touching the surface to prevent damage.
