2-power 2P-LQ140T1JH01 - Ecrã - 35,6 cm (14) - HD

A cracked or dim laptop display can make even simple tasks frustrating. The 2-POWER 2P-LQ140T1JH01 is a direct replacement 14-inch HD panel that restores crisp, bright visuals to compatible notebooks. With a native resolution of 1366x768 and LED backlighting, it delivers clear text and vibrant images for everyday computing, presentations, and media playback.

Who is it for

This screen is ideal for technicians, IT departments, and DIY users who need to repair a laptop with a faulty 14-inch display. It suits systems that require a 30-pin eDP connector and a 1366x768 HD panel. Whether you are refurbishing a fleet of business laptops or fixing a personal device, this panel offers a cost-effective solution without compromising on quality.

Main features

• 14-inch diagonal (35.6 cm) active matrix TFT LCD
• HD resolution: 1366 x 768 pixels, 16:9 aspect ratio
• LED backlight for energy efficiency and consistent brightness
• Glossy surface finish for enhanced color saturation

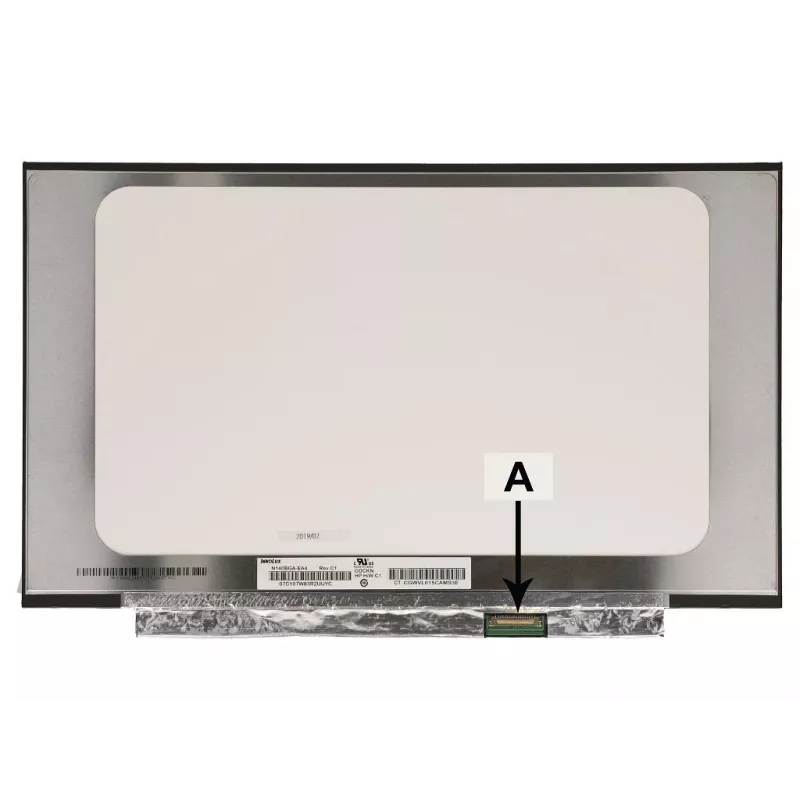

• 30-pin eDP connector, bottom right orientation
• 60 Hz refresh rate for smooth motion
• TN panel type with 8 ms response time
• Side mounting brackets for easy installation

Specifications

• Brand: 2-POWER
• Model: 2P-LQ140T1JH01
• Display size: 14 inches (35.6 cm)
• Resolution: 1366 x 768 (HD)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Glossy
• Connector: 30-pin eDP
• Connector position: Bottom right (when facing back of panel)
• Refresh rate: 60 Hz
• Brightness: 200-220 cd/m²
• Color gamut: 45% NTSC
• Response time: 8 ms
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Pixel density: ~112 PPI
• Mounting: Side brackets
• Compatibility: Laptops requiring 14-inch HD eDP 30-pin display

Tips

Before ordering, verify your laptop's screen size, resolution, and connector type. The 30-pin eDP connector is common in many ultrabooks and business notebooks. Handle the panel by its edges to avoid fingerprints or pressure damage. Test the screen before final assembly to ensure proper function. For best results, use an anti-static mat and grounding strap during installation.
