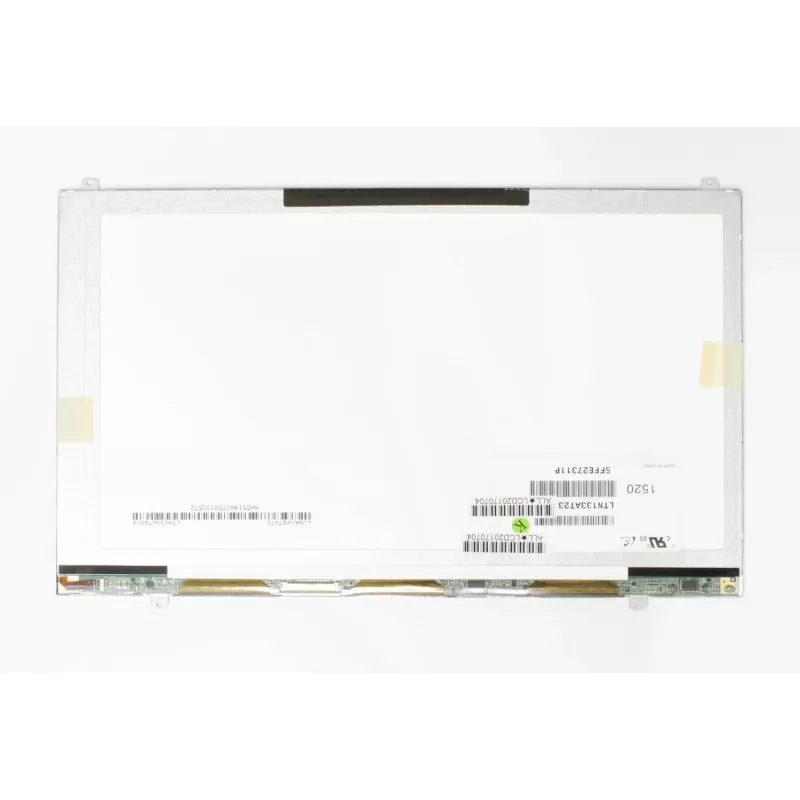

Ecrã LG 13,3", 1366x768, 60Hz, mate, 40 pinos, esquerdo

A cracked or dim laptop display can make a perfectly good machine unusable. This LG 13.3-inch LCD panel restores a bright, clear picture without replacing the whole laptop. It is a direct-fit part for compatible models, with a matte surface that reduces glare in offices, classrooms, or on the go.

Who is it for

This panel is for repair technicians, IT departments, and confident DIYers who need a reliable replacement screen. It fits laptops that use a 13.3-inch WXGA (1366x768) panel with a 40-pin LVDS connector on the left side (viewed from the back).

Main features

• 13.3-inch TFT active matrix LCD with LED backlight
• WXGA resolution: 1366 x 768 pixels, 16:9 aspect ratio
• 60 Hz refresh rate for smooth motion
• Matte (anti-glare) finish to reduce reflections
• 40-pin LVDS data connector, positioned left
• Typical brightness: 200 cd/m²
• Typical contrast ratio: 400:1
• Response time: 8 ms
• Viewing angles: 45/45/20/40 degrees (H/V)
• Color gamut: 45% NTSC, 262K colors (6-bit)

Specifications

• Display size: 13.3 inches
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Surface finish: Matte (anti-glare)
• Backlight type: LED
• Panel technology: TFT active matrix
• Connector type: 40-pin LVDS
• Connector position: Left (viewed from back)
• Brightness (typical): 200 cd/m²
• Contrast ratio (typical): 400:1
• Response time (typical): 8 ms
• Viewing angle (H/V): 45/45/20/40 degrees
• Color gamut (typical): 45% NTSC
• Display colors: 262K (6-bit)

Tips

Before ordering, confirm your laptop's original screen size, resolution, connector type, and connector position. A 40-pin LVDS connector is common, but the position must match. If you are unsure, consult your laptop's service manual or a professional technician.
