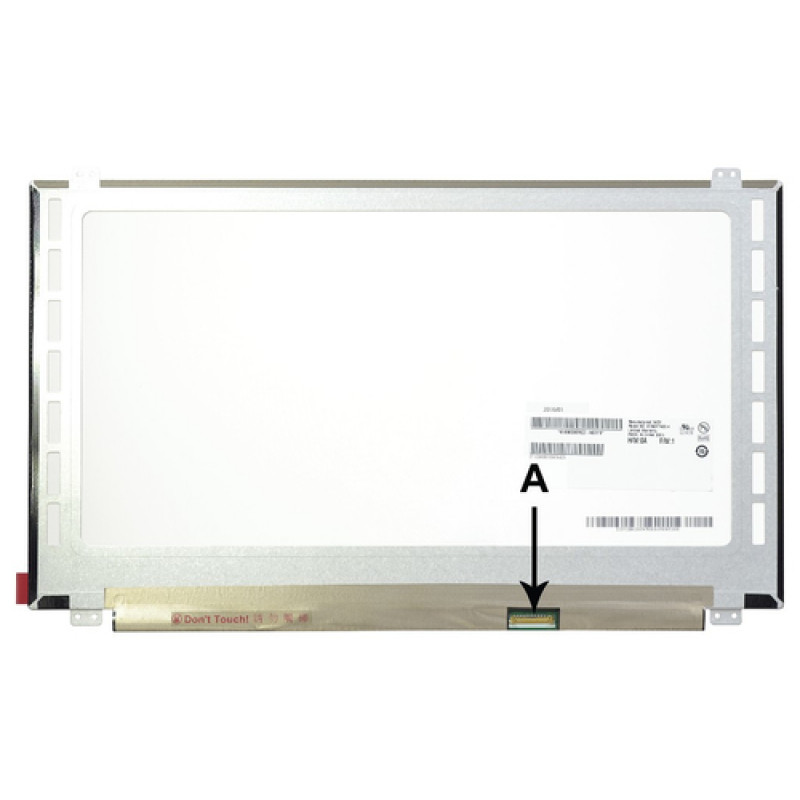

2-power 2P-LTN156HL02-302 - Ecrã - 39,6 cm (15,6") - Full HD

When a laptop display fails, finding a replacement that matches the original's visual character can be a gamble. The 2-Power 2P-LTN156HL02-302 eliminates that uncertainty: it is built around the Samsung LTN156HL02-302 panel, a 15.6-inch Full HD TN module prized for its low latency and dependable colour. Unlike generic panels that may shift hues or wash out at angles, this screen delivers the same crisp 1920x1080 image and fast 8 ms response that many mid-range notebooks shipped with from the factory.

Highlights

• Exact fit for laptops using the Samsung LTN156HL02-302 30-pin eDP panel
• Full HD 1920x1080 resolution on a 15.6-inch diagonal (39.6 cm)
• Matte anti-glare surface reduces reflections in bright rooms
• LED backlight with 220 cd/m² typical brightness
• 60 Hz refresh rate and 8 ms response time for smooth motion
• 45% NTSC colour gamut for accurate everyday colours

In daily use

Installing this screen restores a laptop to its original clarity. The TN technology keeps pixel transitions quick, so scrolling through documents, coding, or watching video feels immediate. The matte coating diffuses overhead lighting and window glare, making it comfortable to work in offices, classrooms, or on the go. With a 400:1 contrast ratio and 220 cd/m² brightness, text remains readable even in moderately lit environments. The 30-pin eDP connector is standard for this panel, simplifying installation for technicians and confident DIYers.

Full specifications

• Panel model: Samsung LTN156HL02-302
• Screen size: 15.6 inches (39.6 cm)
• Resolution: Full HD (1920 x 1080)
• Panel technology: TN (Twisted Nematic)
• Aspect ratio: 16:9
• Backlight type: LED
• Surface finish: Matte (anti-glare)
• Connector type: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² (typical)
• Contrast ratio: 400:1 (typical)
• Colour gamut: 45% NTSC
• Viewing angles: 45°/45°/15°/35° (H/V)
• Response time: 8 ms (typical)
• Display type: TFT-LCD
• Application: Laptop replacement screen

Final note

For IT departments, repair shops, or individual owners, the 2-Power 2P-LTN156HL02-302 offers a reliable path back to a fully functional laptop. Its adherence to the original Samsung panel specifications means no surprises in colour, brightness, or fit.
