ABB conjunto de terminais para interruptores seccionadores OZXTA G2/G3, 2,5-50 mm², 3 polos, terminal de parafuso

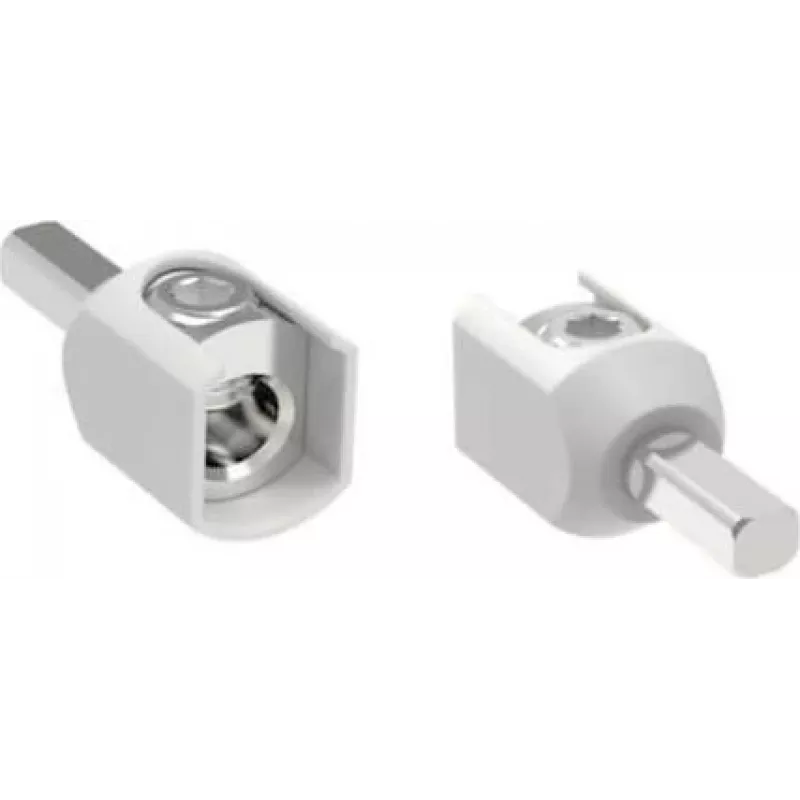

This terminal set provides a secure screw clamp connection for ABB OZXTA switch-disconnectors, accommodating conductors from 2.5 to 50 mm². Engineered for frame sizes G2 and G3, it ensures reliable electrical performance in demanding industrial environments.

Advantages

The set includes three terminals, perfectly matched to OZXTA50, OZXTA63, OZXTA75A, and OZXTA80 devices. Constructed from polyamide and copper, it offers excellent mechanical strength and conductivity. Screw clamp technology provides vibration-resistant connections, reducing maintenance needs. RoHS compliance and adherence to IEC 60947-3 guarantee safety and environmental responsibility.

Suitable for

• ABB OZXTA50 switch-disconnectors
• ABB OZXTA63 switch-disconnectors
• ABB OZXTA75A switch-disconnectors
• ABB OZXTA80 switch-disconnectors
• Frame sizes G2 and G3

Key specifications

• Conductor cross-section: 2.5 - 50 mm²
• Number of terminals: 3
• Connection type: Screw clamp
• Material: Polyamide (PA), Copper
• Colour: Grey / Metallic
• Rated current (compatible device): 50 A - 80 A
• Rated voltage (compatible device): Up to 1000 V AC / 750 V DC
• Mounting position: Internal
• Standards: IEC 60947-3
• RoHS compliant

Recommendations

For optimal performance, install this terminal set only with ABB OZXTA switch-disconnectors of the specified frame sizes. Verify conductor cross-sections and torque settings according to the device manual. Store in a dry, clean environment to preserve contact integrity.
