Adaptador de módulo de transferência DeLOCK M12 8 pinos codificação A fêmea para barra de terminais de 9 pinos

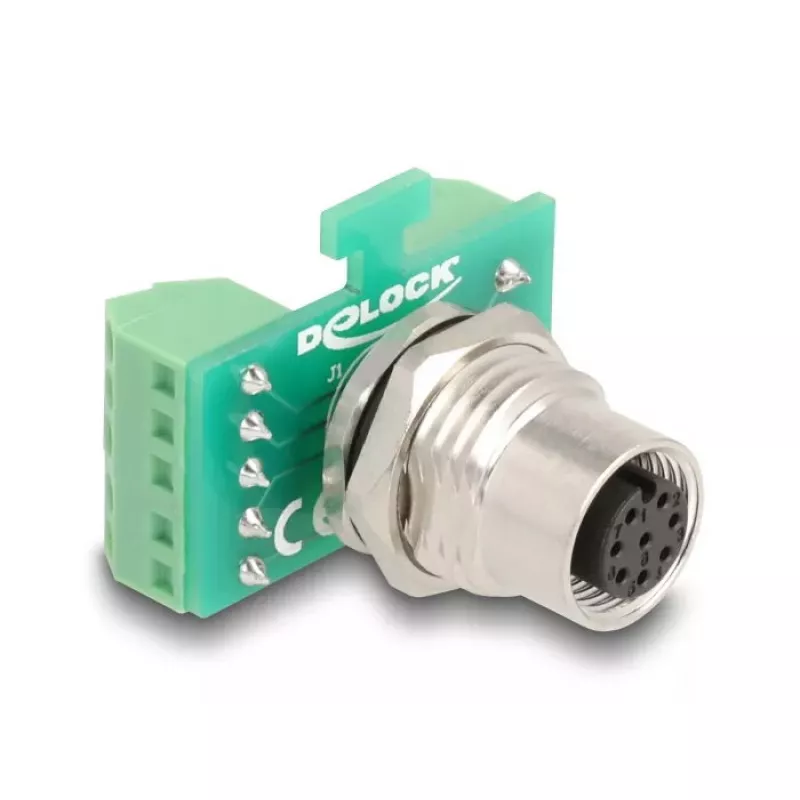

The DeLOCK M12 Transfer Module Adapter provides a reliable connection between devices with M12 connectors and electrical circuits using a 9-pin terminal block. It features an 8-pin A-coded female M12 connector and a compact housing (33.1 × 52.1 × 24.9 mm) in green finish, designed for use where a secure, space-saving interface is required.

Advantages

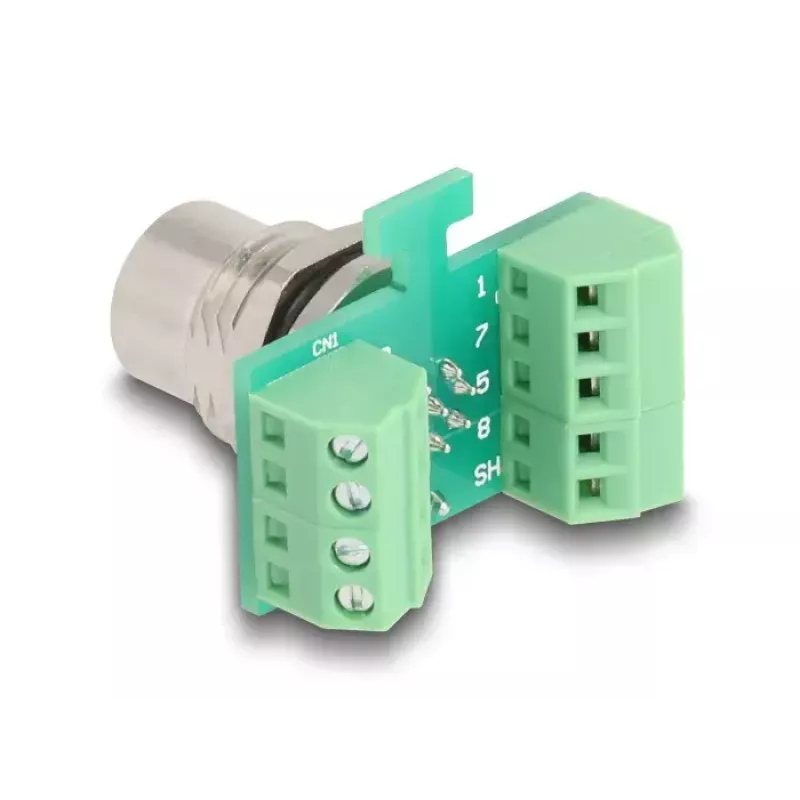

The adapter offers a compact design suitable for installations in confined spaces such as switch cabinets. It converts an 8-pin A-coded female M12 interface to a 9-pin terminal block, enabling straightforward wiring to control systems, sensors or field devices. Its simple construction supports dependable electrical contact and easy mounting.

Suitable for

• Industrial automation and control systems
• Building automation interfaces
• Connecting sensors and field devices to terminal-based circuits
• Installations inside switch cabinets and control panels

Key specifications

• Connector: 8-pin A-coded female M12
• Output: 9-pin terminal block
• Dimensions: 33.1 mm (W) × 52.1 mm (D) × 24.9 mm (H)
• Colour: Green
• Brand: DELOCK, MPN: 60663, EAN: 4043619606634

How to use

Mount the adapter in the required position inside a switch cabinet or panel and secure it as appropriate for your installation. Connect the M12 male cable from the device to the 8-pin A-coded female M12 connector on the adapter. Wire the corresponding signals and power lines to the 9-pin terminal block according to your system wiring diagram, ensuring correct polarity and secure terminal connections.

Recommendations

Verify compatibility of pin assignments between the M12 device and your terminal block wiring before installation. Use appropriate strain relief and adhere to local electrical installation standards when wiring inside cabinets or control panels.
