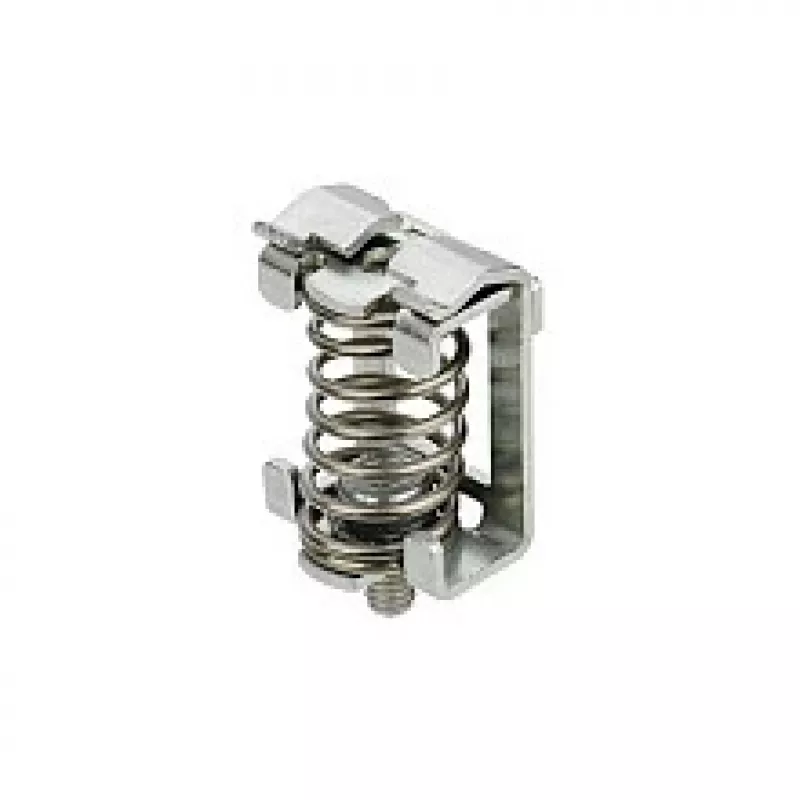

Abraçadeira de blindagem Weidmüller SC KLBÜ 4-13,5 mm, abraçadeira para diâmetro de cabo 4-13,5 mm, metálico, ligação por parafuso

The Weidmüller Shield Clamp SC KLBÜ 4-13.5 is a high-quality clamping bracket designed for reliable grounding of cable shields in EMC-sensitive applications. This robust shield clamp ensures a secure and low-impedance connection between the cable shield and the grounding system, effectively suppressing electromagnetic interference. Suitable for cable diameters from 4 to 13.5 mm, it is ideal for use in control cabinets, switchgear, and industrial installations.

Advantages

• Reliable EMC shielding: Provides a low-impedance path for interference currents, ensuring electromagnetic compatibility.
• Wide clamping range: Accommodates cables from 4 to 13.5 mm diameter, offering flexibility for various cable types.
• Robust construction: Made of galvanised steel for durability and corrosion resistance.
• Easy installation: Direct mounting with screw connection simplifies assembly and maintenance.
• Wide temperature range: Operates reliably from -40 °C to +120 °C, suitable for harsh environments.

Suitable for

• Grounding of cable shields in control cabinets and distribution panels
• EMC-compliant installations in industrial automation and machinery
• Telecommunications and data transmission systems requiring shield bonding
• Power supply and signal cable shielding in electrical engineering

Key specifications

• Product Type: Shield Clamp / Clamping Bracket
• Series: SC KLBÜ
• Clamping Range (Cable Diameter): 4 - 13.5 mm
• Mounting Type: Direct Mounting
• Connection Method: Screw Connection
• Material: Steel, Galvanised / Zinc-plated
• Number of Cables: 1
• Operating Temperature Range: -40 °C to +120 °C
• Protection Degree: IP20 (when mounted)
• EMC Compatibility: Yes
• RoHS Compliance: Yes
• REACH Compliance: Yes
• Colour: Metallic (Silver)
• Application: Grounding of cable shields for EMC
• Type of Fastening: Screw
• Conductor Connection Type: Shield connection

Recommendations

For optimal EMC performance, ensure the shield clamp is mounted on a clean, conductive surface and the cable shield is properly stripped and inserted. Use appropriate tightening torque for the screw connection as per manufacturer guidelines. This product is part of the Weidmüller SC KLBÜ series, known for high-quality industrial connectivity solutions.
