Abraçadeira para cabo DeLOCK 66442

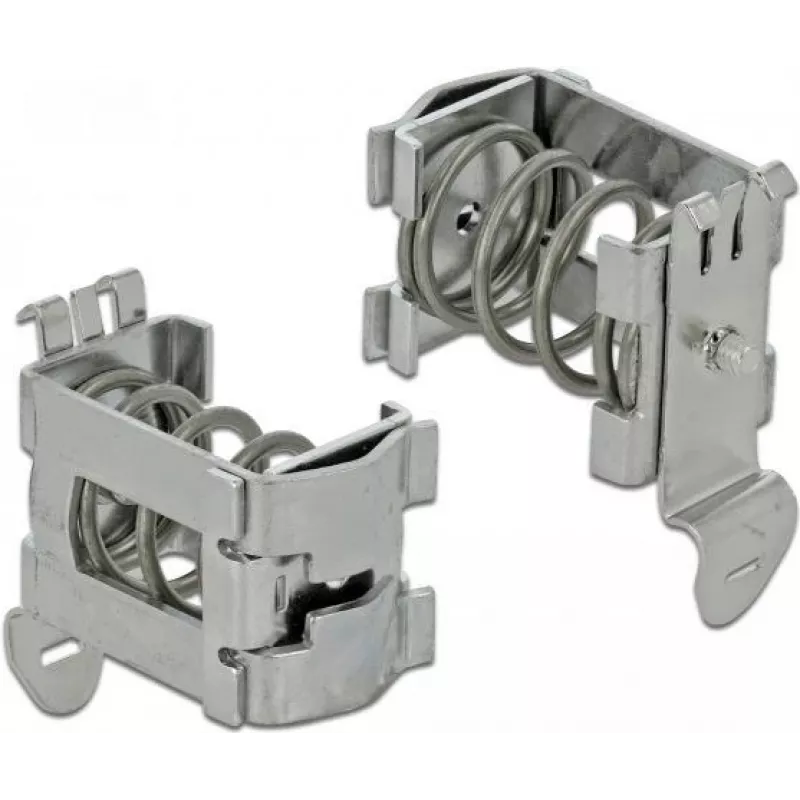

The DeLOCK 66442 cable clamp is a metal shield clamp designed to fasten cables with diameters of 10–20 mm to a 35 mm DIN rail. It also functions as an EMC shield, allowing unwanted electrical or electromagnetic disturbances to be dissipated to the DIN rail. The clamp measures approximately 26 mm in width, 40 mm in depth and 24 mm in height and is made of durable metal for long-lasting use.

Advantages

The metal construction provides mechanical strength and reliable fixation of cables. The clamp’s design enables both mechanical attachment and electromagnetic shielding when connected to the DIN rail. Compact dimensions make it suitable for space-limited distribution boards or cabinets.

Suitable for

• Fastening round cables with diameters of 10–20 mm
• Mounting cable runs on a 35 mm DIN rail
• Providing EMC shielding for cables inside switchgear and control cabinets

Key specifications

• Brand: DELOCK
• Model/MPN: 66442
• EAN: 4043619664429
• Material: Metal
• Cable diameter range: 10–20 mm
• DIN rail compatibility: 35 mm
• Dimensions (W×D×H): approx. 26 × 40 × 24 mm

How to use

To fasten a cable, press the clamp’s spring down with a suitable tool such as a screwdriver, insert the cable into the clamp and release the spring so it securely holds the cable. To release the cable, press the spring down while pulling the cable out. The clamp can also be secured by screwing it to the DIN rail; for this purpose an Allen key size HX3 is required.

Recommendations

Ensure the clamp makes firm contact with the DIN rail for effective EMC shielding. Verify the cable diameter fits within the 10–20 mm range before installation and avoid overtightening when using the screw mounting to prevent deformation of the clamp.
