SCOT ES-S12AC/DC-B PROFI fechadura elétrica simétrica com trinco, 12V AC/DC, Fail-Secure, força de retenção de 3000N, cinzento/prateado

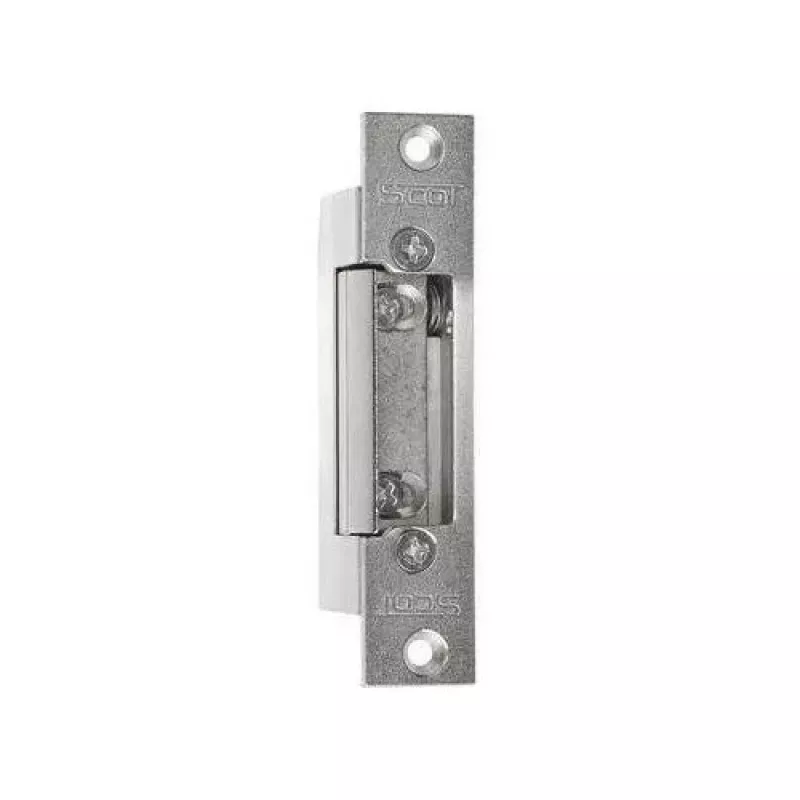

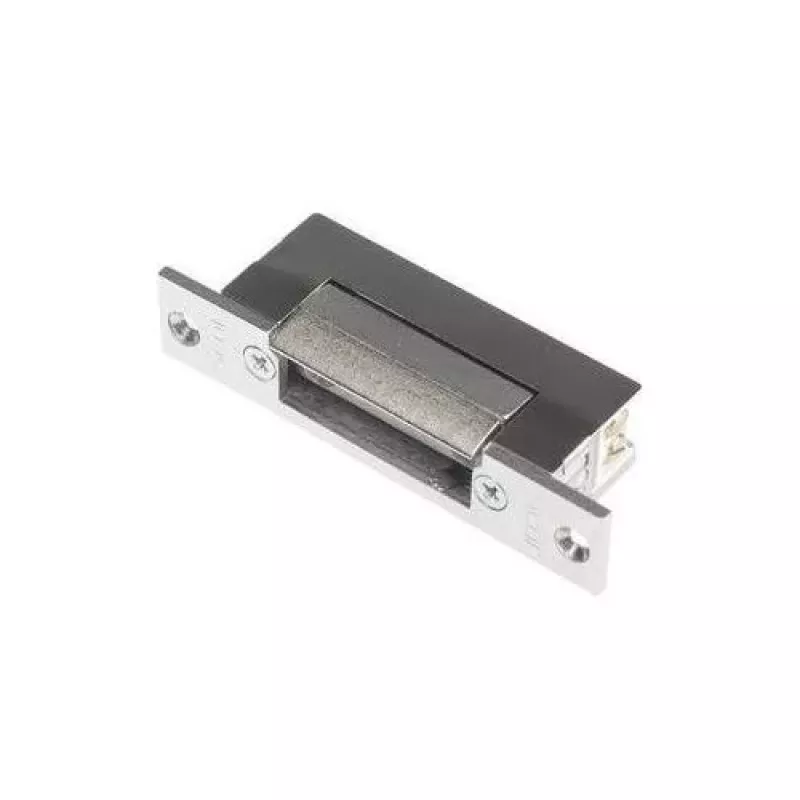

The SCOT ES-S12AC/DC-B PROFI is a symmetrical electric strike with a mechanical lock, designed for left- or right-handed doors. It operates on 8–16V AC/DC and provides a holding force of 3500 N. The strike includes a mechanical lock switch that can be set to OPEN or CLOSED, and features latch adjustment of 0–4 mm.

Key features

• Symmetrical design for left or right door mounting
• Mechanical lock switch (OPEN/CLOSED)
• Latch adjustment: 0–4 mm
• Universal power supply: AC or DC
• Standard mounting strip included (110 mm)

Specifications

• Brand: SCOT
• MPN: ES-S12AC/DC-B PROFI
• Type: Standard (NC)
• Symmetrical: Yes
• Supply voltage: 8–16V AC/DC
• Holding force: 3500 N
• Max. preload on latch: 8V AC: 60N, 8V DC: 10N; 12V AC: 150N, 12V DC: 10N; 16V AC: 150N, 16V DC: 10N
• Current consumption: 8V AC: 310mA, 8V DC: 360mA; 12V AC: 470mA, 12V DC: 550mA; 16V AC: 620mA, 16V DC: 730mA
• Coil resistance: 22 Ohm
• Latch adjustment: 0–4 mm
• Lock: Yes
• Mounting strip: 110 mm (included)
• Operating temperature: -15 to +40 °C

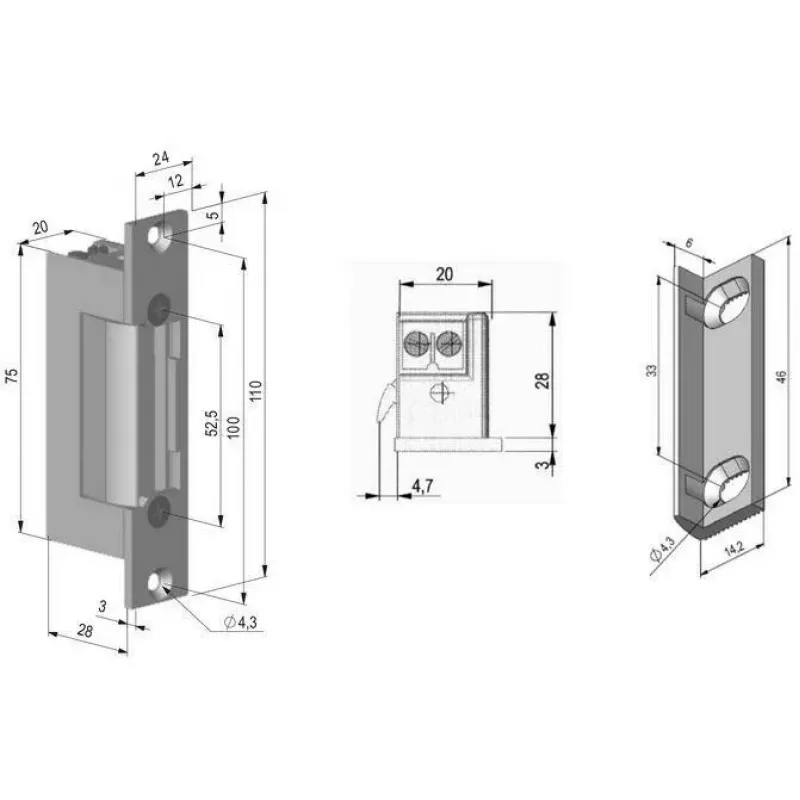

• Dimensions (W x H x D): 20.5 x 75 x 28 mm
