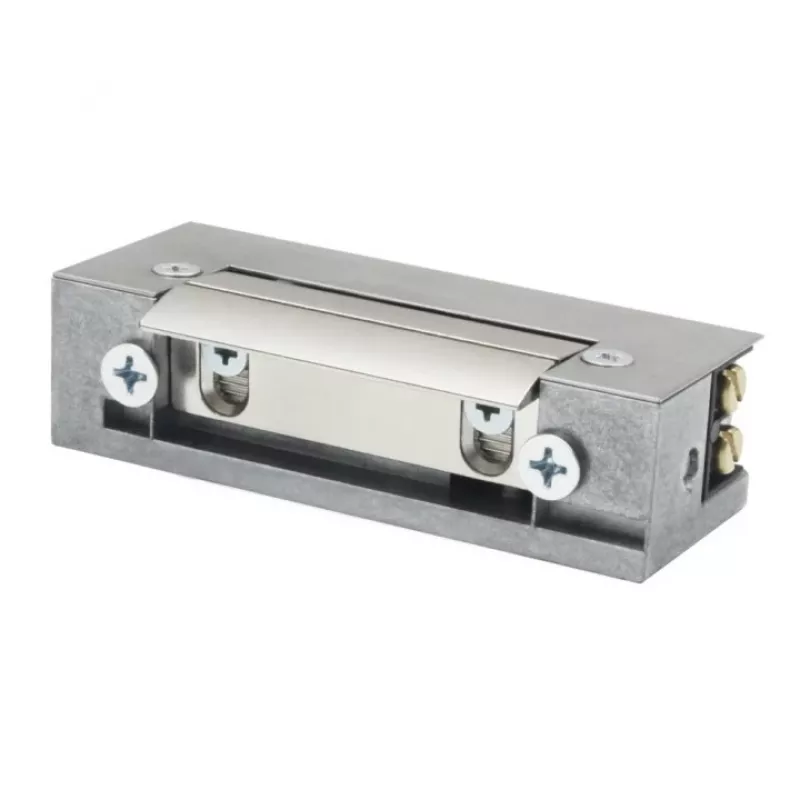

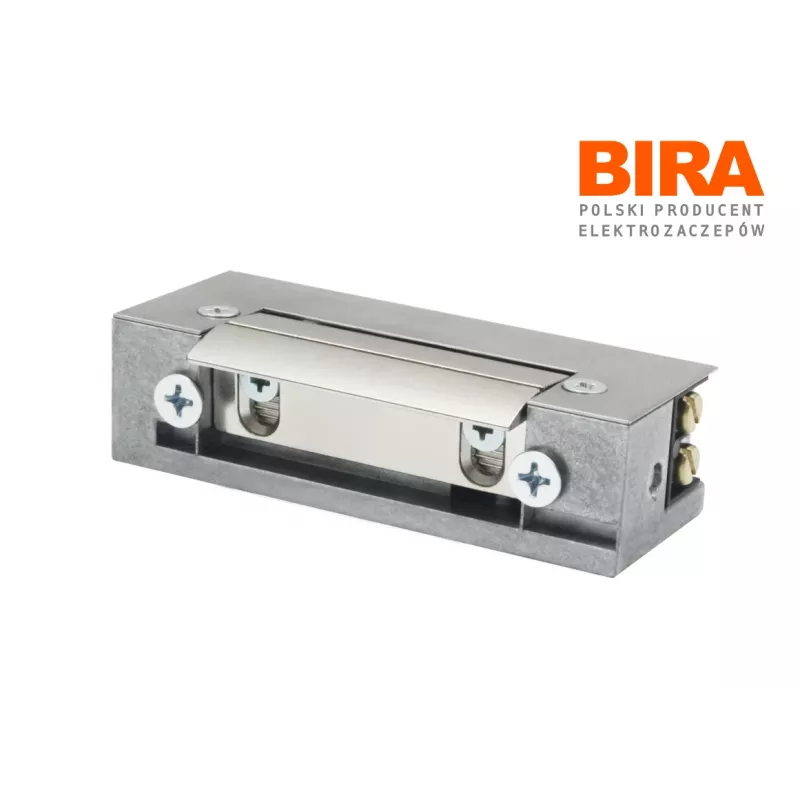

BIRA HARTTE S12N Fechadura elétrica, série S, 12V DC, de baixo consumo

The BIRA HARTTE S12N is a low-current electric strike from the S series, designed for 12V DC operation. It features a symmetrical, universal design suitable for both left- and right-handed doors, with a normally closed (NC) working type.

Key features

• Universal for left- and right-handed doors
• Symmetrical construction
• NC (normally closed) working type
• Mechanical strength 3500N (350kg)
• 200,000 opening cycles
• Strike with 4 mm adjustment

Specifications

• Brand: BIRA
• MPN: S12N
• Model: S12N
• Series: S
• Voltage: 12V DC
• Current consumption DC: 320 mA
• Voltage tolerance: 10-14 V
• Resistance: 38 Ohm

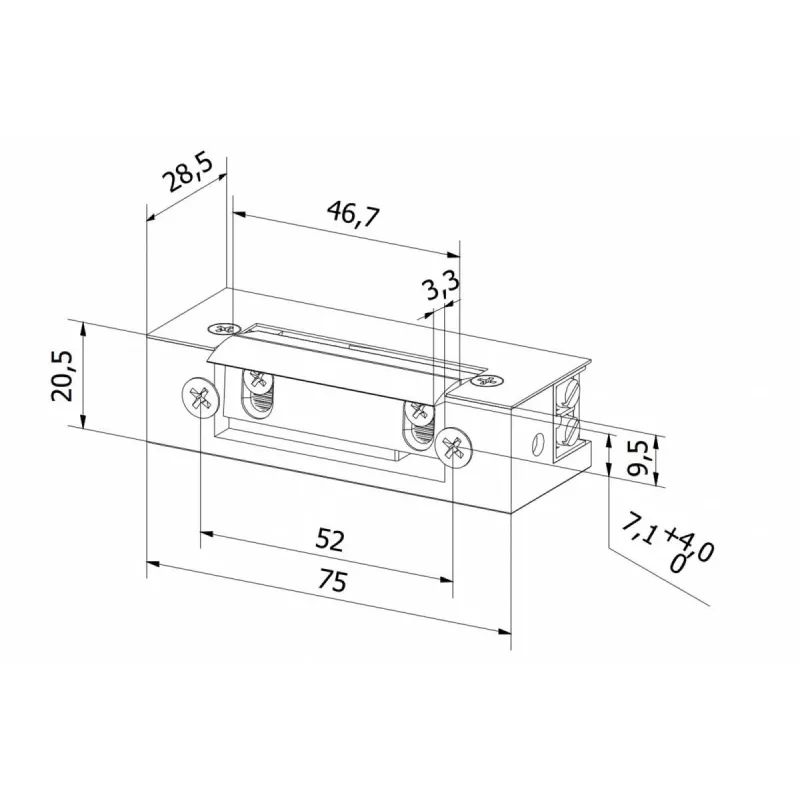

• Dimensions (W x H x D): 20.5 x 75 x 28.5 mm
• Continuous operation under current (100% ED): no
