Abridor elétrico de porta BIRA HARTTE XS12R-B série XS 12V DC reversível reforçado

The BIRA Electric Strike HARTTE XS12R-B is a high-quality, reinforced electric strike from the HARTTE XS Series, designed for professional access control and security door applications. Operating at 12V DC with a current consumption of 280 mA, this versatile strike offers configurable fail-secure (NC) or fail-safe (NO) operation, making it suitable for a wide range of security requirements. Its reversible handing allows for left or right door compatibility, and the reinforced construction ensures durability and reliability.

Advantages

This electric strike features a robust holding force of 5000 N (500 kg) and a durability of 300,000 cycles, ensuring long-lasting performance. The adjustable latch (3mm) provides flexibility during installation, and the impulse release mechanism ensures quick and secure operation. The zinc alloy body and stainless steel faceplate offer excellent corrosion resistance and strength.

Suitable for

• Access control systems
• Intercom systems
• Security doors
• Commercial and residential buildings

Key specifications

• Operating Voltage: 12V DC
• Current Consumption: 280 mA
• Operation Mode: Fail-secure (NC) / Fail-safe (NO) Configurable
• Handing: Reversible (Left/Right Door Compatible)
• Holding Force: 5000 N (500 kg)
• Durability: 300,000 cycles
• Body Material: Zinc Alloy
• Faceplate Material: Stainless Steel
• Installation Type: Mortise / Flush Mount
• Adjustable Latch: Yes (3mm)
• Operating Temperature: -10°C to +50°C
• Faceplate Dimensions (L x W): 160 x 22 mm

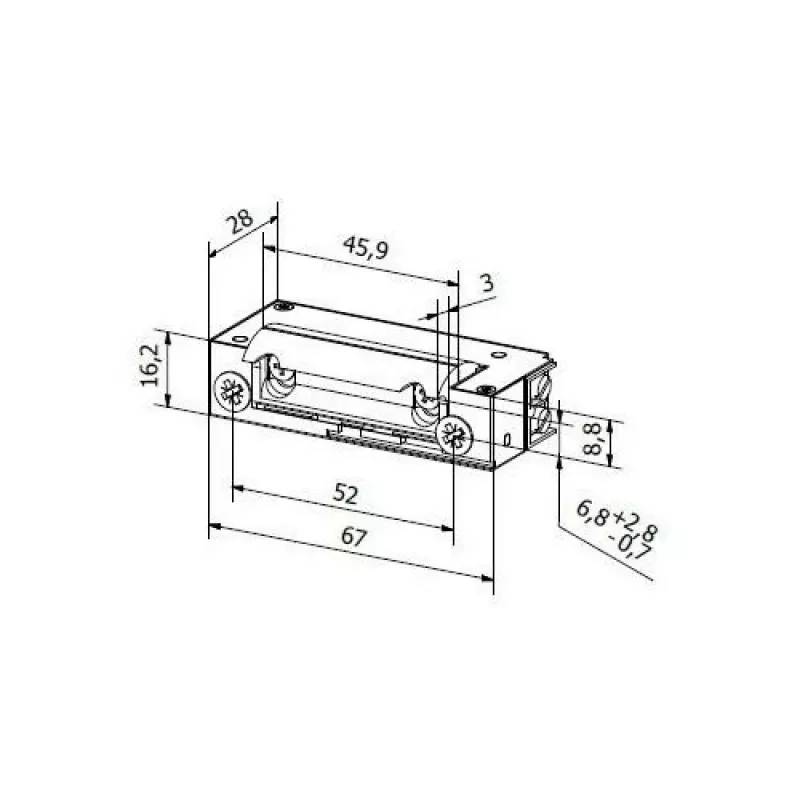

• Body Dimensions (L x H x D): 67 x 28 x 21 mm
• Series: HARTTE XS Series
• Release Mechanism: Impulse Release
• Reinforcement: Reinforced Construction
• Mounting Orientation: Vertical or Horizontal

Recommendations

For optimal performance, ensure proper alignment of the strike with the latch and use a suitable power supply. This electric strike is ideal for new installations or retrofitting existing doors.
