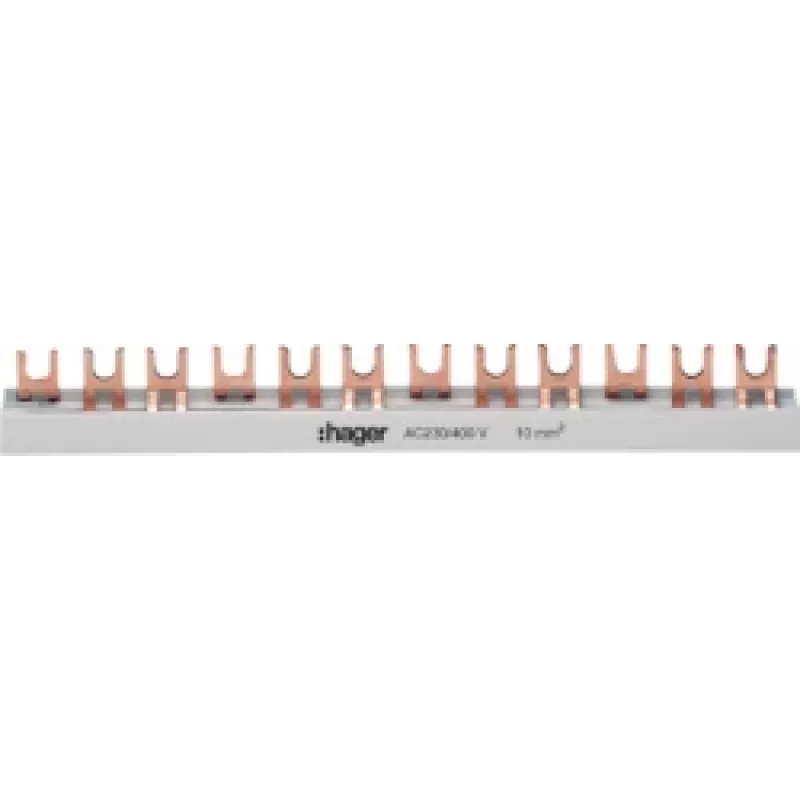

Acessório para disjuntores Hager KDN363B — barra de ligação/barramento trifásico, para 57 módulos

Hager KDN363B is a circuit breaker accessory designed as a 3-phase connection rail (busbar) for distribution boards with up to 57 modular positions. It provides a prefabricated conductive link between breakers to facilitate three-phase power distribution and reduce wiring time during installation. The product is intended for use in residential and light-commercial electrical panels where standardized modular breakers are mounted side by side.

Advantages

The connection rail offers consistent electrical contact across three phases and simplifies the common supply of multiple breakers without individual conductor runs. Its modular length matches enclosures with up to 57 module spaces, reducing the need for custom busbar fabrication. The accessory is compatible with Hager modular devices and is intended to streamline installation while maintaining an organized panel layout.

Suitable for (tasks / use cases)

When it may not be suitable

This connection rail is intended for use with modular breakers and enclosures compatible with a 57-module length; it may not be appropriate for custom panels, non-modular switchgear, or installations requiring bespoke busbars with different mechanical layouts. For applications requiring higher current ratings, different phase spacing, or additional protective features, a different busbar design or a dedicated distribution solution may be necessary.

Key specifications

How to use

Mount the Hager 3-phase connection rail across the row of modular breakers in a distribution board with up to 57 module positions, following the enclosure manufacturer's mounting guidelines and Hager compatibility recommendations. Ensure all breakers are in the OFF position and the supply is isolated before installing. Position the rail so that its contact points align with the breaker terminals, secure it per the panel design, and verify mechanical stability and electrical continuity before restoring power. Installation should be performed by a qualified electrician in accordance with local electrical codes.

What to consider before purchase

Recommendations

Use the Hager KDN363B busbar in standard modular panels to reduce wiring time and maintain uniform connections. Always isolate power before fitting, verify alignment with breaker contacts, and perform continuity and insulation checks after installation.
