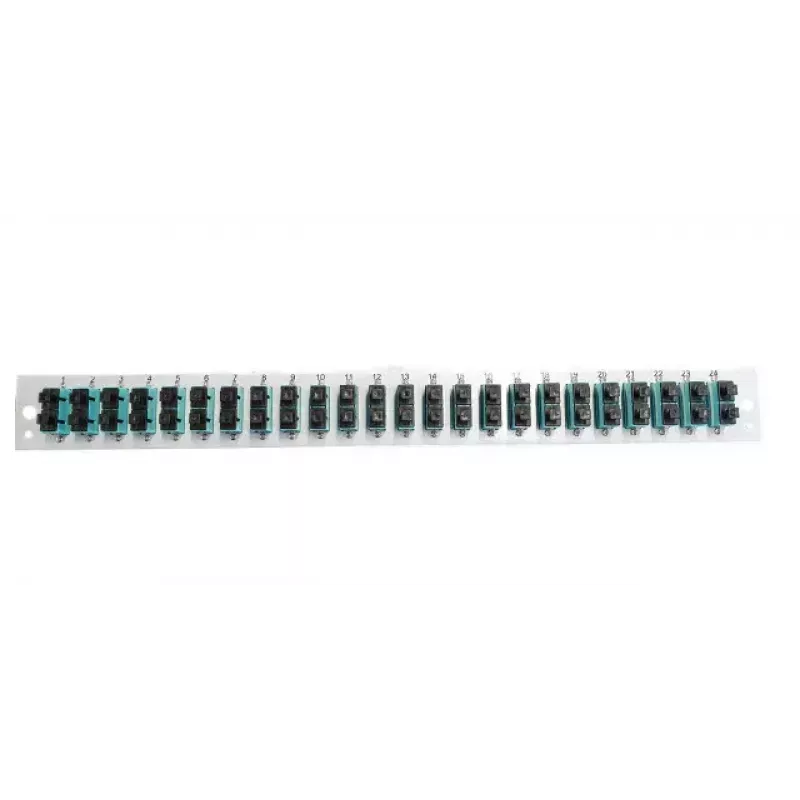

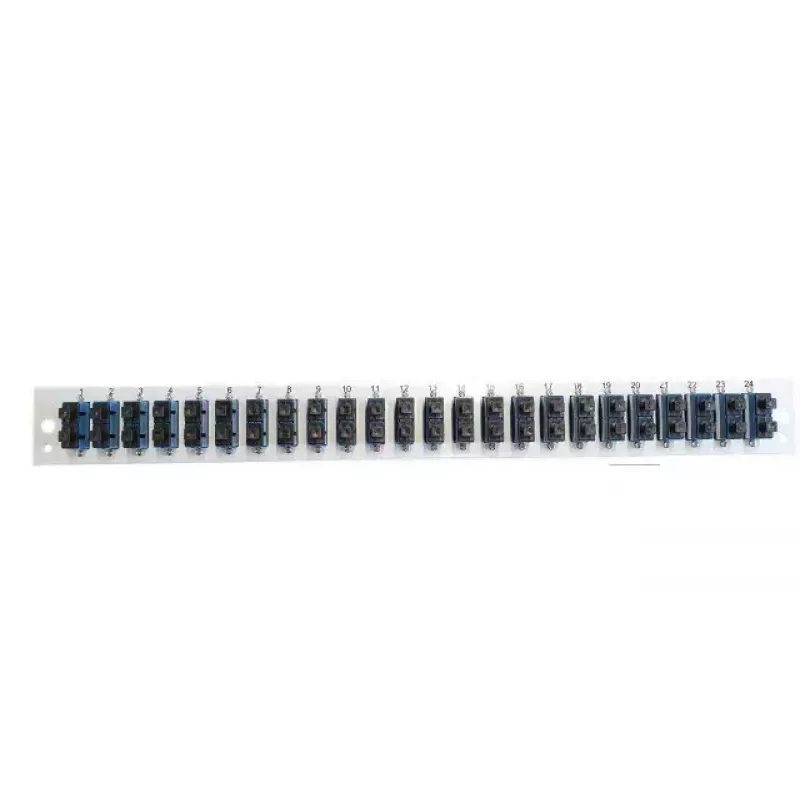

Acessório para patch panel EFB Elektronik SB-FP-24SC-D-V-OM3 — montagem em rack 1U, 432×13×43,5 mm, cinzento

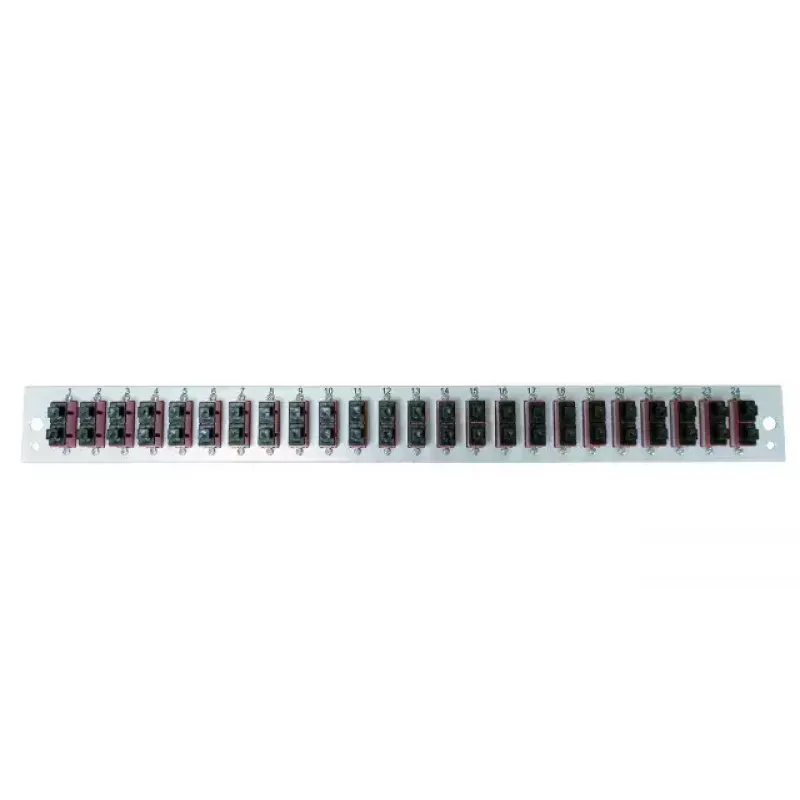

Front panel for 19" splice boxes designed for use with SC duplex adapters in OM3 fibre category. The EFB Elektronik SB-FP-24SC-D-V-OM3 is a 1U rack-mount accessory in grey, intended to fit standard 19-inch racks and to provide a clean, organised front interface for splice boxes using SC duplex connectors.

Advantages

The front panel supports up to 24 SC duplex adapter positions and is built for rack mounting with a 1U height, offering a low-profile 43.5 mm tall and 13 mm deep form factor. Its grey finish matches typical rack equipment and it is compatible with OM3 multimode fibre systems, providing consistent alignment and protection for installed adapters.

Suitable for

• Organising SC duplex connections in 19" splice boxes
• OM3 multimode fibre patching and splice installations
• Rack-mounted telecommunication and data centre fibre panels

Key specifications

• Manufacturer: EFB Elektronik
• Model / MPN: SB-FP-24SC-D-V-OM3
• EAN: 4049759258610
• Mounting: 19" rack mount
• Rack units: 1U
• Compatible adapter type: SC duplex
• Fibre category: OM3 (multimode)
• Colour: Grey
• Dimensions (W×D×H): 432 mm × 13 mm × 43.5 mm

How to use

Install the panel into a standard 19" rack using the 1U mounting points. Fit SC duplex adapters into the panel's cutouts and secure them according to the adapter manufacturer's instructions. Route and terminate fibres or patch cords through the splice box behind the front panel so connections are accessible from the front for patching or maintenance.

Recommendations

Use only SC duplex adapters and OM3 multimode fibre components to ensure compatibility. Follow rack and fibre handling best practices: avoid sharp bends, label connections, and secure cables to prevent strain on splices and adapters.
