ACT Adaptador Heavy-Duty montável conector fêmea RJ-45 para conector fêmea D-Sub de 9 pinos

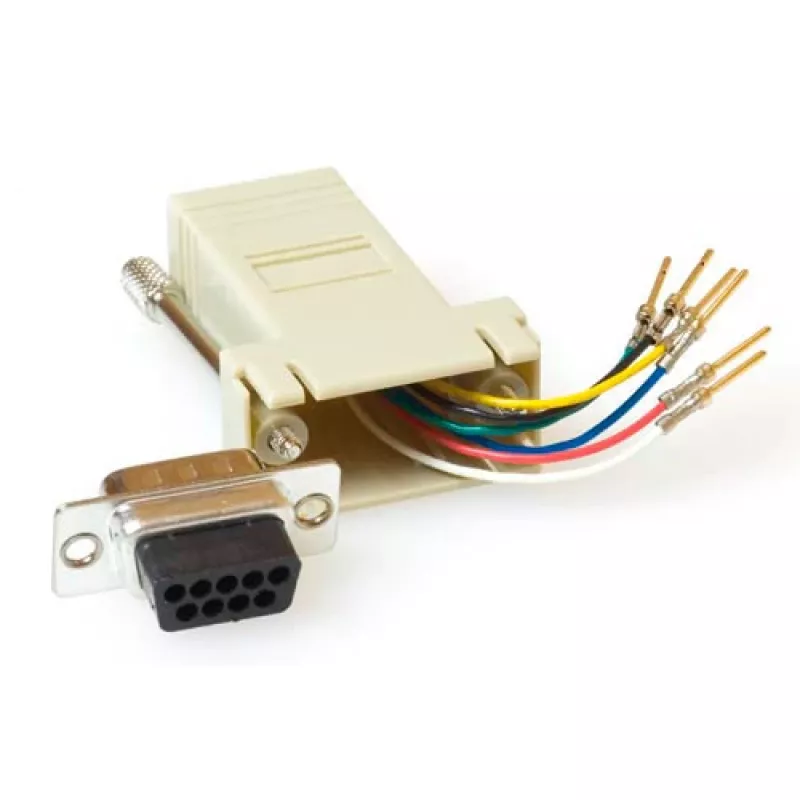

The ACT Mountable Heavy Duty Adapter RJ-45 Female to 09 pole D-Sub Female (MPN: TD09F8) is a combined connector adapter that houses a D-sub connector and RJ-12/RJ-45 female contacts in one mounting-capable enclosure. The adapter has fixed wiring on the RJ-12/RJ-45 side with crimp contact wire-ends that can be inserted into the desired positions of the 9‑pole D‑Sub connector without special tools. The housing includes locking screws for secure attachment of the D‑Sub end and a robust beige/metallic finish suitable for standard industrial and networking environments.

Advantages

This adapter provides a compact, mountable solution for converting between 09‑pole D‑Sub female and RJ‑45/RJ‑12 female interfaces while allowing flexible placement of crimped wire ends into the D‑Sub shell. The fixed RJ side reduces the need for onsite rewiring, and the locking screws ensure a stable mechanical and electrical connection. The heavy‑duty housing offers increased durability and compatibility with standard mounting arrangements.

Suitable for

• Connecting telecommunication or data equipment that require D‑Sub to RJ‑45/RJ‑12 interfacing
• Field installations where crimp contacts must be positioned into a 9‑pole D‑Sub shell without tools
• Mounted panel interfaces and industrial networking applications

Key specifications

• Brand: ACT
• MPN: TD09F8
• EAN: 8716065133011
• Connector 1: 9‑pole D‑Sub Female
• Connector 2: RJ‑45 / RJ‑12 Female (fixed wiring with crimp contact wire‑ends)
• Product colour: Beige, Metallic
• Mounting: Mountable housing with locking screws for D‑Sub

How to use

Mount the adapter in the desired panel or housing using the available mounting points. Insert the crimped wire ends from the RJ‑12/RJ‑45 side into the corresponding positions of the 9‑pole D‑Sub shell according to your wiring scheme; no special tools are required to place the crimp contacts. Secure the D‑Sub connector with the integrated locking screws to ensure a firm connection. Connect the RJ‑45 or RJ‑12 cable to the female socket as needed.

Recommendations

Verify pin assignment and wiring scheme before inserting crimp contacts into the D‑Sub shell to prevent incorrect connections. Use appropriate crimp contacts compatible with the adapter and tighten the locking screws to the recommended torque for stable mechanical and electrical contact.
