Adaptador AT InLine 9 pinos Sub-D macho / 25 pinos Sub-D macho curto

Short 25-pin Sub-D male to 9-pin Sub-D male adapter with a fixed pin assignment (9→25): 1→8, 2→3, 3→2, 4→20, 5→7, 6→6, 7→4, 8→5, 9→22; grounds tied GND→GND. The compact InLine AT Adapter (model 31219L) provides a space-saving solution for connecting equipment with 9-pin and 25-pin D-sub interfaces. It has a silver finish and a durable build suitable for a variety of environments.

Advantages

The adapter offers a short form factor that reduces cable clutter and simplifies connections between devices with differing Sub-D pinouts. Fixed pin mapping is clearly defined to ensure predictable signal routing. Durable construction and a standard 9-pin and 25-pin Sub-D male configuration make the adapter compatible with many legacy and industrial devices.

Suitable for

• Connecting a 9-pin D-sub serial port to a 25-pin D-sub connector when the specified pin mapping is required
• Legacy computer and industrial equipment with male Sub-D interfaces
• Compact installations where a short adapter is preferred

Key specifications

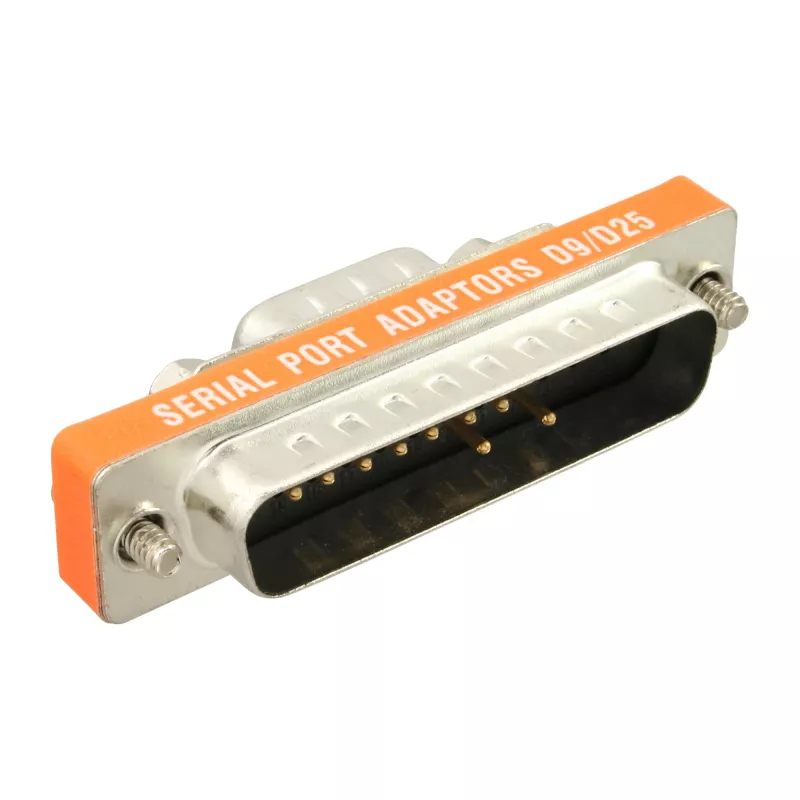

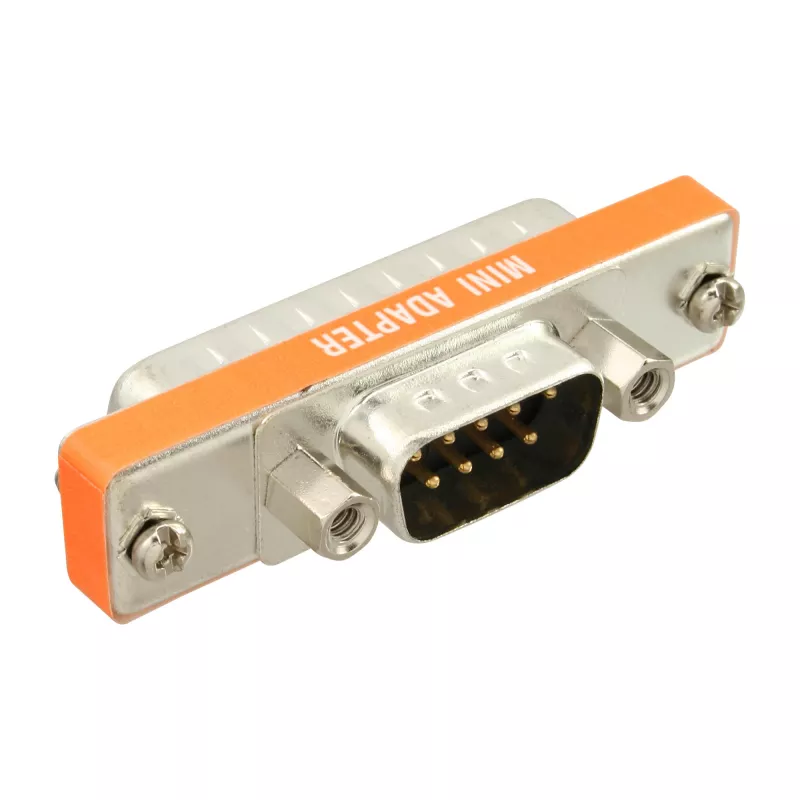

• Connector A: 9-pin Sub-D male
• Connector B: 25-pin Sub-D male (short type)
• Pin assignment (9→25): 1→8, 2→3, 3→2, 4→20, 5→7, 6→6, 7→4, 8→5, 9→22; GND→GND
• Product colour: Silver
• Manufacturer: InLine, MPN 31219L, EAN 4043718074372
