Adaptador coaxial DeLOCK 88826

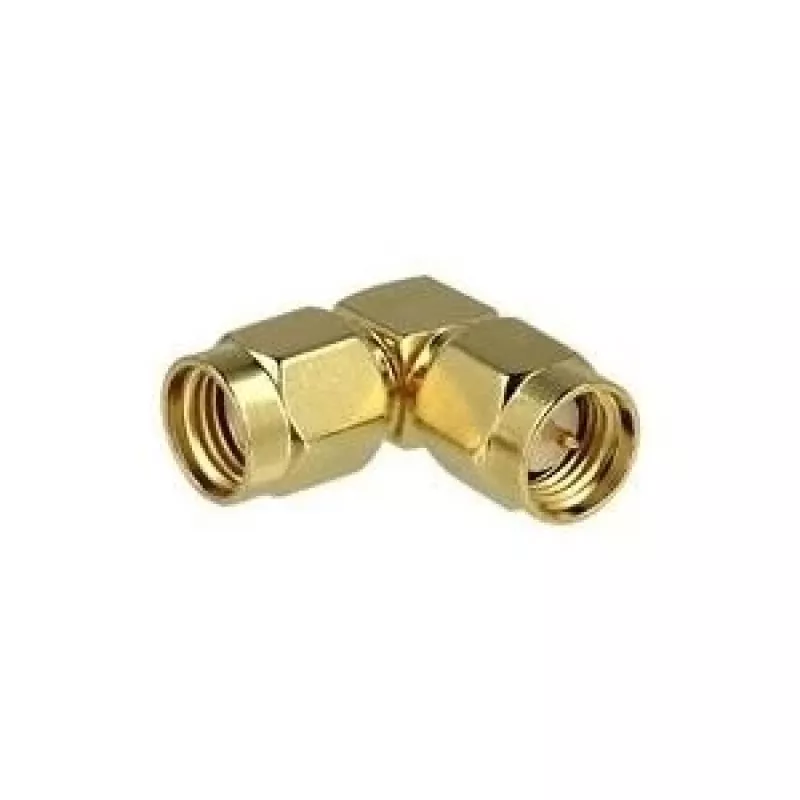

The DeLOCK 88826 coaxial connector is an RP-SMA male to SMA male right-angle adapter designed to connect radio frequency components and antennas. It provides a 50 Ohm impedance connection in a compact gold-plated brass body with gold-plated center pin, supplied individually in a polybag for convenient use in installations and repairs.

Advantages

The adapter uses RP-SMA plug to SMA plug configuration with a 90° right-angle orientation, reducing strain on cables where space is limited. Gold-plated brass construction on both body and pin improves corrosion resistance and ensures consistent electrical contact. Its compact dimensions allow installation in tight spaces and maintain the required 50 Ohm impedance for RF applications.

Suitable for

Key specifications

How to use

Align the RP-SMA plug with the mating RP-SMA jack and the SMA plug with the mating SMA jack, then gently push and screw the connector into place as required by the mating interfaces. Avoid over-tightening; hand-tighten until secure or use a torque wrench to the manufacturer's recommended torque for SMA/RP-SMA connectors if precise tightening is needed. Ensure connectors are clean and free of debris before mating to maintain signal quality.

Recommendations

For reliable long-term performance, avoid repeated unnecessary connect/disconnect cycles, protect the connector from moisture and mechanical shock, and verify 50 Ohm system compatibility when integrating into RF chains.
