Adaptador de alimentação para placa-mãe InLine 12V ATX1.3 conector fêmea 4 pinos / ATX2.0 ficha macho 8 pinos

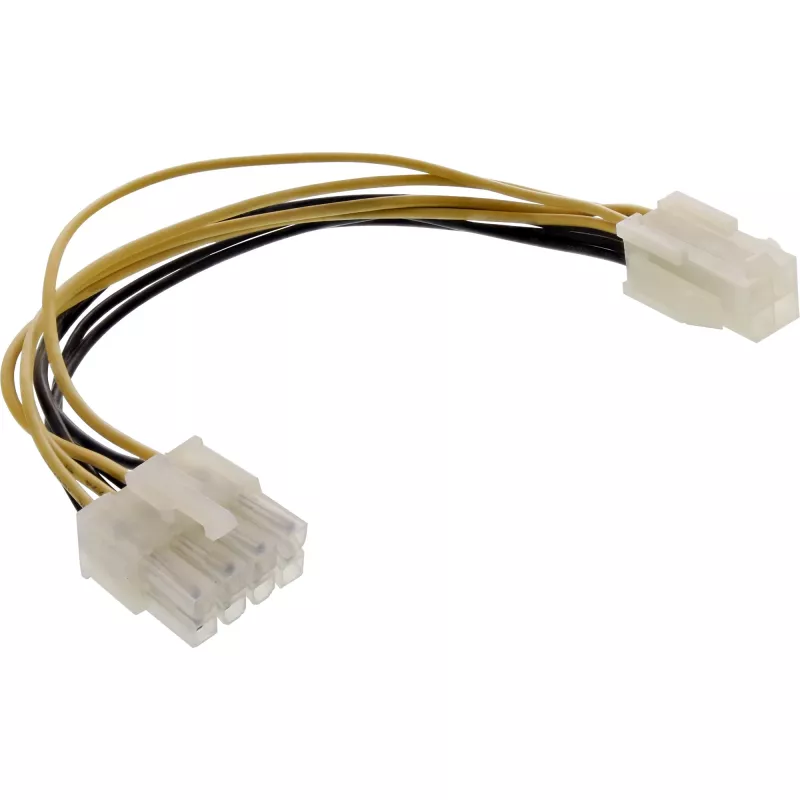

The InLine Mainboard Power Adapter converts a standard 4-pin 12V ATX1.3 power jack to an 8-pin ATX2.0 plug, allowing compatibility with motherboards that require an 8-pin (including EPS) power connection. The adapter cable is 0.2 m long and delivers the necessary 12V supply for CPU/motherboard power rails. The product is multicolour and small in size, intended for internal PC power routing and upgrades.

Advantages

This adapter enables use of an existing 4-pin power connector with motherboards that require an 8-pin input, avoiding the need for a new power supply. The short 0.2 m cable provides a neat internal routing option and reduces clutter. Compatible with ATX1.3 4-pin jacks and ATX2.0 8-pin plugs, it supports EPS-style connections used on modern mainboards.

Suitable for

• Converting an ATX1.3 4-pin power jack to an ATX2.0 8-pin plug
• Upgrading older power supply connections to fit motherboards with 8-pin CPU/EPS sockets
• Short internal cable routing inside PC chassis

Key specifications

• Cable length: 0.2 m
• Connector 1: 4-pin (jack)
• Connector 2: 8-pin (plug, ATX2.0 / EPS compatible)
• Output: 12 V
• Brand: InLine
• MPN: 26633
• EAN: 4043718047369
• Product colour: Multicolour

How to use

Power down the PC and disconnect it from mains power. Locate the 4-pin 12V ATX1.3 power jack from the power supply and firmly insert it into the adapter's 4-pin jack. Connect the adapter's 8-pin plug to the motherboard's 8-pin CPU/EPS power socket, ensuring correct orientation and full insertion. Reconnect mains power and power on the system to verify stable operation.

Recommendations

Use this adapter only with compatible 4-pin ATX1.3 power outputs and 8-pin ATX2.0/EPS inputs. Do not use if any connector pins are damaged or loose. For high-power CPUs or systems with heavy power draw, verify that the original 4-pin supply can safely handle the required current; consider using a full ATX power supply with native 8-pin outputs if necessary.
