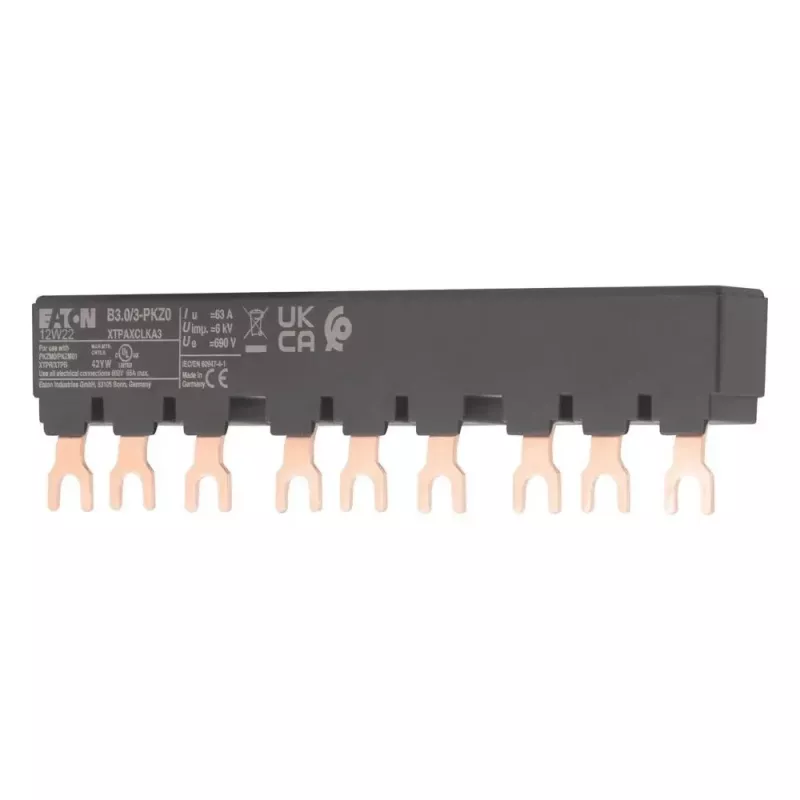

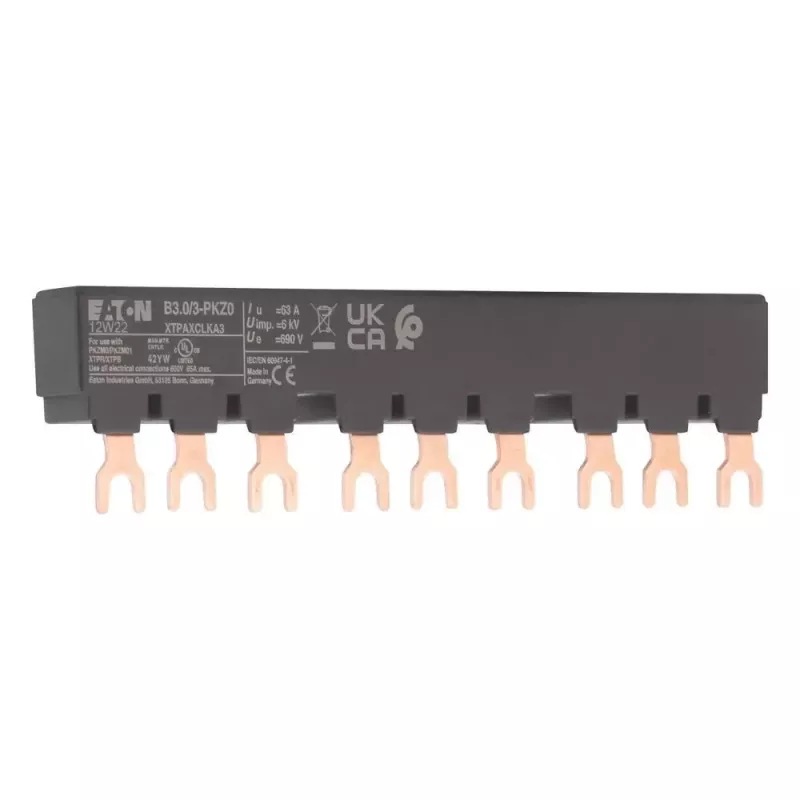

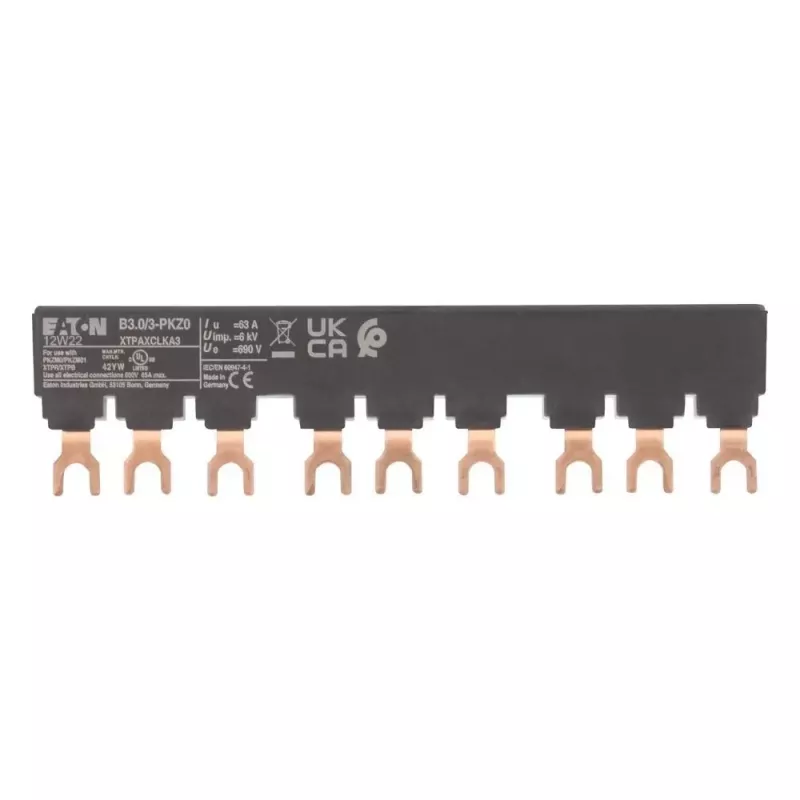

Adaptador de barramento trifásico EATON B3.0/3-PKZ0 (232289)

3-phase busbar adapter for direct mounting of Eaton PKZ0 motor protective circuit breakers onto 60 mm busbar systems. Provides a compact power distribution and connection solution for motor control applications.

Advantages

Direct plug-in design eliminates additional wiring between the busbar and the protective device. Thermoplastic insulation ensures reliable electrical isolation. Suitable for rated operational voltages up to 690 V AC.

Suitable for

• Industrial motor control panels
• Power distribution in automation systems
• Eaton xStart series assemblies

Key specifications

• Compatible devices: Eaton PKZ0 motor protective circuit breakers
• Number of poles: 3
• Rated operational voltage: 690 V AC
• Rated operational current: 32 A
• Busbar spacing: 60 mm
• Degree of protection: IP20
• Product colour: Grey/Black

Recommendations

Verify busbar thickness and spacing compatibility before installation. Use only with Eaton PKZ0 series devices.
