Adaptador de cabo Adaptador DeLOCK 65462

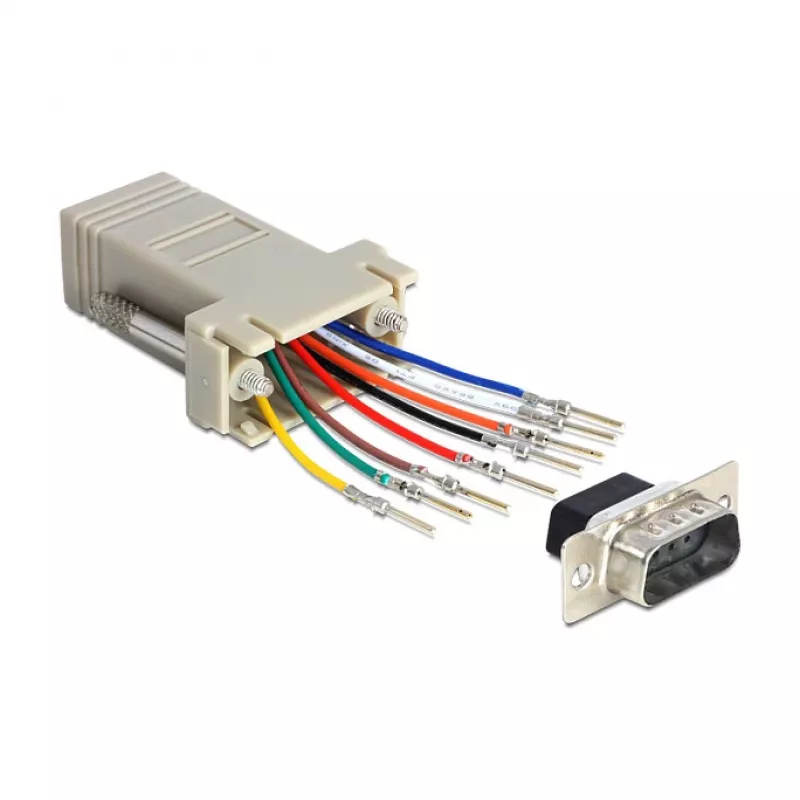

The DeLOCK 65462 cable gender changer connects a Sub-D 9 (DB9) serial connector to an RJ45 plug, enabling extension of a serial interface using a Cat5 / 5e / 6 cable. The adapter is grey, compact and designed to allow individual pin assignment by inserting the RJ45 cable wires into the desired connector holes and locking them into the housing.

Advantages

This adapter allows flexible serial-extension solutions by converting a Sub-D 9 connection to an RJ45 line. It supports custom pin assignments when used with Cat5 / 5e / 6 cable and offers a compact, easy-to-install form factor. The gender changer is suitable for quick on-site adaptations without the need for soldering or special tools.

Suitable for

• Extending RS-232/serial connections over Cat5 / 5e / 6 cable
• Connecting devices with a Sub-D 9 (DB9) port to an RJ45 cable run
• Field wiring where custom pinouts are required

Key specifications

• Connector 1: Sub-D 9 (DB9)
• Connector 2: RJ45
• Product colour: Grey
• Manufacturer: DELOCK, MPN 65462, EAN 4043619654628

How to use

Insert the RJ45 cable conductors into the appropriate holes of the adapter according to the required pinout. Ensure each wire is fully seated and then press until the contacts lock into the housing. Plug the Sub-D 9 connector into the device with the DB9 port and route the Cat5 / 5e / 6 cable to the remote RJ45 connection. Verify the pin assignment and signal integrity before use.

Recommendations

Use quality Cat5 / 5e / 6 cable and confirm the correct wiring diagram for your serial equipment. Avoid exerting excessive mechanical stress on the connector and verify connections with a continuity tester if precise pin mapping is critical.
