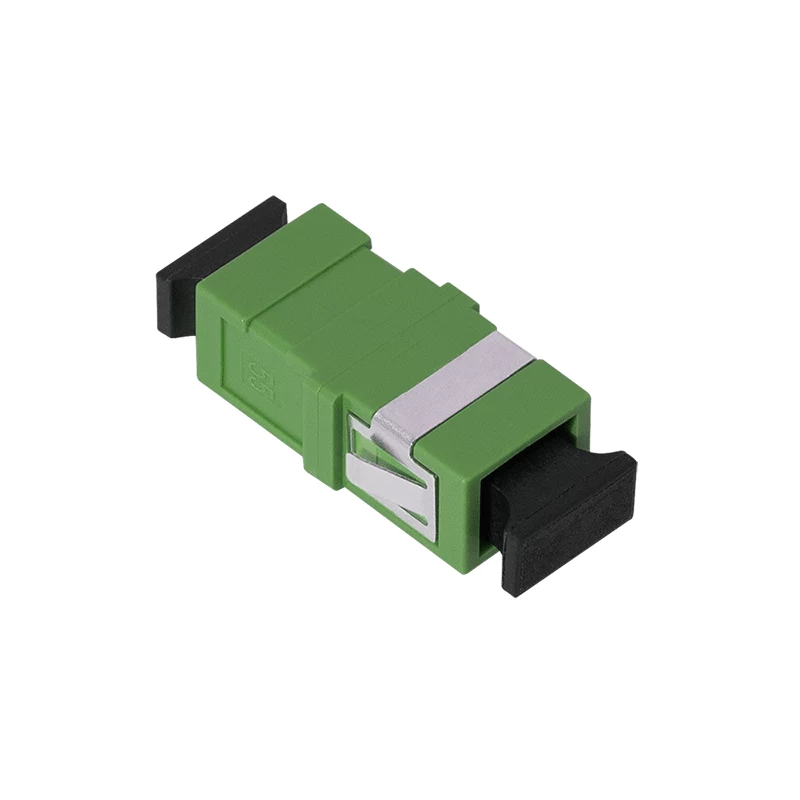

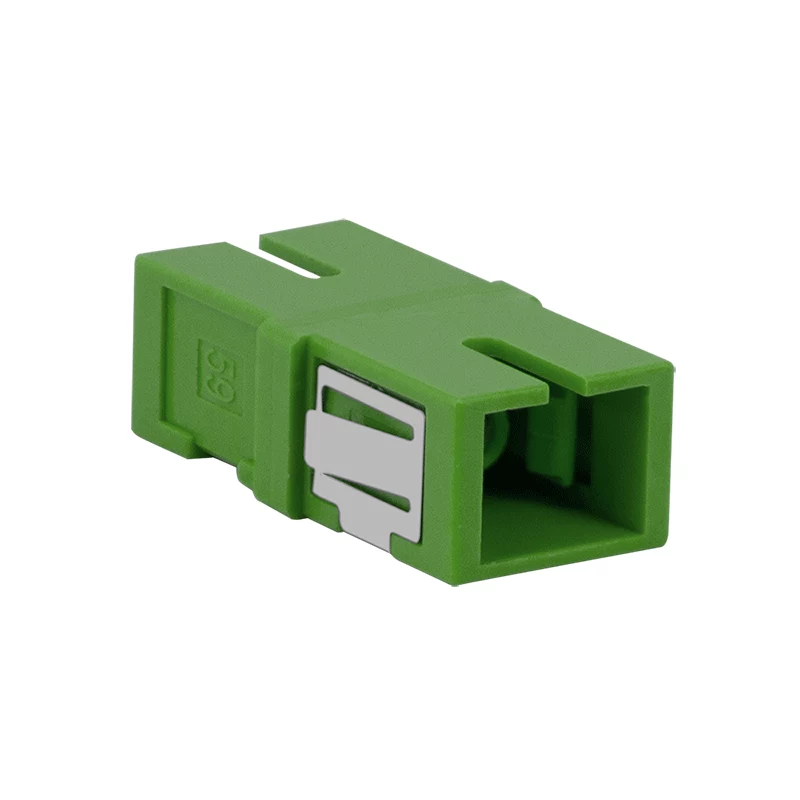

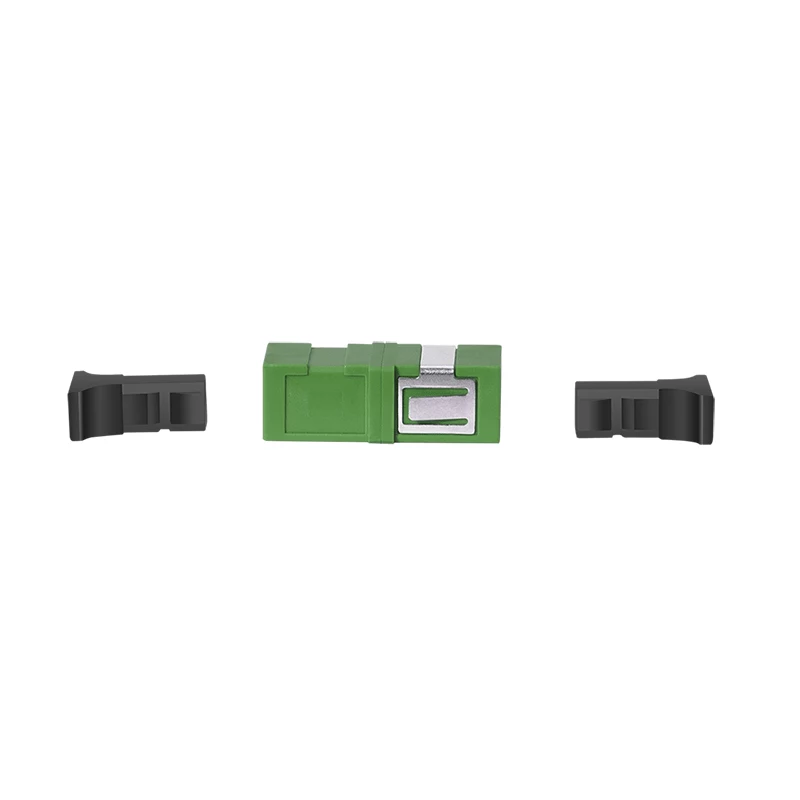

Adaptador de fibra ótica LogiLink SC simplex, verde, sem flange, pack de 12

In fiber optic networks, a reliable connection point is critical for maintaining signal integrity and minimizing loss. The LogiLink SC simplex adapter provides a precise, snap-in interface for joining SC connectors in patch panels, wall outlets, and distribution boxes. This 12-piece pack in green features an internal laser protection shutter for safety and a flange-less design for versatile mounting. Each adapter uses a ceramic ferrule for low insertion loss and high return loss, ensuring stable performance in single-mode applications.

Who is it for

Network installers, telecom technicians, and IT professionals who need dependable SC connectivity in FTTH, enterprise, or data center environments. Ideal for building patch panels, wall plates, or fiber distribution units where space and safety are priorities.

Main features

• SC simplex adapter with ceramic ferrule for low insertion loss (<0.2 dB) and high return loss (>60 dB)
• Internal laser protection shutter prevents accidental exposure to laser radiation
• Without flange for flexible snap-in mounting in standard cutouts
• Green housing for easy identification in dense installations
• Durable plastic body rated for over 500 mating cycles
• Compatible with SC/APC connectors (angled physical contact)

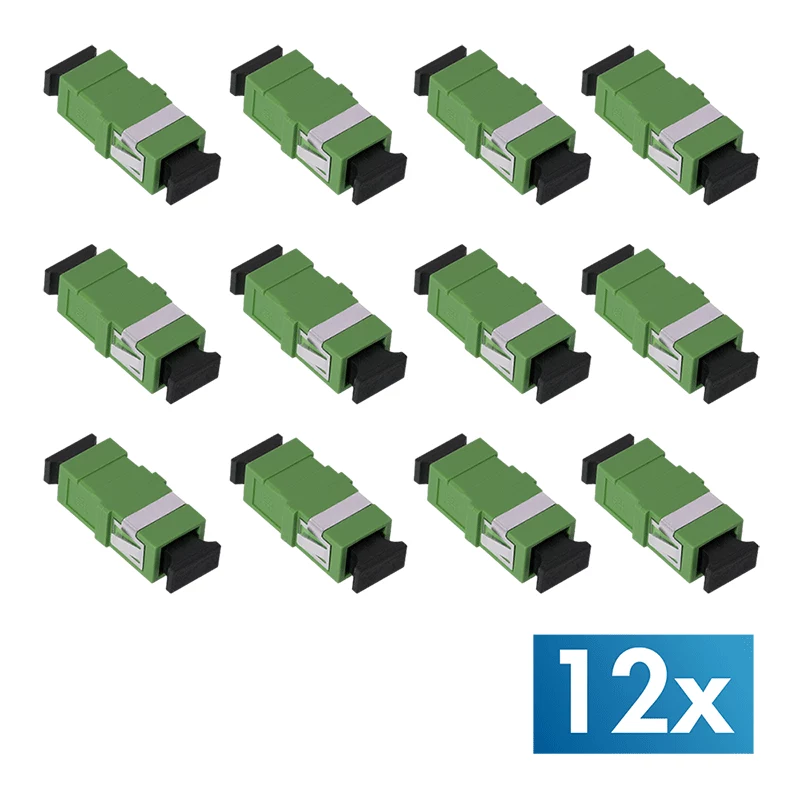

• Pack of 12 pieces for bulk installations

Specifications

• Connector type: SC
• Fiber mode: Simplex
• Ferrule material: Ceramic
• Insertion loss: < 0.2 dB
• Return loss: > 60 dB
• Durability: > 500 mating cycles
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Mounting type: Snap-in
• Housing material: Plastic
• Protection feature: Internal laser protection
• Standard compliance: RoHS, REACH
• Application: Single-mode fiber optic networks, patch panels, wall outlets
• Quantity per pack: 12

Tips

For best results, clean the adapter and connectors before mating to prevent contamination. Use dust caps when ports are not in use. The green color is often used to denote APC (angled physical contact) polish, so ensure matching connector types to avoid damage.
