Adaptador de montagem direta ABB BEA16-4 para disjuntores de proteção de motor MS116/MS132 para contatores AF09-AF16

Connect ABB MS116 or MS132 manual motor starters directly to AF09, AF12, or AF16 contactors with the BEA16-4 adapter, engineered for reliable, space-saving installations in industrial control panels. This direct mounting adapter eliminates the need for additional wiring between the starter and contactor, reducing assembly time and potential connection errors. Constructed from high-grade thermoplastic in grey, it withstands operating temperatures from -25 to +70 °C, ensuring long-term durability in demanding environments. Compliant with RoHS and free of REACH SVHCs, it meets international environmental standards.

Overview

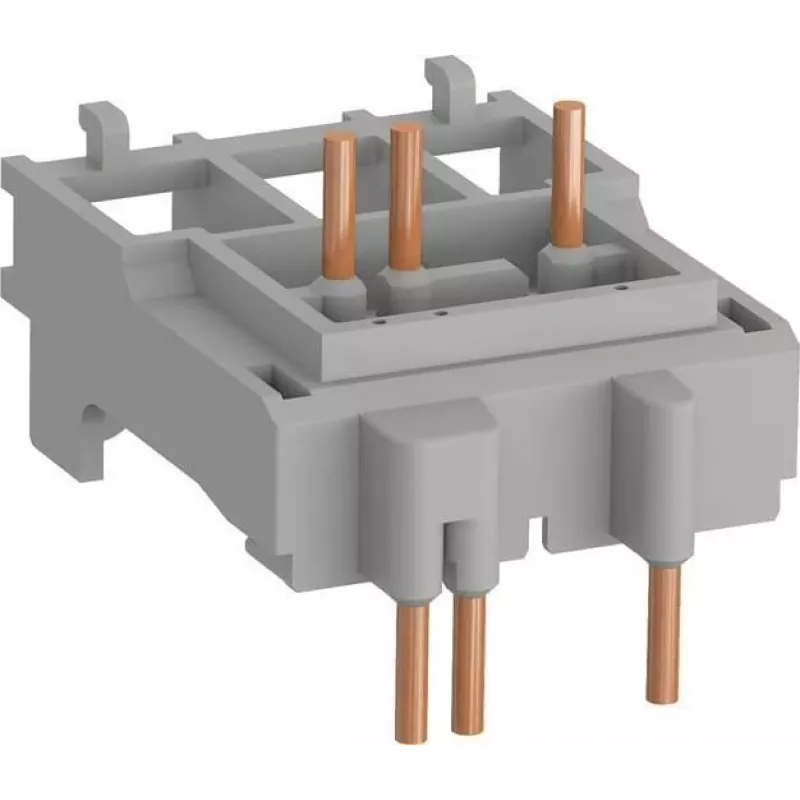

The ABB BEA16-4 is a direct mounting adapter that mechanically and electrically links ABB's MS116 and MS132 manual motor starters to AF09, AF12, and AF16 contactors. It is designed for DIN rail mounting, providing a compact and secure connection without the need for separate wiring. The adapter's robust thermoplastic housing protects internal connections from dust and accidental contact, while its grey colour blends seamlessly with standard ABB components. Each package contains one adapter, and the product is manufactured in Germany under strict quality control.

What stands out

• Direct mounting: Creates a solid, vibration-resistant link between starter and contactor, saving panel space and reducing wiring complexity.
• Broad compatibility: Works with MS116 and MS132 starters (up to 32 A) and AF09-AF16 contactors (up to 16 A), covering a wide range of motor control applications.
• Durable construction: High-grade thermoplastic housing is resistant to heat, impact, and chemicals, ensuring reliable performance in industrial settings.
• Environmental compliance: RoHS compliant and free of REACH SVHCs, making it suitable for global markets with strict environmental regulations.
• Easy installation: Simply clips onto the starter and contactor, no tools required for mounting, reducing installation time and labour costs.

Technical details

• Product type: Direct mounting adapter
• Compatibility (from): ABB manual motor starters MS116, MS132 series
• Compatibility (to): ABB contactors AF09, AF12, AF16 series
• Mounting method: Direct mounting (DIN rail compatible)
• Material: High-grade thermoplastic
• Colour: Grey
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +70 °C
• RoHS status: Compliant with EU Directive 2011/65/EU and Amendment 2015/863
• REACH status: No REACH SVHC (Substances of Very High Concern)
• Customs tariff number: 85389099
• Country of origin: Germany
• Package quantity: 1 piece
• Product ID: 1SBN090104R1000

Our verdict

The ABB BEA16-4 adapter is an essential accessory for streamlining motor control assemblies. Its direct mounting design not only saves space but also enhances reliability by eliminating loose wiring. With robust construction and full compliance with environmental standards, it is a smart choice for panel builders and maintenance professionals seeking efficient and durable solutions.
