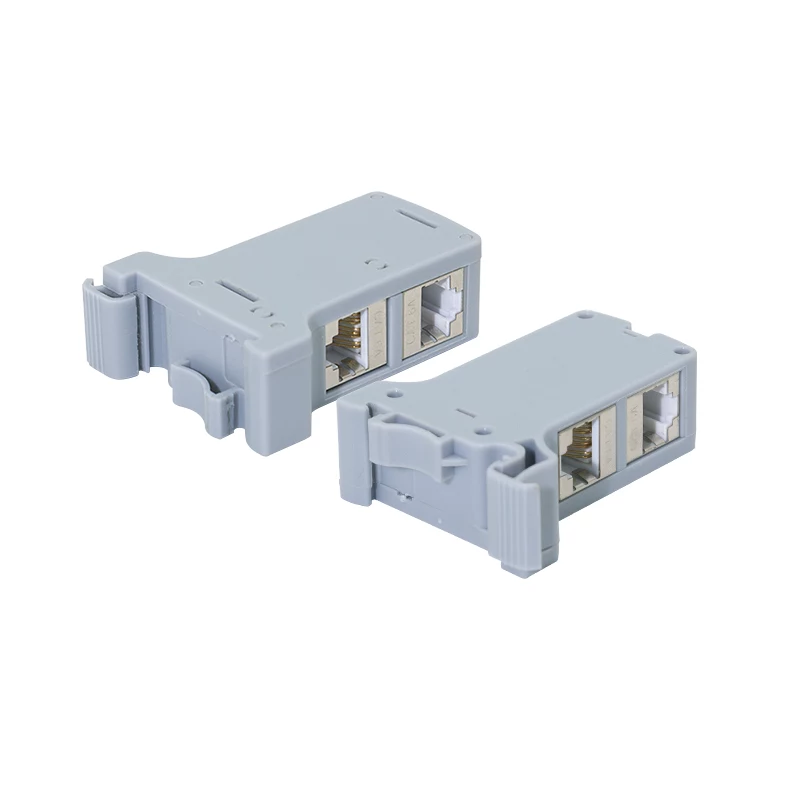

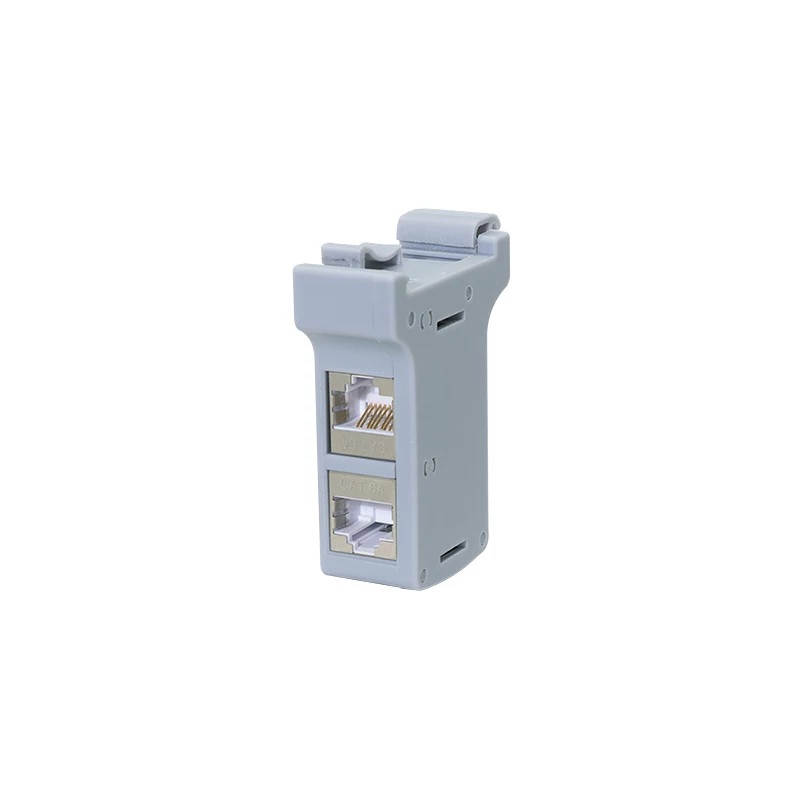

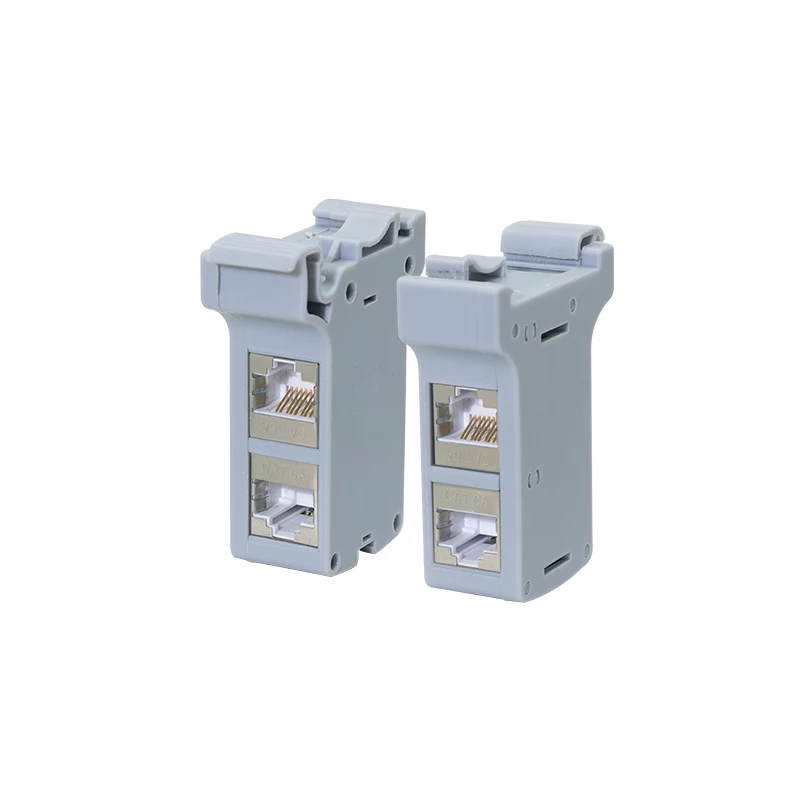

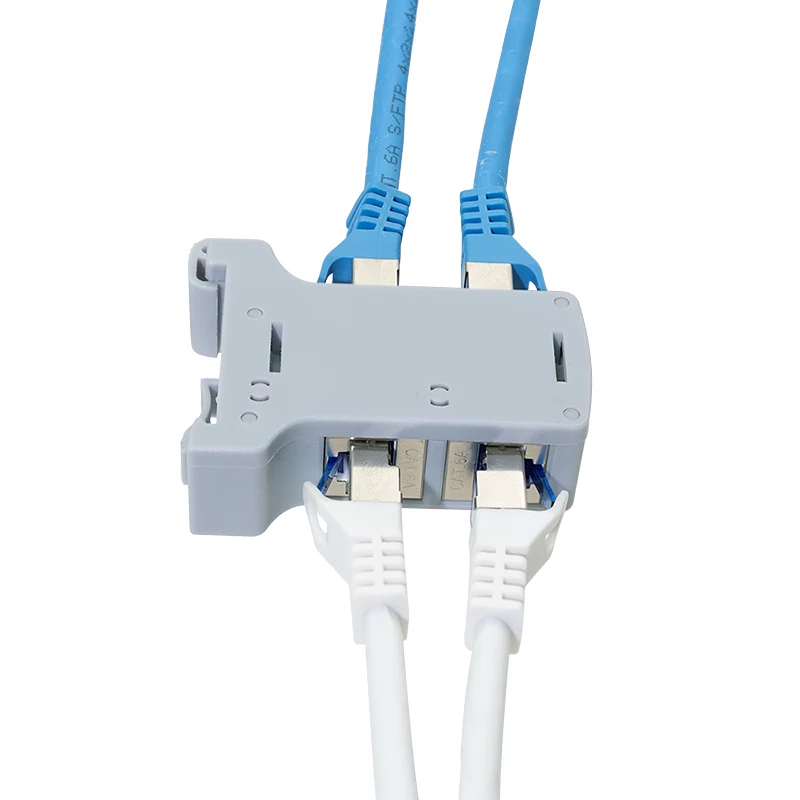

Adaptador de montagem em calha DIN LogiLink com 2 acopladores inline Cat.6A blindados, 10G, PoE++ (MP0079)

10 Gigabit Ethernet over shielded Cat.6A cabling in industrial environments—this DIN rail adapter with two gold-plated inline couplers delivers exactly that. Mounts on standard TS35 rails for tool-free snap-on installation.

Overview

The LogiLink MP0079 is a DIN rail mounting adapter equipped with two Cat.6A shielded RJ45 inline couplers. It provides a reliable, high-performance connection point for extending or joining shielded patch cables in control cabinets, industrial networks, and data centers. The adapter supports 10GBASE-T data rates and is backward compatible with Cat.6 and Cat.5e cabling, ensuring flexibility in mixed installations.

What stands out

• Two Cat.6A shielded inline couplers with gold-plated contacts for corrosion resistance and reliable signal integrity.
• Supports 10 Gigabit Ethernet (10GBASE-T) and is PoE, PoE+, and UPoE compatible for powering devices.
• Tool-free snap-on mounting on standard 35mm DIN rails (TS35) for quick installation in enclosures.
• Metal shielding and robust housing ensure durability in industrial environments with operating temperatures from -10°C to +60°C.
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards for assured performance.

Technical details

• Product type: DIN Rail Network Adapter with 2 inline couplers
• Connector type: RJ45 female-to-female inline coupler, shielded
• Network category: Cat.6A (Class EA), backward compatible with Cat.6 and Cat.5e
• Data transfer rate: 10 Gbps (10GBASE-T)
• Mounting: DIN rail TS35, snap-on
• Housing material: Metal shielding, plastic housing
• Contact plating: Gold-plated (50µ")
• PoE support: PoE, PoE+, UPoE compatible
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -10°C to +60°C
• Unit count: 1 piece

Our verdict

A robust and reliable DIN rail adapter for extending Cat.6A connections in industrial settings. Its tool-free mounting and high-performance specs make it a practical choice for control cabinets and data centers.
