Adaptador de mudança de género InLine 69927H – tipo de acoplador RJ45 (conector de cabo de rede)

Waterproof to IP68:The RJ45 connector reliably protects your network connection from water, dust, and other environmental influences.
Ideal for Gigabit and 10G Ethernet:Supports transfer rates of up to 10 Gb/s at 500 MHz bandwidth—optimal for modern networks.
Shielded connection:The full metal shielding protects your data transmission from electromagnetic interference.
Flexible use:Compatible with standard patch cables and suitable for two cable diameter ranges (1.5–4.5 mm / 4.5–7.5 mm).
Safe and quick installation:The M20 thread and tool-free screw connection ensure quick and permanently reliable installation.

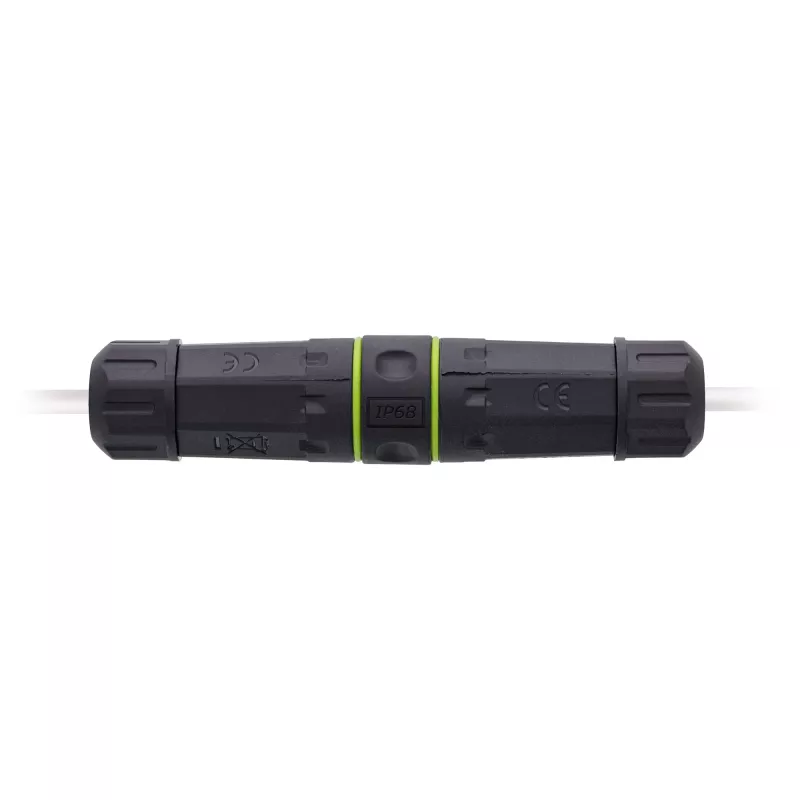

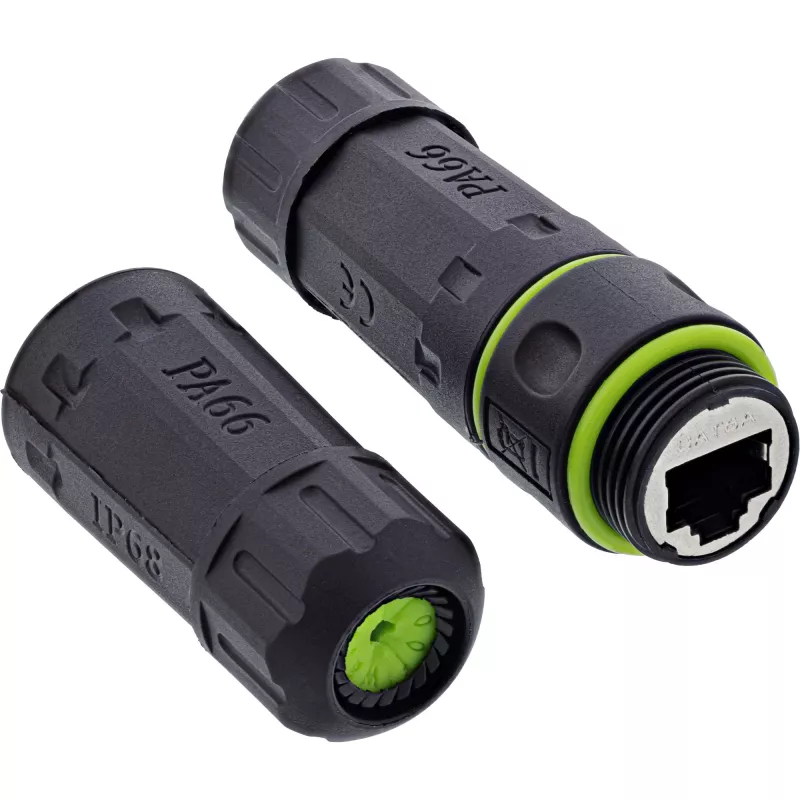

The InLine® Cat.6A patch cable coupler with two RJ45 sockets is the perfect solution for secure and weatherproof network connections indoors and outdoors. Thanks to its IP68 protection class, the coupler is particularly suitable for industrial installations, outdoor use, or use in damp and dusty environments.
The shielded coupler supports transmission rates of up to 10 Gb/s with a bandwidth of 500 MHz – ideal for applications with high performance requirements such as 10GBase-T. The module is fully shielded to effectively dissipate electromagnetic interference and maintain signal quality.

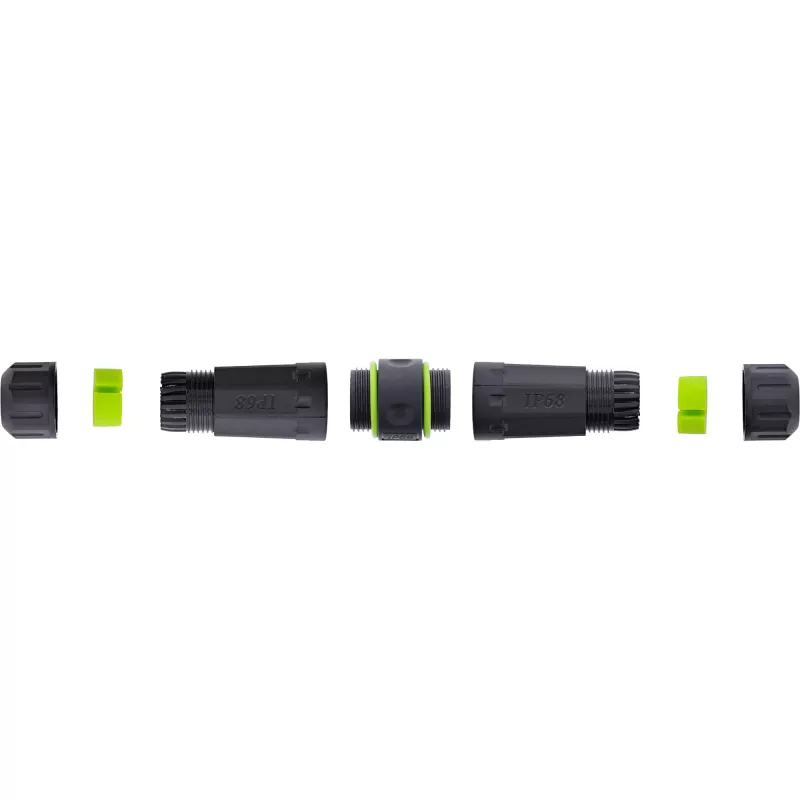

Two different cable seals make the coupling flexible for use with cable diameters from 1.5 to 7.5 mm. The M20 thread allows integration into common housing openings. Installation is tool-free using screw and sealing elements, ensuring that the connection remains mechanically stable and permanently protected.
Whether for temporary connections or as a permanent solution, the InLine® Cat.6A patch cable coupler offers reliable performance and maximum security for professional networks.

Material: Nylon (PA66)
Thread size: M20
Module: Cat.6A female/female
Shielding: Yes
Seal: Silicone
Transmission rate: max. 10 Gb/s
Transmission distance: max. 100 m
Bandwidth: 500 MHz
IP protection class: IP68
Temperature resistance: -40 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

InLine 69927H. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 28 mm, Depth: 125 mm, Height: 28 mm. Quantity per pack: 1 pc(s). Package width: 70 mm, Package depth: 140 mm, Package height: 25 mm

How to use

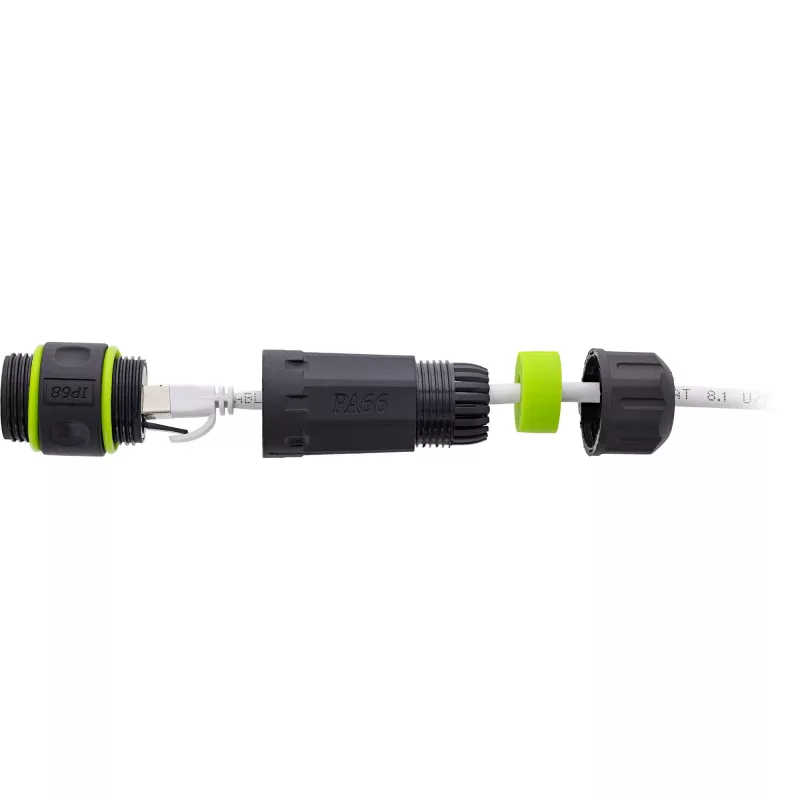

Choose the appropriate silicone seal for the cable diameter, insert the incoming cable through the chosen seal and into the coupler, then secure the assembly by screwing the M20 threaded housing together until the sealing elements compress and form a watertight fit. Plug standard RJ45 patch cables into both female sockets to connect or change cable gender. No special tools are required for the screw connection; ensure connections are tightened sufficiently to maintain IP68 protection.

Recommendations

For reliable long-term operation, use shielded patch cables and perform connections within the specified temperature and distance limits. When installing outdoors or in industrial settings, verify the seal seating and thread engagement to maintain IP68 protection and check periodically for mechanical damage.
