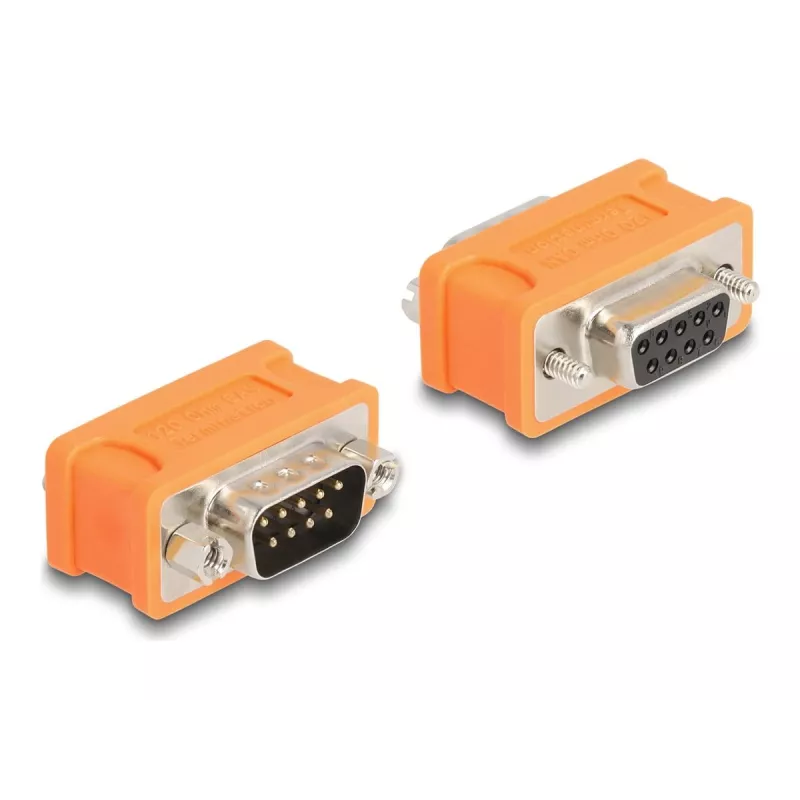

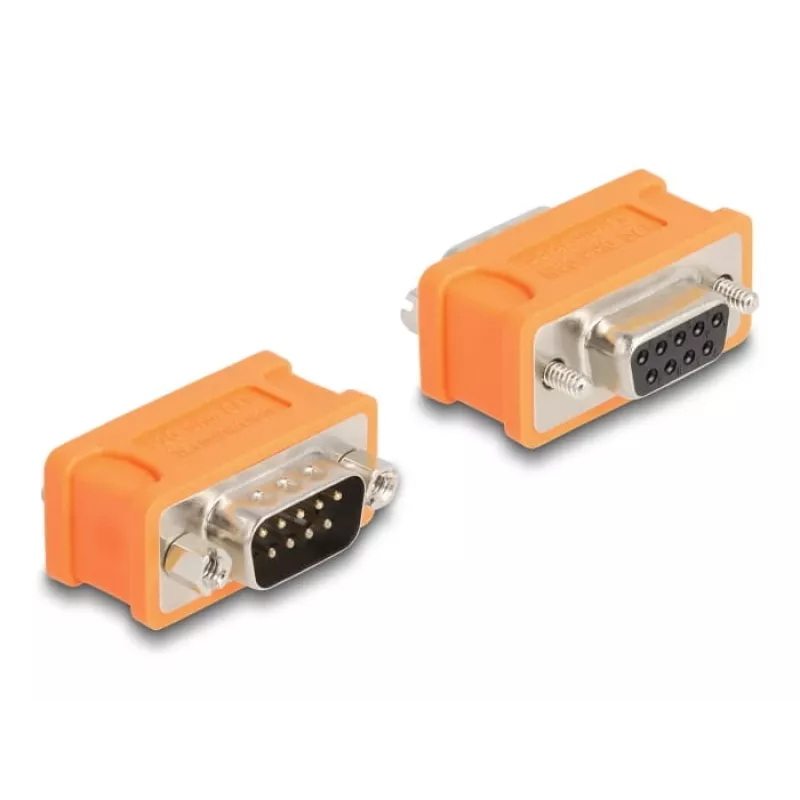

Adaptador DeLOCK D-Sub 9 CAN-Bus resistência 120 Ohm laranja

The DeLOCK D-Sub 9 CAN Bus Adapter with a built-in 120 ohms resistor provides reliable termination for CAN Bus networks. It features D-Sub 9 pin connectors on both ends and an orange housing for easy identification, allowing connection between CAN devices and integration into industrial or automotive communication systems.

Advantages

The integrated 120 ohms resistor between pin 2 and pin 7 ensures correct bus termination and helps maintain signal integrity. Matching D-Sub 9 connectors on both ends simplify compatibility with existing equipment, while the orange colour improves visual identification in wiring harnesses and control cabinets.

Suitable for

• CAN Bus network termination in industrial automation
• Automotive CAN diagnostics and repair
• Connecting CAN devices with D-Sub 9 interfaces

Key specifications

• Connector 1: D-Sub 9 pin
• Connector 2: D-Sub 9 pin
• Built-in resistor: 120 ohms between pin 2 and pin 7
• Product colour: Orange
• Brand: DELOCK
• MPN: 66741
• EAN: 4043619667413

How to use

Connect the adapter between two CAN Bus endpoints or use it at the end of a CAN segment to provide proper termination. Ensure the D-Sub 9 connectors are securely fastened to the mating ports and verify that the resistor is required for your network topology before installation.

Recommendations

Use this adapter where a permanent or temporary 120 ohms termination is needed; avoid installing multiple terminating resistors on the same bus segment. Check wiring and connector orientation before powering the CAN network.
